Electronically Controlled Proportional Valves Using Solenoid Technology

PV100 Series

PV100 Series:Electronically Controlled Proportional Valves Using Solenoid Technology

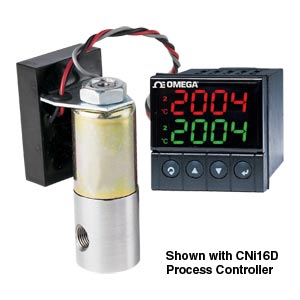

Click for larger image.

^¥ 7,130.00 PV101-MA

•	Low Power Consumption
•	100 msec Response Time at Maximum Pressure
•	Stainless Steel Wetted Parts with FKM Seals
•	12 to 24 Vdc Power
•	For Clean, Dry, Non-Corrosive Gases
View related products - Valves

The PV100 Series comprises economical proportional valves for use with gases. They combine a solenoid valve with an electronics package that digitally modulates the control signal to provide analog proportional control without the expense or complexity of stepper motors, servo valves, or other proportioning devices. The PV100 Series can be used in open- or closed-loop systems to control flow, pressure, temperature, speed, or position parameters of gases.

SPECIFICATIONS
Valve Type: 2-way normally closed
Wetted Parts: Stainless steel with FKM seals
Power: 12 to 24 Vdc
Power Consumption: 7 W maximum
Control Signals: 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA DC (specify when ordering)
Ambient Temperature Range: -10 to 50°C (14 to 122°F) media temperature
Range: -18 to 82°C (0 to 180°F)
Linear Control Range: 15 to 85% of full flow
Response Time for Complete Cycle (Off-Fully Open-Off): 40 ms @ 0 pressure; 100 ms @ max pressure
Repeatability: ±5% when in operating linear control range
Electrical Connection: 0.4 m (18") color-coded lead wires
Wiring:
   Red: DC power supply
   Gray: Control signal (+)
   Black: Common (to power and control)
Pressure Connections: 1/8 FNPT
Enclosure: General purpose, NEMA 11

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

PV101 Models with 1/32' orifice, 0.02 C_v, 200 psi max pressure

PV101-5V	17 Weeks	¥7,245.00	0 to 50,000 SCCM flow at max pressure, 0 to 5 Vdc control signal	qty.

PV101-10V	19 Weeks	¥7,430.00	0 to 50,000 SCCM flow at max pressure, 0 to 10 Vdc control signal	qty.

PV101-MA	17 Weeks	¥7,130.00	0 to 50,000 SCCM flow at max pressure, 4 to 20 mA control signal	qty.


PV102 Models with 3/64' orifice, 0.045 C_v, 100 psi max pressure

PV102-5V	17 Weeks	¥6,395.00	0 to 65,000 SCCM flow at max pressure, 0 to 5 Vdc control signal	qty.

PV102-10V	17 Weeks	¥7,115.00	0 to 65,000 SCCM flow at max pressure, 0 to 10 Vdc control signal	qty.

PV102-MA	17 Weeks	¥7,180.00	0 to 65,000 SCCM flow at max pressure, 4 to 20 mA control signal	qty.


PV103 Models with 1/16' orifice, 0.08 C_v, 60 psi max pressure

PV103-5V	17 Weeks	¥6,540.00	0 to 75,000 SCCM flow at max pressure, 0 to 5 Vdc control signal	qty.

PV103-10V	19 Weeks	¥7,240.00	0 to 75,000 SCCM flow at max pressure, 0 to 10 Vdc control signal	qty.

PV103-MA	17 Weeks	¥6,395.00	0 to 75,000 SCCM flow at max pressure, 4 to 20 mA control signal	qty.


PV104 Models with 5/64' orifice, 0.12 C_v, 40 psi max pressure

PV104-5V	17 Weeks	¥7,170.00	0 to 80,000 SCCM flow at max pressure, 0 to 5 Vdc control signal	qty.

PV104-10V	19 Weeks	¥7,355.00	0 to 80,000 SCCM flow at max pressure, 0 to 10 Vdc control signal	qty.

PV104-MA	17 Weeks	¥6,860.00	0 to 80,000 SCCM flow at max pressure, 4 to 20 mA control signal	qty.

† Price are shown in RMB.

Note: Comes with complete operator’s manual.
Ordering Example: (1) PV101-MA Proportional valve with 1/32'' orifice, 200 psi max. pressure and 4-20mA control signal, ¥7,130.00

Keywords:Low-cost, Electronically Controlled Proportional Valves Using Solenoid Technology, Gases Only, gas transducer ma loop calibrator pneumatic pressure transmitter process control valve signal conditioning circuits
