Vacuum Range High Accuracy Pressure Transducers |
| PX409 Series Vacuum Ranges |
|
 |
|
|
Vacuum Pressure Transducers
PX409 Series
 |

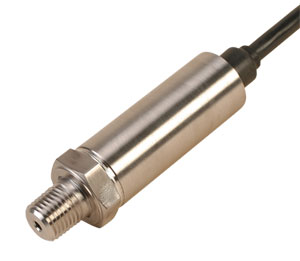

| Click for larger image. |
|
|
¥
7,300.00
PX409-015VV
|
| • |
FAST DELIVERY! Stock to 1-Week!
|
| • |
High Accuracy ±0.08% BSL Includes Linearity, Hysteresis, and Repeatability
|
| • |
Broad Temperature Compensated Range -29 to 85°C (-20 to 185°F)
|
| • |
Premium Temperature Performance Span: ±0.5% Over Compensated Range
|
| • |
5-Point NIST Traceable Calibration Included
|
| • |
Now Available with M12 Connector, Order Model PX459
|
| • |
All Stainless Steel Wetted Parts
|
| • |
Fast Response Time
|
| • |
Solid State Reliability and Stability
|
| • |
400% Proof Pressure Minimum
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
OMEGA’s PX409 Series high accuracy vacuum transducers
have a uni-directional output that measures gage vacuum, negative gage pressure.
Ambient pressure = 0 and output increases as pressure decreases below ambient.
The transducers have all
stainless steel wetted parts and
welded construction and premium
temperature compensation which
makes them suitable for use in
tough industrial environments.
Vacuum models measure negative
gage pressure with increasing output
for increasing negative pressure.
Ranges are from 0 to -10 inH2O to 0 to -15 psi
with uni-directional outputs of 10 mV/V,
0 to 5 Vdc and 4 to 20 mA (ambient
set at 4 mA).
SPECIFICATIONS
Output:
Millivolt: 0 to 10 mV/V for vacuum, ±10 mV/V for compound
Amplified Voltage: 0 to 5 Vdc for vacuum, ±5 Vdc for compound
Current Loop: 4 to 20 mA (12 mA at 0 psig on compound ranges)
Power Requirements:
Millivolt: 5 to 10 Vdc (2 mA @ 10 Vdc)
Amplified Voltage: 10 to 30 Vdc @ 10 mA
Current Loop: 9 to 30 Vdc [max loop res = [(Vs-9) x 50] [9 to 20 Vdc above 105°C (229°F)] Accuracy (Combined Linearity, Hysteresis and Repeatability): ±0.08% BSL max
Zero Balance: ±0.5% FS typical 1% max (1% typical, 2% max for ranges 1 psi and below)
Span Setting: ±0.5% FS typical 1% max (1% typical, 2% max for ranges 1 psi and below) calibrated in vertical direction with fitting down
Operating Temperature Range: -45 to 121°C (-49 to 250°F) [-45 to 115°C (-49 to 240°F) for voltage or current outputs]
Compensated Temperature:
Ranges >5 psi: -29 to 85°C (-20 to 185°F)
Ranges ≤5 psi: -17 to 85°C (0 to 185°F) Thermal Effects Zero (@ 0 psig Over
Compensated Range):
Ranges >5 psi: ±0.5% span
Ranges ≤5 psi: ±1.0% span Thermal Effects Span (Over
Compensated Range):
Ranges >5 psi: ±0.5% span
Ranges ≤5 psi: ±1.0% span
Long Term Stability (1-Year): ±0.1% FS typical
Shock: 50 g, 11 ms half sine vertical and horizontal axis
Vibration: 5-2000-5 Hz 30 minute cycle, Curve L Mil-Spec 810 figure 514-2-2, horizontal and vertical axis
Response Time: <1 ms
Bandwidth: DC to 1 kHz typical
Proof Pressure (positive direction):
10 inH2O: 10 times full scale
1 psi: 6 times full scale
2.5 psi and Higher: 4 times full scale (Negative direction 4 times or 1 atmosphere whichever is greater)
Burst Pressure:
10 inH2O to 15 psi: 1000 psi
Electrical Termination:
PX409: Integral 2 m (6') cable
PX419: mini-DIN
PX429: Twist lock
PX459: M12 Connector
Mating Connectors:
PX419: CX5302 (included)
PX429: PT06F10-6S (sold separately)
Environmental Protection:
PX409: IP67
PX419 and PX429: IP65
Wetted Parts: 316 SS
Pressure Port: ¼-18 NPT male
Calibration: Comes with 5 point calibration certificate (positive readings only for compound ranges)
Weight: 115 to 200 g (4 to 7 oz) depending upon configuration
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with 5 point calibration certificate, (zero is ambient pressure).
Ordering Example: (1) PT06F10-6S Mating twist-lock connector, ¥326.00, plus (1) PX429-015VI 4 to 20 mA output, 0 to -15 psi vacuum, twist-lock termination, ¥8,070.00, ¥326.00 + 8,070.00 = $8,396.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Electrical Termination
|
| |
Select
PX409 for 3 m Cable
PX419 for mini-DIN
PX429 for Twist-lock (mating connector sold separately)
PX459 for M12 Connector (mating connector sold separately)
|
(2)
|
Ranges Vacuum (Negative Gage)
|
| |
Select
10W for 0 to -10 INH2O
001 for 0 to - 1 psi
2.5 for 0 to - 2.5 for psi
005 for 0 to -5 psi
015 for 0 to - 15 psi
|
(3)
|
Electrical Output
|
| |
Select
V for 10mV/V
5V for 0-5 Volt Output
10V for 0-10 Volt Output
I for 4-20 mA Output
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
