Sealed Gage Transducers with mV/V Output
PX409 Sealed Gage
CE

PX409 Series, Sealed Gage, mV/V Output, Px449 Series
PX409 Sealed Gage:Sealed Gage Transducers with mV/V Output

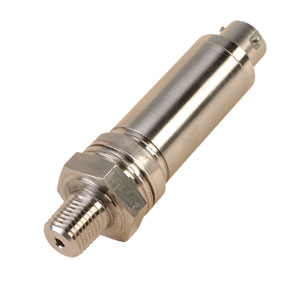

Click for larger image.

¥ 6,300.00  PX429-100SGV
• FAST DELIVERY! Stock to 1-Week!
• Hermetically sealed for the Harshest Environments
• Available with pin or Twist-lock Connector outputs
• High 0.08% Accuracy
• Ranges from 0-100 to 0-5000 psis (sealed gage)
• 316L Stainless Steel Wetted Parts
• Shock and Vibration Tested

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The hermetically sealed gage version of the PX409 Series features all welded Stainless Steel construction, 316L wetted parts and glass to metal seals (GMS) at the electrical outlets with either twist lock connector (PX429) or solder pins (PX449) terminations. This ensures that the unit is hermetically sealed from external environments and the media. Designed for use on automotive and aircraft test platforms and anywhere environmental concerns demand the most durable characteristics. The sealed gage models have the PX409 Series micro machined silicon core that provides high accuracy, low drift and excellent long term stability in the harshest environments.

mV/V SPECIFICATIONS
Output: mV/V, 100 mV @ 10 Vdc (ratiometric 5 to 10 Vdc)
Supply Voltage: 10 Vdc
Input/Output Resistance: 5000 Ω ±20% typical
Accuracy (Combined Linearity, Hysteresis and Repeatability): ±0.08% BSL max
Zero Balance: ±0.5% FS typical 1% max (1% typical, 2% max for 1 psi and below)
Span Setting: ±0.5% FS typical 1% max (1% typical, 2% max for 1 psi and below); calibrated in vertical direction with fitting down
Shock: 50 g 11 mS half sine, vertical and horizontal axis
Vibration: 5-2000-5 Hz 30 minute cycle, Curve L Mil-Spec 810 figure 514-2-2, horizontal and vertical axis
Operating Temperature Range: -45 to 121°C (-49 to 250°F)
Compensated Temperature:
    Ranges >5 psi: -29 to 85°C (-20 to 185°F)
    Ranges ≤5 psi: -17 to 85°C (0 to 185°F)
Thermal Effects Zero (Over Compensated Range):
    Ranges >5 psi: ±0.5% span
    Ranges ≤5 psi: ±1.0% span
Thermal Effects Span (Over Compensated Range):
    Ranges >5 psi: ±0.5% span
    Ranges ≤5 psi: ±1.0% span
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Twist-Lock Termination
 PX429-100SGV 8 Weeks   ¥6,300.00    10 mV/V Output, Sealed Gage 100psi
 PX429-150SGV 8 Weeks   ¥6,300.00    10 mV/V Output, Sealed Gage 150psi
 PX429-250SGV    Consult sales   10 mV/V Output, Sealed Gage 250psi
 PX429-500SGV 8 Weeks   ¥6,300.00    10 mV/V Output, Sealed Gage 500psi
 PX429-750SGV 2 Weeks   ¥6,335.00    10 mV/V Output, Sealed Gage 750psi
 PX429-1.0KSGV 8 Weeks   ¥6,335.00    10 mV/V Output, Sealed Gage 1000psi
 PX429-1.5KSGV 15 Weeks   ¥6,300.00    10 mV/V Output, Sealed Gage 1500psi
 PX429-2.5KSGV 8 Weeks   ¥6,300.00    10 mV/V Output, Sealed Gage 2500psi
 PX429-3.5KSGV 25 Weeks   ¥6,300.00    10 mV/V Output, Sealed Gage 3500psi
 PX429-5.0KSGV 25 Weeks   ¥6,300.00    10 mV/V Output, Sealed Gage 5000psi
 Glass to Metal Seal Pins
 PX449-100SGV    Consult sales   10 mV/V Output, Sealed Gage 100psi
 PX449-150SGV    Consult sales   10 mV/V Output, Sealed Gage 150psi
 PX449-250SGV    Consult sales   10 mV/V Output, Sealed Gage 250psi
 PX449-500SGV    Consult sales   10 mV/V Output, Sealed Gage 500psi
 PX449-750SGV    Consult sales   10 mV/V Output, Sealed Gage 750psi
 PX449-1.0KSGV    Consult sales   10 mV/V Output, Sealed Gage 1000psi
 PX449-1.5KSGV    Consult sales   10 mV/V Output, Sealed Gage 1500psi
 PX449-2.5KSGV    Consult sales   10 mV/V Output, Sealed Gage 2500psi
 PX449-3.5KSGV    Consult sales   10 mV/V Output, Sealed Gage 3500psi
 PX449-5.0KSGV    Consult sales   10 mV/V Output, Sealed Gage 5000psi
 Accessories
 PT06F10-6S In Stock   ¥326.00    Mating connector for PX429 series transducers
† Price are shown in RMB.

 Ordering Example: (1) PT06F10-6S Mating twist-lock connector (sold separately), ¥326.00,
