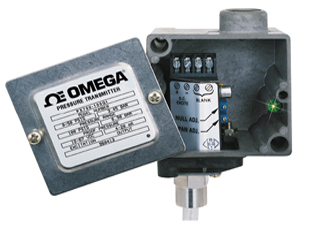

SPECIFICATIONS 5 Vdc (10 Vdc) Output Excitation: 12 to 32 Vdc unregulated (14 to 32 Vdc) Quiescent Current: 15 mA max Output: 0.5 to 5.5 Vdc (1 to 11 Vdc optional) Accuracy: 0.25% FS (includes linearity, hysteresis, repeatability) Zero Balance: ±1% Span Tolerance: ±1% Long-Term Stability: ±0.5% FS Typical Life: 100 million cycles Operating Temperature: -18 to 71°C (0 to 160°F) Compensated Temperature: -1 to 71°C (30 to 160°F) Total Thermal Effects: ±1% FS max Proof Pressure: 200% or 13,000 psi max, whichever is less Min Load Resistance: 2000Ω Response Time: 1 ms Gage Type: Stainless steel diaphragm, silicone oil-filled semiconductor sensor Shock: 50 g @ 11 ms Vibration: 15 g, 10 to 2000 Hz Wetted Parts: 17-4 PH and 300 Series stainless steel Pressure Port: 7/16-20 UNF female Electrical Conn: 4-pole terminal strip and integral 1/2 NPT UNF female Weight: 672 g (23.7 oz) to 1000 psi 686 g (24.2 oz) from 2000 psi
† Price are shown in RMB.
Note: Comes with complete operator’s manual.
To order models with 1 to 11 Vdc output, replace "5V" with "10V" in model number and consult Sales for price and delivery.
To order Absolute Pressure models (to 300 psi), replace "G" with "A" in model number and consult Sales for price and delivery.
Part Number Builder
Option Descriptions
(1)
Range (psi)
Select 015 for 0-15 050 for 0-50 100 for 0-100 200 for 0-200 300 for 0-300 500 for 0-500 1K for 0-1000 2K for 0-2000 3K for 0-3000 5K for 0-5000 10K for 0-10000
(2)
Units
Select G for Gage Pressure Model A for Absolute Pressure Model
(3)
Output
Select 5V for 0.5-5.5 Vdc 10V for 1-11 Vdc I for 4-20 mA output
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
