Industrial Wet/Wet Differential Pressure Transducer with High Over Pressure Capacity
PX80-MV
CE

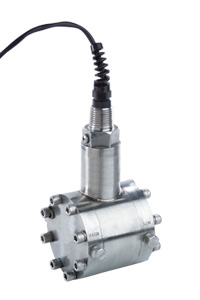

PX80-MV:Industrial Wet/Wet Differential Pressure Transducer with High Over Pressure Capacity
Click for larger image.

• Low Differential Pressure at High Line Pressure - up to 5,000 psi
• All Stainless Steel Construction
• Hermetically Sealed for Harsh Environments
• High Overpressure Capability
• High Operating Temperature
• See Related Links Below for Cables and Accessories

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

OMEGA’s PX80 is a heavy duty, wet/wet, differential pressure transducer available in ranges from ±1 to ±5000 psid. High over pressure capacity, high operating temperature and excellent temperature compensation make the PX80 an extremely accurate and reliable transducer. The all stainless steel and rugged construction allow it to withstand harsh industrial environments.

The PX80 is also available in metric configurations, with G1/8 or G1/4 ports, and models from 0-2 to 0-350 bar pressure ranges. Please see the PXM80 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15 V max)
Output: 2 mV/V nominal
Bridge Resistance: 350 Ω
Zero Balance: ±1% FSO
Linearity: ±0.25% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.1% FSO
Operating Temp Range: -73 to 163°C (-100 to 325°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: 0.009% FSO/°C
   Span: 0.009% rdg/°C
Line Pressure: 1500 psi (100 bar) or 150% of rated pressure, whichever is greater
Burst Pressure: 6000 psi (414 bar) minimum
Wetted Parts: 17-4 PH stainless steel and Buna-N O-ring
Pressure Port: See dimensional drawings on spec pages
Electrical Termination:
Style "0" = 3 m (10') cable
Style "1" = PTIH-10-6P (or equiv)
Style "6" = mini DIN
Mating Connector:
Style "1" = PT06F10-6S, sold separately
Style "6" = Mating connector (included)
Weight: 2.3 kg (5 lb)


Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PX80D1-050DV    Consult sales   ±50 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 PX80D1-100DV    Consult sales   ±100 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 PX80D1-200DV    Consult sales   ±200 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 PX80D1-300DV    Consult sales   ±300 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 PX80D1-500DV    Consult sales   ±500 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 PX80D1-700DV    Consult sales   ±700 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 PX80B1-1KDV    Consult sales   ±1,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 PX80B1-1.5KDV    Consult sales   ±1,500 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 PX80B1-2KDV    Consult sales   ±2,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 PX80B1-2.5KDV    Consult sales   ±2,500 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 PX80B1-3KDV    Consult sales   ±3,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 PX80B1-5KDV    Consult sales   ±5,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.
 Accessories
 PT06F10-6S In Stock   ¥326.00    Mating connector for units with PTIH-10-6P twist-lock connector
† Price are shown in RMB.

 Ordering Example: (1) PT06F10-6S mating connector (sold separately), ¥326.00,
   Part Number Builder
(1) (2) (3) (4) (5)
P
P
X
X
8
8
0
0
-
-
Qty:
Option Descriptions
(1) Pressure Port
  Select
B for 1/8-27 NPT Female (1000 psid and over)
D for 1/4-18 NPT Female (700 psid and less)
(2) Electrical Connection
  Select
0 for 10 ft PVC Cable
1 for PT1H-10-6P Connector or equal
5 for Lightning Protected Amplifier Housing (4-20 mA model only)
(3) Range (psid)
  Select
030 for 0-30
050 for 0-50
100 for 0-100
200 for 0-200
300 for 0-300
500 for 0-500
700 for 0-700
1K for 0-1000
1.5K for 0-1500
2K for 0-2000
2.5K for 0-2500
3K for 0-3000
5K for 0-5000
(4) Units
  Select
D for Differential Pressure
(5) Output
  Select
V for mV/V
5T for 0-5 Vdc
I for 4-20 mA
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
