OMEGA’s PX82 Series wet/wet, differential pressure transmitter can measure inches of water differential at line pressure up to 1500 psi.
This high line pressure capacity, high operating temperature and excellent temperature compensation make the PX82 Series an
extremely accurate and reliable transducer. The rugged Inconel Diaphragms and Stainless Steel body give the PX82 Series high reliability
in harsh industrial environments.
The PX82 is also available in metric configurations, with G1/8 and G1/4 ports, and models from 0-130 mbar to 0-2 bar pressure ranges.
Please see the PXM82 for complete details, or contact our Pressure department for more information..

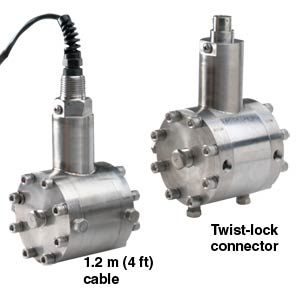

SPECIFICATIONS Excitation: 10 to 40 Vdc Output: 4 to 20 mA ±10% adj Zero Balance: 4 mA +10% -2% adj Accuracy: 0.25% linearity, hysteresis and repeatability combined Operating Temp Range: -34 to 107°C (-30 to 225°F) Compensated Temp Range: -1 to 54°C (30 to 130°F) Pressure Effects: Zero: <2%/1000 psi (70 bar) line pressure Span: -2.45%/1000 psi (70 bar) line pressure Thermal Effects: Zero: ±0.50% FSO maximum over compensated range Span: ±0.50% rdg maximum over compensated range Line Operating Pressure: 1500 psi (100 bar) Safe Overpressure: 1000 psi (70 bar) each side Burst Pressure: 2500 psi (170 bar) minimum Wetted Parts: 17-4 PH stainless steel and Inconel 625 Pressure Port: See dimensional drawings on specs pages Electrical Connection: Style 0: 1.2 m (4') cable Style 1: PTIH-10-6P (or equal) Style 6: mini DIN Mating Connector: Style 1: PT06F10-6S, sold separately Style 6: Mating connector (included) Weight: 1.8 kg (4 lb)
† Price are shown in RMB.
Note: Metric Ranges Available - PXM82 Additional models availible, consult Custom Part Builder below for model numbers.
Part Number Builder
Option Descriptions
(1)
Pressure Port
Select B for 1/8 -27 NPT-F
(2)
Electrical Connection
Select 0 for Shielded PVC Cable- 4ft mV/V Models- 10ft on AMplified Models 1 for PT1H-10-6P Connector or equal 5 for Lightning Protected Amplifier Housing (4-20 mA models only)
(3)
Range (WC measured in in-H2O- others in psi)
Select 050WC for 0-50 100WC for 0-100 150WC for 0-150 200WC for 0-200 300WC for 0-300 500WC for 0-500 800WC for 0-800 002 for 0-2 003 for 0-3 004 for 0-4 005 for 0-5 006 for 0-6 008 for 0-8 010 for 0-10 022 for 0-22
(4)
Units
Select D for Differential Pressure
(5)
Output
Select V for mV/V 5V for 0.5-5.5 Vdc I for 4-20 mA
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
