Discontinued - Industrial Wet/Wet Differential Pressure Transmitter High Over Pressure Capacity, 0-2 bar to 0-350 bar |
| PXM80 Series, Metric, 4-20 mA Output |
|
 |
|
|
|
|
|
|
|
| • |
Low Differential Pressure at High Line Pressure - 100 bar Standard Optional up to 345 bar
|
| • |
Available in mv/V Output, 0-5V Output, and 4-20ma Output
|
| • |
All Stainless Steel Construction
|
| • |
Sealed for Harsh Environments
|
| • |
High Overpressure
|
View related products - Pressure Transducers
|
| |
|
|
|
 |

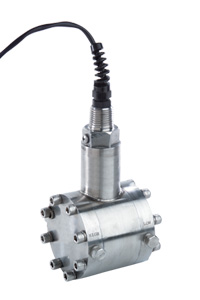

OMEGA’s PXM80 Series is a heavy duty, wet/wet, differential pressure transducer available in ranges from 0-2 to 0-350 bar. The Series is available with either of three outputs; mV/V, amplified 0-5 Vdc or 4-20 mA. These are suitable for interface with most PLCs and computer based control systems. An extremely high over pressure capacity of 100 bar or 150% of capacity (whichever is greater) make the PXM80 an extremely durable transducer. The all stainless steel construction, and high over pressure protection make the PXM80 Series differential pressure transducers a high reliability transducer in harsh industrial environments.
The PXM80 is also available in standard/Imperial configurations, with
NPT ports, and models from 0-30 to 0-5,000 psi pressure ranges.
Please see the PX80 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS
Excitation: 10 to 40 Vdc
Output: 4 to 20 mA ±0.8 mA adj
Max Loop Resistance: (Input voltage - 12) x 50
Zero Balance: 4 mA ± 0.4 mA adj
Linearity: ±0.25% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.1% FSO
Operating Temp Range: -46 to 107°C (-50 to 225°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.013% FSO/°C
Span: 0.009% rdg/°C
Line Pressure: 1500 psi (100 bar) or 150% of rated pressure, whichever is greater
Burst Pressure: 6000 psi (414 bar) minimum
Wetted Parts: 17-4 PH stainless steel and Buna-N O-ring
Pressure Port: G 1/4 female for ranges less than 70 bar, G1/8 female on ranges 70 bar and up
Electrical Termination:
Style "0" = 3 m (10') cable
Style "1" = PTIH-10-6P (or equiv)
Style "5" = Metal terminal box (4 to 20 mA output models only)
Style "6" = mini DIN
Mating Connector:
Style "1" = PT06F10-6S, sold separately
Style "6" = Mating connector (included)
Weight: 2.3 kg (5 lb)
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
|
|
|
|
|
| |
|
