QF SERIES

Infrared Heaters, Quartz Heaters

QF SERIES:QF SERIES INFRARED PANEL HEATERS

Click for larger image.

^¥ 5,930.00 QF-061210

•	870°C (1600°F) Maximum Operating Temperature
•	Black Quartz Ceramic Cloth Face
•	Output Wavelength Between 2.5 and 6 Microns
•	No External Reflectors Required
View related products - Radiant Heaters

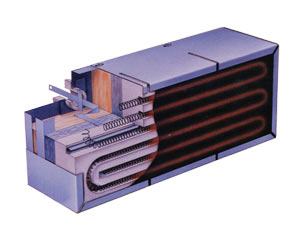

OMEGALUX™ QF Series heaters are very popular infrared panel heaters used in a wide variety of applications. The QF series panel heaters’ radiant surface is constructed through a patented process using bonded high temperature cloth quartz. A black coating is applied to the face of the heater for greater emissivity. A 2.5 cm (1") thick ceramic fiber refractory board is grooved out to support the precision resistance coils.

The resistance coil is then housed into the grooved-out refractory board. A layer of durable, high temperature, cement is used to bond the quartz face to the resistance coils as well as to the refractory coil support. The resistance coils used are an iron/chromium/aluminum alloy which can operate up to 1315°C (2400°F). These are then welded to stainless terminals which are routed to the back of the heater for external electrical connections. The welding insures the best possible electrical path. By changing to stainless buss bars and terminals, the conductivity is increased, insuring less heat buildup in the terminals. The heater board is then backed up by a high temperature insulation to prevent back heat loss. Finally, this is all packaged in a sturdy aluminized steel frame.

Note: QF series heaters are intended for “radiant” heat. Never let material to be heated come into direct contact with the face of the heater. It is recommended that overtemperature control be used to prevent overheating.

CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel.

Width cm (in.)	Length cm (in.)	Wattage	Voltage	Phase	Without Thermowell Model No.	With Thermowell Model No.	Weight kg (lb)
10 W/in2
15 (6)	30 (12)	720	120	1	QF-061210	QF-061210-T	1.4 (3)
15 (6)	46 (18)	1080	120/240	1	QF-061810	QF-061810-T	2.0 (4.5)
15 (6)	61 (24)	1440	120/240	1	QF-062410	QF-062410-T	2.7 (6)
15 (6)	76 (30)	1800	120/240	1	QF-063010	QF-063010-T	3.4 (7.5)
15 (6)	91 (36)	2160	240/480	1	QF-063610	QF-063610-T	4.1(9)
15 (6)	122 (48)	2880	240/480	1	QF-064810	QF-064810-T	5.0 (11)
30 (12)	30 (12)	1440	240	1	QF-121210	QF-121210-T	2.7 (6)
30 (12)	46 (18)	2160	240/480	1	QF-121810	QF-121810-T	3.9 (8.5)
30 (12)	61 (24)	2880	240/480	1	QF-122410	QF-122410-T	5.0 (11)
30 (12)	76 (30)	3600	240/480	1	QF-123010	QF-123010-T	6.1 (13.5)
30 (12)	91 (36)	4320	240/480	1	QF-123610	QF-123610-T	6.8 (15)
30 (12)	122 (48)	5760	240/480	1	QF-124810	QF-124810-T	9.1 (20)
30 (12)	152 (60)	7200	240 or 480	3	QF-126010/*	QF-126010/*-T	11.8 (26)
30 (12)	183 (72)	8640	240 or 480	3	QF-127210/*	QF-127210/*-T	14.5 (32)
41 (16)	41 (16)	2560	240/480	1	QF-161610	QF-161610-T	4.5 (10)
61 (24)	61 (24)	5760	240 or 480	Dual	QF-242410/*	QF-242410/*-T	9.1 (20)
15 W/in2
15 (6)	30 (12)	1080	120/240	1	QF-061215	QF-061215-T	1.4 (3)
15 (6)	46 (18)	1620	120/240	1	QF-061815	QF-061815-T	2.0 (4.5)
15 (6)	61 (24)	2160	240/480	1	QF-062415	QF-062415-T	2.7 (6)
15 (6)	76 (30)	2700	240/480	1	QF-063015	QF-063015-T	3.4 (7.5)
15 (6)	91 (36)	3240	240/480	1	QF-063615	QF-063615-T	4.1(9)
15 (6)	122 (48)	4320	240/480	1	QF-064815	QF-064815-T	5.0 (11)
30 (12)	30 (12)	2160	240/480	1	QF-121215	QF-121215-T	2.7 (6)
30 (12)	46 (18)	3240	240/480	1	QF-121815	QF-121815-T	3.9 (8.5)
30 (12)	61 (24)	4320	240/480	1	QF-122415	QF-122415-T	5.0 (11)
30 (12)	76 (30)	5400	240/480	1	QF-123015	QF-123015-T	6.1 (13.5)
30 (12)	91 (36)	6480	240	3	QF-123615/	QF-123615/-T	6.8 (15)
30 (12)	122 (48)	8640	240 or 480	3	QF-124815/*	QF-124815/*-T	9.1 (20)
30 (12)	152 (60)	10800	240 or 480	3	QF-126015/*	QF-126015/*-T	11.8 (26)
30 (12)	183 (72)	12960	240 or 480	3	QF-127215/*	QF-127215/*-T	14.5 (32)
41 (16)	41 (16)	3840	240/480	1	QF-161615	QF-161615-T	4.5 (10)
41 (16)	61 (24)	5760	240 or 480	Dual	QF-162415/*	QF-162415/*-T	6.6 (14.5)
61 (24)	61 (24)	8640	480	Dual	QF-242415/480	QF-242415/480-T	9.1 (20)
20 W/in2
15 (6)	30 (12)	1440	240	1	QF-061220	QF-061220-T	1.4 (3)
15 (6)	46 (18)	2160	240/480	1	QF-061820	QF-061820-T	2.0 (4.5)
15 (6)	61 (24)	2880	240/480	1	QF-062420	QF-062420-T	2.7 (6)
15 (6)	76 (30)	3600	240/480	1	QF-063020	QF-063020-T	3.4 (7.5)
15 (6)	91 (36)	4320	240/480	1	QF-063620	QF-063620-T	4.1(9)
15 (6)	122 (48)	5760	240/480	1	QF-064820	QF-064820-T	5.0 (11)
30 (12)	30 (12)	2880	240/480	1	QF-121220	QF-121220-T	2.7 (6)
30 (12)	46 (18)	4320	240/480	1	QF-121820	QF-121820-T	3.9 (8.5)
30 (12)	61 (24)	5760	240/480	1	QF-122420	QF-122420-T	5.0 (11)
30 (12)	76 (30)	7200	240 or 480	3	QF-123020/*	QF-123020/*-T	6.1 (13.5)
30 (12)	91 (36)	8640	240 or 480	3	QF-123620/*	QF-123620/*-T	6.8 (15)
30 (12)	122 (48)	11520	240 or 480	3	QF-124820/*	QF-124820/*-T	9.1 (20)
30 (12)	152 (60)	14400	240 or 480	3	QF-126020/*	QF-126020/*-T	11.8 (26)
30 (12)	183 (72)	17280	240 or 480	3	QF-127220/*	QF-127220/*-T	14.5 (32)
41 (16)	41 (16)	5120	240 or 480	Dual	QF-161620/*	QF-161620/*-T	4.5 (10)
41 (16)	61 (24)	7680	480	Dual	QF-162420/480	QF-162420/480-T	6.6 (14.5)
61 (24)	61 (24)	11520	480	Dual	QF-242420/480	QF-242420/480-T	9.1 (20)
25 W/in2
15 (6)	30 (12)	1800	120/240	1	QF-061225	QF-061225-T	1.4 (3)
15 (6)	46 (18)	2700	240/480	1	QF-061825	QF-061825-T	2.0 (4.5)
15 (6)	61 (24)	3600	240/480	1	QF-062425	QF-062425-T	2.7 (6)
15 (6)	76 (30)	4500	240/480	1	QF-063025	QF-063025-T	3.4 (7.5)
15 (6)	91 (36)	5400	240/480	1	QF-063625	QF-063625-T	4.1(9)
15 (6)	122 (48)	7200	240/480	1	QF-064825	QF-064825-T	5.0 (11)
30 (12)	30 (12)	3600	240/480	1	QF-121225	QF-121225-T	2.7 (6)
30 (12)	46 (18)	5400	240/480	1	QF-121825	QF-121825-T	3.9 (8.5)
30 (12)	61 (24)	7200	240 or 480	3	QF-122425/*	QF-122425/*-T	5.0 (11)
30 (12)	76 (30)	9000	240 or 480	3	QF-123025/*	QF-123025/*-T	6.1 (13.5)
30 (12)	91 (36)	10800	240 or 480	3	QF-123625/*	QF-123625/*-T	6.8 (15)
30 (12)	122 (48)	14400	240 or 480	3	QF-124825/*	QF-124825/*-T	9.1 (20)
30 (12)	152 (60)	18000	240 or 480	3	QF-126025/*	QF-126025/*-T	11.8 (26)
30 (12)	183 (72)	21600	240 or 480	3	QF-127225/*†	QF-127225/*-T	14.5 (32)
41 (16)	41 (16)	6400	240 or 480	Dual	QF-161625/*	QF-161625/*-T	4.5 (10)
41 (16)	61 (24)	9600	480	Dual	QF-162425/480	QF-162425/480-T	6.6 (14.5)
61 (24)	61 (24)	14400	480	Dual	QF-242425/480	QF-242425/480-T	9.1 (20)

*Specify voltage, i.e. insert 240 for 240 V or 480 for 480 V †This heater has two junction boxes at opposite ends of the panel

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

QF-121210-T	9 Weeks	¥7,690.00	Radiant heaters with thermowell, 12' width, 12' length, 10 W/in2	qty.

QF-061210	7 Weeks	¥5,930.00	Radiant heaters without thermowell, 6' width, 12' length, 10 W/in2	qty.

QF-064810-T	7 Weeks	¥10,190.00	Radiant heaters with thermowell, 6' width, 48' length, 10W/in2, 2880 Watts Total	qty.

QF-061815	7 Weeks	¥6,670.00	Radiant heaters without thermowell, 6' width, 18' length, 15 W/in2	qty.

QF-121815-T	7 Weeks	¥8,985.00	Radiant heaters with thermowell, 12' width, 18' length, 15W/in2	qty.

QF-063610-T	7 Weeks	¥8,985.00	Radiant heaters with thermowell, 6' width, 36' length, 10 W/in2, 2160 Watts Total	qty.

QF-123610-T	7 Weeks	¥12,880.00	Radiant heaters with thermowell, 12' width, 36' length, 10 W/in2, 4320 Watts Total	qty.

QF-124825/240	7 Weeks	¥15,010.00	Radiant heaters without thermowell, 12' width, 48' length, 25W/in2	qty.

QF-124825/480	7 Weeks	¥15,010.00	Radiant heaters without thermowell 12' width 48' length, 25W/in2	qty.

QF-126020/240-T	7 Weeks	¥18,195.00	Radiant heaters with thermowell 12' width 60' length, 20W/in2	qty.

QF-126025/480-T	7 Weeks	¥18,195.00	Radiant heater with thermowell 12' width 60' length, 25W/in2	qty.

QF-127210/240-T	7 Weeks	¥20,690.00	Radiant heater with thermowell 12' width 72' length, 10W/in2	qty.

† Price are shown in RMB.

Note: Comes with mounting hardware and complete operator’s manual

Part Number Builder

Option Descriptions

(1)

Width

Select
06 for 6 in.
12 for 12 in.
16 for 16 in.
24 for 24 in.

(2)

Length

Select
12 for 12 in.
16 for 16 in.
18 for 18 in.
24 for 24 in.
30 for 30 in.
36 for 36 in.
48 for 48 in.
60 for 60 in.
72 for 72 in.

(3)

W/in2

Select
10 for 10 W/in2
15 for 15 W/in2
20 for 20 W/in2
25 for 25 W/in2

(4)

Voltage

Select
Nothing(leave field blank) for 120 V
/240 for 240 V
/480 for 480 V

(5)

Thermowell

Select
Nothing(leave field blank) for without thermowell
-T for with thermowell

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
