High Temperature Ceran Glass-Faced Infared Panel Heaters |
| QG Series |
|
 |
|
|
|
|
|
¥
5,585.00
QG-061210
|
| • |
Black Ceran Glass Emitter Face
|
| • |
870°C(1600°F) Maximum Emitter Face Temperature
|
| • |
Output Wavelength Between 2.5 and 6 Microns
|
| • |
Three Watt Densities Available: 10, 15, and 20W/In2
|
| • |
Uniform IR Coverage
|
View related products - Radiant Heaters
|
| |
|
|
|
 |

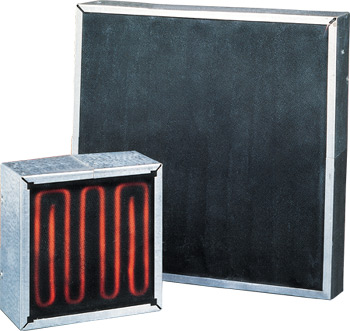

OMEGALUX™ QG Series heaters use a solid black Ceran™ glass as the emitter face. Maximum power output is 20 Watts/square
inch with a maximum operating temperature of 870°C (1600°F) on the face. An optional thermowell from the back of the heater
allows for a spring-loaded thermocouple to measure face temperature. This is the best way to use direct temperature control. The
heater is available in sizes from 152 x 305 mm (6" x 12") up to 610 x 610 mm (24" x 24"). For medium power applications requiring a
cleanable heater surface, the QG Series is ideal. For higher power applications, consider the OMEGALUX™ QC or QH Series
heaters, which have a quartz emitter face. Heaters are assembled using screws as opposed to rivets, allowing for easy
replacement of the glass in the field.
Note: QG Series heaters are intended for “radiant” heat. Never let material to be heated come in
direct contact with the face of the heater. It is recommended that overtemperature control be used
to prevent overheating.
CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by
non-qualified personnel.
Width
cm (in.) |
Length
cm (in.) |
Wattage |
Voltage |
Phase |
Without Thermowell
Model No. |
With Thermowell
Model No. |
Weight
kg (lb) |
| 10 W/in2 |
| 15 (6) | 30 (12) | 720 | 120 | 1 | QG-061210 | QG-061210-T | 1.8 (4) |
| 15 (6) | 46 (18) | 1080 | 120/240 | 1 | QG-061810 | QG-061810-T | 2.7 (6) |
| 15 (6) | 61 (24) | 1440 | 120/240 | 1 | QG-062410 | QG-062410-T | 3.6 (8) |
| 30 (12) | 30 (12) | 1440 | 120/240 | 1 | QG-121210 | QG-121210-T | 3.6 (8) |
| 30 (12) | 46 (18) | 2160 | 240/480 | 1 | QG-121810 | QG-121810-T | 5.4 (12) |
| 30 (12) | 61 (24) | 2880 | 240/480 | 1 | QG-122410 | QG-122410-T | 6.8 (15) |
| 61 (24) | 61 (24) | 5760 | 240/480 | 1 | QG-242410 | QG-242410-T | 6.8 (15) |
| 15 W/in2 |
| 15 (6) | 30 (12) | 1080 | 120/240 | 1 | QG-061215 | QG-061215-T | 1.8 (4) |
| 15 (6) | 46 (18) | 1620 | 120/240 | 1 | QG-061815 | QG-061815-T | 2.7 (6) |
| 15 (6) | 61 (24) | 2160 | 240/480 | 1 | QG-062415 | QG-062415-T | 3.6 (8) |
| 30 (12) | 30 (12) | 2160 | 240/480 | 1 | QG-121215 | QG-121215-T | 3.6 (8) |
| 30 (12) | 46 (18) | 3240 | 240/480 | 1 | QG-121815 | QG-121815-T | 5.4 (12) |
| 30 (12) | 61 (24) | 4320 | 240/480 | 1 | QG-122415 | QG-122415-T | 6.8 (15) |
| 41 (16) | 61 (24) | 5760 | 240/480 | 1 | QG-162415 | QG-162415-T | 9.1 (20) |
| 61 (24) | 61 (24) | 8640 | 240 | 1 | QG-242415/240 | QG-242415/240-T | 6.8 (15) |
| 61 (24) | 61 (24) | 8640 | 480 | 1 | QG-242415/480 | QG-242415/480-T | 12.7 (28) |
| 20 W/in2 |
| 15 (6) | 30 (12) | 1440 | 120/240 | 1 | QG-061220 | QG-061220-T | 1.8 (4) |
| 15 (6) | 46 (18) | 2160 | 240/480 | 1 | QG-061820 | QG-061820-T | 2.7 (6) |
| 15 (6) | 61 (24) | 2880 | 240/480 | 1 | QG-062420 | QG-062420-T | 3.6 (8) |
| 30 (12) | 30 (12) | 2880 | 240/480 | 1 | QG-121220 | QG-121220-T | 3.6 (8) |
| 30 (12) | 46 (18) | 4320 | 240/480 | 1 | QG-121820 | QG-121820-T | 5.4 (12) |
| 30 (12) | 61 (24) | 5760 | 240/480 | 1 | QG-122420 | QG-122420-T | 6.8 (15) |
| 41 (16) | 61 (24) | 7860 | 240/480 | 1 | QG-162420 | QG-162420-T | 9.1 (20) |
|
|
|
|
|
|
† Price are shown in RMB.
Note: Each heater comes complete with mounting hardware and complete operator’s manual.
To order detachable, bayonet type temperature probe for monitoring heater temperature, order model OSK1036/BT-090-K-41/4-60-1
Ordering Example: (1) QG-242415/240 8640 Watt, 61 x 61 cm (24'' x 24''), 240 Vac single phase heater, ¥19,625.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Width
|
| |
Select
06 for 6 in.
12 for 12 in.
16 for 16 in.
24 for 24 in.
|
(2)
|
Length
|
| |
Select
12 for 12 in.
16 for 16 in.
18 for 18 in.
24 for 24 in.
|
(3)
|
W/in2
|
| |
Select
10 for 10 W/in2
15 for 15 W/in2
20 for 20 W/in2
|
(4)
|
Voltage(model specific see table above)
|
| |
Select
Nothing(leave field blank) for standard voltage from table above
/240 for 240 V
/480 for 480 V
|
(5)
|
Thermowell
|
| |
Select
Nothing(leave field blank) for heater without thermowell
-T for with thermowell
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | |
|
|
|
|
|
|
| |
|
