Small Semiconductor Enclosure Heater

RC016 Series

Small Semiconductor Heater

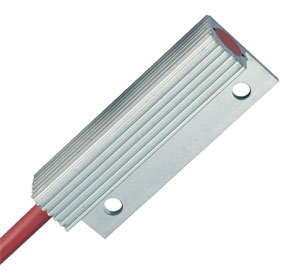

RC016 Series:Small Semiconductor Enclosure Heater

Click for larger image.

^¥ 228.00 RC1610000

•	Temperature Limiting
•	Wide Voltage Range
•	Energy Saving
•	Compact
View related products - Enclosure Heaters, Fans & Accessories

These small heaters are designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.

SPECIFICATIONS
Operating Voltage: 120 to 240 Vac/Vdc* (min 110V, max 265V)
Heating Element: PTC resistor, self regulating and temperature limiting
Heater Body: Aluminium, anodized
Mounting: Screw (screws not included)
Fitting Position: Variable
Operating/Storage Temperature: -45 to 70°C (-49 to 158°F)
Protection Type/Protection Class: NEMA 1 (IP32)/II (double insulated)
Approvals: VDE + UL File No. E150057
Note: Other voltages on request * Operating with voltages below 140 Vac/Vdc reduces heating performance by approx. 10%.
Heating Capacity*: 13 W
Inrush Current Max: 3.0 A
Surface Temperature (Approx.): 170°C (338°F)
Connection: 2 x AWG 22 sheathed cable (silicone)
Weight (Approx.): 40 g (0.08 lb)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
RC1610000	11 Weeks	¥228.00	Small PTC heater, 13W, 120 to 240 Vac/Vdc.	qty.

RC1610001		¥245.00	Small PTC heater, 13W, 12 to 36 Vac/Vdc.	qty.

† Price are shown in RMB.

Note: Comes with complete operator’s manual.
