Multi Input Compact mV, mA, or Thermocouple Recorders
RD288, and RD255
1 year warranty

Thermocouple Recorders
RD288, and RD255 :Multi Input Compact mV, mA, or Thermocouple Recorders

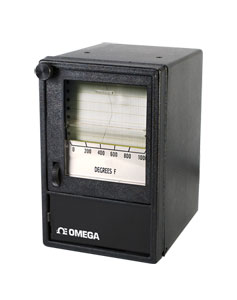

Click for larger image.

• dc Input, and Thermocouple Input
• 58 mm (2 5/16") Recording Width
• 2.54 cm/hr (1 in/hr) Standard Chart Speed

View related products - Recorders

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

OMEGA offers three compact units for recording dc signals, and temperature (from thermocouples). The RD288 galvanometric recorder permits full-scale measurement of signals by striking a stylus against pressure-sensitive paper. The economical RD255 thermocouple recorder measures temperatures from remote thermocouple probes.

SPECIFICATIONS
Ambient Temperature: 0 to 50°C (32 to 122°F)
Primary Power: 100 to 130 Vac, 50/60 Hz
Dimensions: 93 H x 143 W x 110 mm D (35⁄8 x 55⁄6 x 45⁄16")
Weight: 1.7 kg (3.75 lb)
RD288 DC Input Recorder Inputs (Resistance in Ω): 0 to 1 mA (100), 4 to 20 mA (6.25), 0 to 100 mV (100)
Striking Rate: Once every 2 s
Accuracy: ±2% max continuous
input: 150%
Connections: Input, 6-pin connector; detachable line cord

RD255 Thermocouple Recorder
Input Types: E, J, K, R, S, T thermocouples
Ranges: 0 to 250°F, 0 to 500°F, 0 to 1000°F, 0 to 100°C, 0 to -300°C
Accuracy: ±2% span
T/C Break Protection: Up-scale
Maximum Loop Resistance: 1 kΩ
Connections: Inputs, SMP connector; power, line cord
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Recorders
 RD288-4-20MA    Consult sales   Recorder, 1 input, 4 to 20 mA
 RD288-10V    Consult sales   Recorder, 1 input, 0-10 V
 RD288-CONN    Consult sales   6 PIN FEMALE CONN FOR RD288
 RD288-CORD    Consult sales   DETACHABLE LINE CORD FOR RD288
 RD255J-500F    Consult sales   Recorder, 1 input, J T/C
 RD255K-250C    Consult sales   Recorder, 1 input K T/C deg C
 RD255K-1000F    Consult sales   Recorder, 1 input, K T/C
 RD255E-1000F    Consult sales   Recorder, 1 input, E T/C
 Paper
 SL-650 7 Weeks   ¥305.00    Paper, 1 roll, 19 m (63'), event
 SL-651 2 Weeks   ¥305.00    Paper, 1 roll, 19 m (63'), 50 divisions
 SL-652 7 Weeks   ¥305.00    Paper, 1 roll, 19 m (63'), 40 divisions
 SL-653 7 Weeks   ¥305.00    Paper, 1 roll, 19 m (63'), 60 divisions
† Price are shown in RMB.

 Note: Recorder comes complete with roll of paper and operator’s manual.


Keywords:Multi Input Compact mV, mA, or Thermocouple Recorders, Models RD288-(*), RD292-(*), and RD255(*)
