Paperless Recorder |
| RD8250 Series |
|
 |
|
|
|
|
|
|
|
| • |
2 Configurable Isolated Inputs for DC Voltage and Current, Thermocouples, RTDs, Frequency, and rpm Pulse
|
| • |
4 Internal Alarm Setpoints
|
| • |
2 Alarm Relay Outputs
|
| • |
1 Digital Control Input
|
| • |
Maximum Storage Rate of 100 Samples/s
|
| • |
Compact Flash Cards Can Store Up to 2 Gigabytes of Data in Memory
|
| • |
Optional Software for Graphic Analysis, Printing, Transfer, and Exporting
|
| • |
Standard 1/4 DIN Panel Mount
|
| • |
Bright, Clear Display
|
View related products - Recorders
|
| |
|
|
|
 |

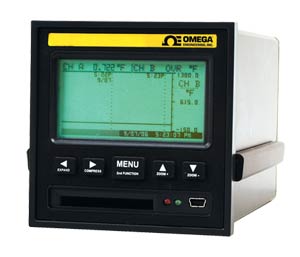

With its dual-function keys and
sharp display, OMEGA’s RD8250 is
a sophisticated process recorder.
The graphic user interface makes
configuration easy.
This recorder can display real-time
data in digital or trend format. Via the
front-panel USB port (order “-USB”
option), the user can upload data
from a flash memory card to a PC.
The RD8252 comes with an external
AC adaptor with univeral plug set
for 100 to 240 Vac 50/60 Hz.
Other power options include 12 to 24 Vdc
isolated input (RD8253), and a rechargeable
battery pack option (RD8252-UPS). With the
battery pack installed, the
RD8252-UPS can function for up to
8 hours, preserving data and
settings in the event of a power loss.
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) RD8252 Paperless recorder, 2 inputs, ¥7,635.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Output
|
| |
Select
2 for Universal AC adaptor
3 for DC power 12 to 24 Vdc
|
(2)
|
Additional Option
|
| |
Select
Nothing(leave field blank) for None
-UPS for Rechargeable battery for RD8252 unit
-USB for USB communications with basic software
-EI for Ethernet communications port
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
