Paperless Recorder |
| RD9900 Series |
|
 |
|
|
|
|
|
¥
28,200.00
RD9906
|
| • |

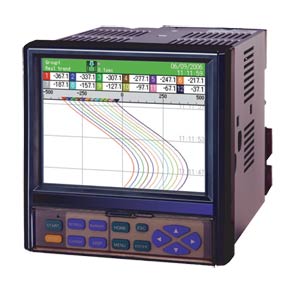

6 or 12 Point Models Available (12 Point Shown)
|
| • |
Clear 5.6" TFT Color LCD Display
|
| • |
Large Capacity of Data Memory and Various Recording Method
|
| • |
Multi-Points Recording with High-Speed/ Accuracy
|
| • |
Easy Operating and Programming without Manuals
|
| • |
LAN Network Capability
|
| • |
Safety System and Reliability
|
| • |
Analyzing/Data Acquisition Application Software
|
View related products - Recorders
|
| |
|
|
|
 |
RD9900 Series are network compatible
paperless recorders with
high performance and high
operating function employed high
visibility 5.6" TFT color LCD. High
speed of sampling rate 100 ms for
12 points and high accuracy of
±0.1% were realized, and measured
data is stored into internal memory
and maximum 2 GB compact flash
card. As it can be monitored by a
web browser display on several
computers on intranet or internet,
FTP transfer of data file and e-mail
notification are also available.
The recorder can be used for
various applications such as
data management, research,
development, remote and wide
range monitoring by utilizing
internet environment.
Input SPECIFICATIONS
Number of Measuring Points:
RD9906: 6 points
RD9912: 12 points
Input Types: Universal (refer to the table of inputs on page S-28, RD200/2800 Series)
Accuracy Rating:Refer to the table of inputs
Reference Junction Compensation Accuracy: K, E, J, T, N, Platinel II; ±0.5ºC or less; R, S, NiMo-Ni, CR-AuFe, WRe5-WRe26, W-Wre, U, L; ±1.0ºC or less
Sampling Rate: Approximately 100 ms for all points
Burnout: Disconnection of input signal is detected on thermocouple and resistance thermometer input; UP/DOWN disable is selectable for each input
Scaling: Range/scale is selectable when DC voltage/current is programmed
Digital Filter: Programming FIR filter for each point (common to all points)
Allowable Signal Source Resistance:
Thermocouple Input (Burnout Disable)/DC voltage input (±2 V or less): 1 kOhms or less
DC Voltage Input (±5 to ±50 V): 100 Ohms or less
Resistance Thermometer: Per wire 10 O or less (same resistance for 3 wires)
Input resistance: DC voltage, thermocouple input; approximately 1 MΩ
Maximum Input Voltage: DC voltage input (±2 V or less)/thermocouple input (burnout disable)
Dielectric Strength Between Channels: 1000 Vac or more between each channel (high strength semiconductor relay used)
DISPLAY SPECIFICATIONS
Display: 5.6" TFT color LCD
Display Types:
Measured Data Display: Trend screen, data screen, bar-graph screen
Historical Trend Display: Simultaneous display with real-time trend is available
Information Display: Alarm display, marker list, file list
Setting Screen: Alarm, computation, memory, system, maintenance, communication, etc.
Trend Screen: 12 colors selectable
Display Screen: 5 screens (5 groups)
Display Points: Maximum 44 points/screen/
Time Axis Direction: Vertical or horizontal
Line Width: 1/3/5 dot selectable
Scale Display: 4 scales
Tag/Data Display: Show/hide selectable Marker Display
Data screen: Display screen, 5 screens (5 groups)
Display Points: Maximum 44 points/screen
Display Contents: Measured value, channel/tag, unit, alarm status
Bargraph Screen: 12 colors selectable
Display Screen: 5 screens (5 groups)
Display Points: Maximum 44 points/screen
Display Direction: Vertical or horizontal
Scale Display: 1 scale
Information Display:
Alarm Display: Alarm activation/released history display Marker List
File List: Group data file list display
LCD Back Light: Auto/manual OFF function
LCD Brightness: 4 levels adjustment
RECORDING SPECIFICATIONS
Internal Memory: Flash memory, 4 MB capacity
External Memory: CF card, 32 MB to 2 GB capacity; 128 MB CF card is included as standard
Recording cycle: 100, 200, 500 ms*; 1, 2, 3, 5, 10, 15, 20, 30 s; 1, 2, 3, 5, 10, 15, 20, 30, 60 min
Numbers of Logging Files: 250/numbers of used groups
Logging Data: Measured data; file name (group name), time of day, month and year of recording start, tag, measured data, alarm status/types
Storing Types: Binary/CSV type
Storing Methods:
Manual Start/Stop: Dedicated key operation
Schedule: Designation for time of day and date
Trigger Signal: Alarm event *Pre-trigger is selectable
Measuring Numbers of Pre-Trigger: Maximum 950 data
Recording Cycle*: Up to 3 groups of 12 points/group can
be programmed for 100, 200 and 500ms recording; 5 groups
of 44 points/group for recording with 1s or more (total of
100 points programming possible)
Recording Duration (CF Card):
When 6 channels recorded in sampling mode (real data) |
| Recording Cycle |
128MB |
256MB |
512MB |
1GB |
2GB |
| 0.1 sec |
6.32 days |
12.6 days |
25.3 days |
50.6 days |
101 days |
| 1 sec |
63.2 days |
126 days |
253 days |
1.4 yrs |
2.8 yrs |
| 60 sec |
10 yrs |
21 yrs |
42 yrs |
83 yrs |
166 yrs |
|
When 12 channels recorded in sampling mode (real data) |
| Recording Cycle |
128MB |
256MB |
512MB |
1GB |
2GB |
| 0.1 sec |
3.16 days |
6.32 days |
12.6 days |
25.3 days |
50.6 days |
| 1 sec |
31.6 days |
63.2 days |
126 days |
253 yrs |
1.4 yrs |
| 60 sec |
5.2 yrs |
10 yrs |
21 yrs |
42 yrs |
83 yrs |
|
COMPUTATION SPECIFICATIONS
Computation Points: Maximum 44 points
Computation Types:
Arithmetic Operations: Addition, subtraction, multiplication, division, remainder, exponential
Comparison Operations: Equality, inequality, great, less, equality/great, equality/less
Logical Operations: AND, OR, XOR, NOT
General Functions: Round-up, round-down, absolute value, square root, exponent of e, natural logarithm, common logarithm
Integration Operations: Analog integration, digital integration
Channel Data Operations: Measured data computation, calculated data computation
ALARM SPECIFICATIONS
Setups: Up to 4 alarms can be programmed per channel
Alarm Types: Upper limit, lower limit, differential higher limit, differential lower limit (deadband is selectable), abnormal data
Delay Function: Setup range of alarm delay, 1 to 3600 sec
Alarm Settings: AND/OR selectable
Communication Functions Network
FTP Server: Data file can be read from the network computer
Web Server: Conformed to HTTP1.0; displays the alarm,
information of maintenance by browser software (Internet
Explorer 5.0 or later, Net Scape 6.0 or later, Opera 7 or later)
* User’s ID and password registration available
E-Mail: E-Mail notification at specified time for alarm
activation; report data at specified time is selectable from
all registered
USB COMMUNICATIONS
USB: Communication type, USB1.1
Transfer Systems: Bulk transfer, control transfer
Communication Contents: File transfer by virtual drive
connection
GENERAL SPECIFICATIONS
Rated Power Voltage: 100 to 240 Vac (universal power supply); 50/60 Hz
Maximum Power Consumption: 50 VA (DO: all points ON, 240 Vac)
Reference Operating Condition:
Ambient Temperature/Humidity Range: 21 to 25°C, 45 to 65% RH
Power Voltage: 100 Vac, ±1.0%
Power Frequency: 50/60 Hz ±0.5%
Attitude: Left/right 0°, forward/backward 0°
Warm-Up Time: Longer than 30 minutes
Normal Operating Condition:
Ambient Temperature/Humidity Range: 0 to 50°C, 20 to 80% RH
Power Voltage: 90 to 264 Vac
Power Frequency: 50/60 Hz ±2%
Attitude: Left/right 0°, forward tilting 0°, backward tilting 0° to 20°
Transportation Condition (At the Packed Condition on Shipment from Our Factory):
Ambient Temperature/Humidity Range: -20 to 60°C, 5 to 90% RH (note: no dew condensation)
Vibration: 10 to 60 Hz, 0.5 G (4.9 m/S2) or less
Impact: 40 G (392 m/ S2) or less
Storage Condition: Ambient temperature/humidity range -20 to 60°C, 5 to 90%RH (note: no dew condensation)
Power Failure Protection: Setups and data are backed up by flash memory
Clock: Lithium battery backs up RAM (minimum 5 years)
Insulation Resistance:
Secondary Terminals and Protective Conductor Terminals: 20 MΩ or more at 500 Vdc
Primary Terminals and Protective Conductor Terminals: 20 MΩ or more at 500 Vdc
Primary and Secondary Terminals: 20 MΩ or more at 500 Vdc
Dielectric Strength:
Secondary Terminals and Protective Conductor Terminals: 1 minute at 500 Vac
Primary Terminals and Protective Conductor Terminals: 1 minute at 1500 Vac
Primary and Secondary Terminals: 1 minute at 2300 Vac
Case Assembly Material:
Door Frame: ABS resin
Case: Steel
Color:
Door Frame: Black (equivalent to Mussel N3.0)
Case: Painting color, gray (equivalent to Mussel N7.0)
Weight: 2.2 kg (4.85 lbs)
Mounting: Panel mounting
OPTIONS SPECIFICATIONS
| Name |
Contents |
| Alarm Output |
Relay contact ouput at alarm activation and abnormal input; output points: 12; contact capacity: mechanical relay, 100 Vac 0.5 A, 240 Vac 0.2 A |
| Communication Interface |
Communication interface for high-order instruments RS232C/RS485 switchable
*Ethernet and USB equipped as standard |
Terminal Screws:
Power Terminals/Protective Conductor Terminals/Communications Terminals: M4.0
Measuring Input Terminals/Alarm Output Terminals/Remote Contact Terminals: M3.5
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with complete operators manual
Ordering Example: (1) RD9912 12 points paperless recorder, ¥36,105.00
|
|
|
|
|
| |
|
