Portable Thermometer/Data Loggers with SD Card and Thermocouple Input |
| RDXL-SD Series |
|
 |
|
|
|
|
|
¥
3,320.00
RDXL4SD
|
| • |
For a CE compliant alternative please see: RDXL6SD-USB
|
| • |
|
| • |
RDXL12SD: Thermocouple Thermometer & Data Logger with 12 channels
|
| • |
RDXL4SD: 4 Channel Thermocouple or 2 Channel RTD Thermometer & Data Logger
|
| • |
Thermocouple Types K, J, T, E, R and S
|
| • |
RDXL12SD Displays Up to 8 Channels Simultaneously
|
| • |
RDXL4SD Displays Up to 4 Channels Simultaneously
|
| • |
Data Hold, Record Max and Min Reading
|
| • |
RS232/USB PC Computer Interface
|
| • |
LCD with Green Backlight
|
| • |
SD Card Capacity: 1 to 16 GB
|
View related products - Data Loggers
|
| |
|
|
|
 |
For a CE compliant alternative please see:
RDXL6SD-USB
Click on this link if you need more information about a Data Logger.

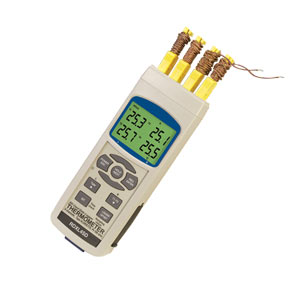

RDXL4SD and RDXL12SD thermometer/data loggers are portable, handheld models with a
backlit display and built-in
analysis functions. The data loggers
are powered by internal batteries
and are capable of sampling,
processing and displaying
measurements without being
connected to a computer. With their
high resolution and fast analogue to
digital converter (ADC), the
RDXL4SD and RDXL12SD meet
the majority of data logging
requirements in most industrial
applications.
Real-time SD memory card data
logger, built-in clock and calendar,
real time data recorder. Auto
sampling time can be set from 1 to 3600
seconds. The user can also log data manually by
setting the sampling time to zero.
These real-time data loggers save
the 4- or 12-channels of measured temperature
data, along with the
time information (year, month,
date, minute, second) into the
SD memory card. Data can be subsequently downloaded to Excel for analysis.
The RDXL4SD has four thermocouple input channels or two Pt100 input channels. The display can be set to to show channels 1 to 4 simultaneously or T1, T2 and T1-T2
The RDXL12SD has twelve thermocouple input channels. The display can show measurements from up to 8 channels simultaneously. A push-button toggles the display to the remaining channels.
Specifications
4 Channels: T1, T2, T3, T4, T1-T2
LCD Display: 52 x 38 mm with green backlight
12 Channels: T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11 and T12.
LCD Display: 82 x 61 mm with green backlight
Sensor Inputs:
RDXL12SD: Thermocouples Type J, K, T, E, R and S.
RDXL4SD: 4-Channels for Thermocouples Type J, K, T, E, R and S. Or 2-channels for Pt100 Ω (DIN IEC 751) 2-wire
Resolution: 0.1/1°C or °F
Sampling Time: 1 to 3600 seconds
Memory Card: SD memory card 1 to 16 GB
Offset Adjustment: Available for Type K, J, T, E, R/S and Pt100 Ω
Memory Recall: Max and min value
Sampling Time of Display: Approx 1 second
Data Output: RS232/USB PC computer interface
Power Off: Auto shut off saves battery life or manual off by push button
Operating Temperature: 0 to 50°C
Operating Humidity: Less than 85% RH
Power Supply: Alkaline or heavy-duty AA 1.5V batteries ( x 6 for RDXL4SD and x 8 for RDXL12SD). Optional AC adapter
Power Consumption: Approx 8 mA without logging; 30 mA when logging. Backlight additional 14mA
Weight:
RDXL12SD: 945 g
RDXL4SD: 490 g
Dimensions:
RDXL12SD: 225 H x 125 W x 64 mm D
RDXL4SD: 177 H x 68 W x 45 mm D
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) RDXL4SD 4-channel digital Type K thermometer with 2 GB SD card, ¥3,320.00
|
|
|
|
|
| |
|
