Handheld Hygro Thermometer Data Logger |
| RH318 |
|
 |
|
|
Handheld Hygro Thermometer Data Logger
 |
| Click for larger image. |
|
|
|
|
| • |
Thermistor Sensor for Temperature Measurement, Fast Response Time
|
| • |
Large Backlit Dual LCD Display, MAX/MIN/HOLD Function
|
| • |
Dew Point Measurement
|
| • |
16,000 Record Data Logger
|
| • |
USB Cable Included, RS232 Cable (Optional)
|
| • |
Interchangeable Probes
|
| • |
Windows® Software
|
| • |
Auto Power Off
|
| • |
Low Battery Indicator
|
| • |
Tilt Stand Included
|
View related products - Relative Humidity Measurement Instruments
|
| |
|
|
|
 |

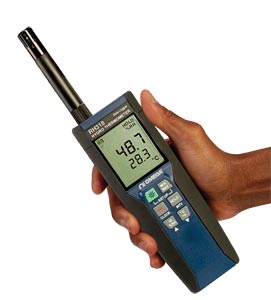

The RH318 is a low cost, high
performance handheld meter with
data logging ability. It offers a large
dual back-lit display to show the
temperature and humidity from a
handheld probe and can display a
dew point measurement. The
temperature/humidity probe uses a
semiconductor and polymer
capacitive sensor and a thermistor
temperature sensor. Windows®
based software and USB interface
cable is included to allow real time
or recorded data to be read by a
PC through the USB/RS232 port
(RS232 interface cable is optional).
Probe can extend up to 1.5 m (5')
with optional extension cable.
SPECIFICATIONS
Sensor Type: Electronic capacitance polymer film sensor/NTC
Relative Humidity Range: 0 to 100% RH
Temperature Range: -20 to 60°C (-4 to 140°F)
Dew Point Temperature Range: -20 to 60°C (-4 to 140°F)
Resolution: 0.1% RH, 0.1°C, 0.1°F
Accuracy Probe (RH318-RP): <10% RH, >90% RH ±4.0% RH 10% RH to 90% RH ±2.0% RH -20 to 60°C (-4 to 140°F) ±0.8°C (±1.5°F)
Response Time (In Slow Moving Air):
Humidity: 180 s
Temperature: 10 s
Sensor Hysteresis: <1.5% RH
Temperature Coefficient: 0.1 x (specified accuracy) per 1°C (<23°C or >23°C)
Sample Rate: Two times per second
Battery Type: 9V battery (included)
Battery Lifetime: Approx. 80 hours (alkaline battery)
AC Adaptor (Optional): 9 Vdc (8 to 10 Vdc max )
Operation Temperature: 0 to 40°C (32 to 104°F)
Operation Humidity: 10 to 90% RH
Storage Temperature: -10 to 60°C (14 to 140°F)
Storage Humidity: 10 to 75% RH
Dimensions
Meter: 185 L × 65 W × 36 mm H (7.3 x 2.6 x 1.4")
Probe: 15 D x 94 mm L (0.6 x 3.7")
Weight: Approx. 285 g (10 oz)
Environment Conditions:
Altitude: Up to 2000 m (6562')
Relative Humidity: 90% max
Operation Ambient Temperature: 0 to 40°C (32 to 104°F)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with probe, NIST calibration, USB interface cable, Windows® software, carrying case, tilt stand, 9V battery, and operator’s manual.
Ordering Example: (1) RH318 Handheld hygrometer thermometer data logger, ¥3,245.00
|
|
|
|
|
| |
|
