Humidity Temperature Handheld Meters
RH820 Series
1 year warranty CE

Humidity Meter

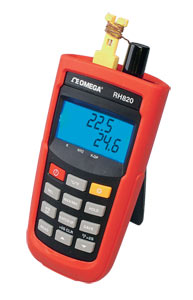

RH820 Series:Humidity Temperature Handheld Meters
Click for larger image.

• USB Port Provides Excellent User Interface (RH820U)
• Wireless 2-Way Transmission (RH820W)
• 2 Temperature Sensors (Internal NTC and External K-Type) and Humidity Sensor Together
• Wet/Dry Bulb, Dew Point and %RH
• MAX/MIN/AVG/REL/HOLD Function

View related products - Relative Humidity Measurement Instruments

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

High performance humidity handheld meters available with USB or wireless connectivity. They offer a double display to show the temperature and humidity from built in sensors and can alternately display data from a separate Type K thermocouple connected via SMP type miniature connector. Save function allows storage of up to 256 readings (no time-stamp) to internal non-volatile memory. Software for USB and wireless versions is included to allow internal, external temperature, and RH data to be recorded by a PC. Interface cable is included with the USB version; receiver with the wireless version.

SPECIFICATIONS
Display: 3.5" digit LCD with a maximum reading of 1999
Low Battery Indication: The "Low Battery Icon" is displayed when the battery voltage drops below the operating level
Operating Environment: 0 to 50°C (32 to 122°F) at <80% RH
    Storage Environment: -20 to 60°C (-4 to 140°F), 0 to 70% RH with battery removed from meter
    Accuracy: Stated accuracy at 23°C ±5°C, <75% RH
Battery: Four 1.5V "AAA" (included)
Dimensions: 160 H x 83 W x 38 mm D (6.3 x 3.3 x 1.5")
Weight: Approx 265 g (0.6 lb) including batteries
Temperature Range: -50 to 1000°C (-58 to 1832°F)
    Accuracy: ±(0.1% rdg +1°C) on -50 to 1000°C; ±(0.1% rdg +2°F) on -58 to 1832°F
Temperature Sensor: Thermistor temperature sensor
Range: 0 to 60°C (32 to 140°F)
Resolution: 0.1°C/°F
Accuracy: ±2°C on 0 to 10°C, ±0.5°C on 10 to 45°C; ±2°C on 45 to 60°C; ±4°F on 32 to 50°F, ±1°F on 50 to 113°F; ±4°F on 113 to 140°F
Relative Humidity Sensor: Capacitive humidity sensor
    Range: 0 to 100% RH, noncondensing
    Accuracy: ±2.5% at 25°C (77°F), 10 to 90% RH; ±5% at 25°C (77°F), 0 to 10% RH, 90 to 100% RH
Sensor Response Time for 90% of Total Range: 60 sec typical
Sensor Hysteresis (Excursion of 10% to 90% to 10% RH): ±1% RH typical
RH820W Frequency Range: 910~920 mHz, low current consumption less than 1 mA, the transmitting distance can reach 25M
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 RH820 101 Weeks   ¥1,955.00    Humidity/temperature handheld meter
 RH820U    Consult sales   Humidity/temperature handheld meter with USB interface
 RH820W 2 Weeks   ¥2,540.00    Humidity/temperature handheld meter wireless interface
 Accessories
 HH800-ADAPTOR In Stock   ¥209.00    AC adaptor (USB model only)
 SC-800    Consult sales   Soft case for HH800 series
† Price are shown in RMB.

 Note: Comes complete with 4 "AAA" batteries, Type K thermocouple, rubber boot and operator's manual. RS820W also comes with software and receiver, RH820U comes with software and USB cable.
  Ordering Example: (1) HH800-ADAPTOR AC adaptor, ¥209.00,
