Screw Plug Immersion Heaters for Small Tanks - RIN Series |
| RIN Series |
|
 |
|
|

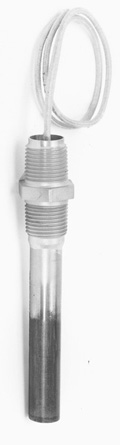

Screw Plug Immersion Heaters for Small Tanks
 |
| Click for larger image. |
|
|
¥
4,075.00
RIN-10/120V
|
| • |
1/2" and 3/4" NPT Brass or Steel Screw Plugs
|
| • |
100 to 1000 Watts
|
| • |
120 and 240 V, 1 Phase
|
| • |
Dual Pipe Thread Construction
|
| • |
Premium Grade Incoloy or Stainless Steel Sheath
|
View related products - Immersion Heaters
|
| |
|
|
|
 |
There screw plug immersion heaters feature dual pipe thread construction which allows easy installation into your process and quick connection of electrical conduit.
SPECIFICATIONS Wattage: 100 to 1000 Watt Power: 120, or 240 V, 1 phase Watt Density: 17-40 W/in2 Sheath: Type RIN has 5/8" or 3/4" diameter Incoloy sheath; Type RINO has a 5/8" or 3/4" diameter stainless steel sheath. Screw Plug: Type RIN has 1/2" or 3/4" NPT brass fitting. Type RINO has 1/2" or 3/4" NPT steel fitting.
|
|
|
|
|
|
† Price are shown in RMB.
Note: CAUTION AND WARNING! Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel.
Ordering Example: (1) RIN-10/120V 100 Watt, 120 V screw plug immersion heater, ¥4,075.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Sheath and Screw Materials
|
| |
Select
RIN for Incoloy sheath—brass screw plug
RINO for stainless steel sheath — Steel screw plug
|
(2)
|
Wattage and Screw Plug Thread Size
|
| |
Select
10/ for 100 Watts with 1/2 inch NPT
15/ for 150 Watts with 1/2 inch NPT
25/ for 250 Watts with 1/2 inch NPT
50/ for 500 Watts with 1/2 inch NPT
75/ for 750 Watts with 1/2 inch NPT
130/ for 300 Watts with 3/4 inch NPT
150/ for 500 Watts with 3/4 inch NPT
175/ for 750 Watts with 3/4 inch NPT
1100/ for 1000 Watts with 3/4 inch NPT
|
(3)
|
Voltage
|
| |
Select
120V for 120 Vac
240V for 240 Vac
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
