RTD Sensors Fluid Immersion High-Accuracy
RTD-810

RTD Sensors Fluid Immersion High-Accuracy

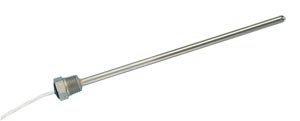

RTD-810:RTD Sensors Fluid Immersion High-Accuracy
Click for larger image.

¥ 1,245.00  RTD-810
• Sensor Contains a Precision 100 Ohm Class A DIN Platinum Element
• Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C
• 3-Wire Configuration with PFA Insulated and Jacketed Lead Wire and Miniature 3-Pin Connector with Mating Connector
• Temperature Range -200 to 750ºC (Cable to 260ºC)
• Sensor Includes a Stainless Steel Probe Stem and 1/8NPT Mounting Fitting
• Mating Connector Sold Separately!

View related products - RTD (PT100) Probes, Elements and Assemblies

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

This immersion sensor has a closed ended stainless steel tube, 1/8NPT mounting fitting, 100 Ohm Class A DIN platinum element with PFA insulated & jacketed leads and miniature connector. Its rugged design is ideally suited for fluid measurements and pressurized systems where the sensor must mount into a threaded port. With a maximum temperature rating of 750ºC, this sensor can be used in a wide variety of applications. Combine the RTD-810 with any of the Omega extension cables, hand-held meters, controllers, displays or thermometers to form a complete measurement and control system.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 RTD-810 2 Weeks   ¥1,245.00    Stainless Steel closed end housing with 1/8 NPT process thread. Class A. 1m (40") PFA lead wire.
 RTD-810-MTP 6 Weeks   ¥1,465.00    Stainless Steel closed end housing with 1/8 NPT process thread. Class A. 1m (40") PFA lead wire with MTP Male connector
 RTD-810-TA3F 6 Weeks   ¥1,460.00    Stainless Steel closed end housing with 1/8 NPT process thread. Class A. 1m (40") PFA lead wire with Male Audio connector
 Sold Separately, Mating Connector & clamp & other accessory Part Number
 OTP-U-F In Stock   ¥125.00    Mating Connecter for OTP Termination End.
 MTP-U-F In Stock   ¥51.00    Mating Connecter for MTP Termination End.
 SPRTX-M2 7 Weeks   ¥2,620.00    4 to 20 milliamp Plug-In Transmitter
 HH804 In Stock   ¥1,385.00    Handheld, Dual Input, Pt3926, Pt3916 and Pt385 RTD Thermometer, Min/Max/Avg, Rel, Hold functions, Accuracy: ± 0.05%; Includes male Mini Din mating connectors
 CN1A-RTD 2 Weeks   ¥2,310.00    1/16 DIN On-Off LCD Temperature Controller
 DRF-RTD-115VAC-0/200C-4/20    Consult sales   RTD Input Signal Conditioner
 iDRN-RTD    Consult sales   Signal Conditioner with Analog Input for RTD Sensors
 DP460-RTD    Consult sales   Economical Temperature Meter
† Price are shown in RMB.

 Note: Terminations Available: Provided with standard miniature connector; for larger sized connector, add “-OTP” to model number and $7 to price; for audio connector, add “-TA3F” to model number and $17 to price. If ordering with a TA3F connector, please specify wiring arraingement.

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
  Ordering Example: (1) RTD-810 100 Ohm Class A DIN Platinum RTD with Stainless Steel Probe and 1/8NPT Mounting Thread, 40, ¥1,245.00
