NEMA Type 12 Operator Workstations - Electrical Cabinets for Industrial Operator Interface to Mount Push Buttons and HMI's.

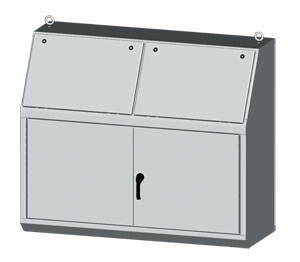

SCE-14 Series Two Door Operator Workstations
1 year warranty

SCE-14 Series Two Door Operator Workstations:NEMA Type 12 Operator Workstations - Electrical Cabinets for Industrial Operator Interface to Mount Push Buttons and HMI's.
Click for larger image.

¥ 53,280.00  SCE-1448BD
• 0.104" Carbon Steel
• Sloping Control Panel Attached with Concealed Hinge on Bottom Edge
• Door opens to 90º
• Black Zinc Die Cast Keylocking/ Padlocking Handles on Front and Rear Doors
• 3-Point Latching Mechanism
• Seams Continuously Welded and Ground Smooth
• Oil-Resistant Gasket on Door
• Optional Equipment Mount to Horizontal Channels Welded to Sides
• Flush Mounted Doors
• Optional Writing Desk and Top Section Available
• Interior Print Pocket
• Removable Eyebolts in Console Body
• Ground Stud on Door

View related products - NEMA Electrical Enclosures

Click to scroll below to order See Specs PDF View a printer friendly page

Application
Designed for electronic controls and instruments. Equipment can be mounted on the sloping control panel door. Interior components mount to stationary panels. Heavy duty construction provides protection from dirt, oil, dust, and water.

Finish
White powder coated inside and ANSI-61 recoatable gray finish outside over phosphatized surfaces. Optional top sections are ANSI-61 recoatable gray finish inside and outside. Optional panels are powder coated white.

Industry Standards
NEMA Type 12 & Type 13
UL Listed Type 12
CSA Type 12
IEC 60529 IP 55
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 SERIES 14 TWO DOOR CONSOLES -- 48" WIDE
 SCE-1448BD 4 Weeks   ¥53,280.00    Console body, Height=50.00 Width=48.00 Depth=23.00
 SCE-1448T 4 Weeks   ¥13,485.00    Console top, Height=16.00 Width=48.00 Depth=12.50
 SCE-1448P2 4 Weeks   ¥4,510.00    Half panel, Height=22.00 Width=41.00
 SCE-1448P3 4 Weeks   ¥7,240.00    Full panel, Height=42.25 Width=41.00
 SCE-1448W 4 Weeks   ¥4,390.00    Writing desk, Height=48.00 Width=10.00
 SERIES 14 TWO DOOR CONSOLES -- 60" WIDE
 SCE-1460BD 4 Weeks   ¥53,195.00    Console body, Height=50.00 Width=60.00 Depth=23.00
 SCE-1460T 4 Weeks   ¥15,580.00    Console top, Height=16.00 Width=60.00 Depth=12.50
 SCE-1460P2 4 Weeks   ¥5,275.00    Half panel, Height=22.00 Width=53.00
 SCE-1460P3 4 Weeks   ¥8,280.00    Full panel, Height=42.25 Width=53.00
 SCE-1460W 4 Weeks   ¥5,170.00    Writing desk, Height=60.00 Width=10.00
 SERIES 14 TWO DOOR CONSOLES -- 72" WIDE
 SCE-1472BD 5 Weeks   ¥60,315.00    Console body, Height=50.00 Width=72.00 Depth=23.00
 SCE-1472T 4 Weeks   ¥17,690.00    Console top, Height=16.00 Width=72.00 Depth=12.50
 SCE-1472P3 4 Weeks   ¥9,930.00    Full panel, Height=42.25 Width=65.00
 SCE-1472W 2 Weeks   ¥6,080.00    Writing desk, Height=72.00 Width=10.00
† Price are shown in RMB.
