PRECISION STRAIN GAGES
2-ELEMENT, 90º BIAXIAL ROSETTE
SGD-3/120-RYB21

2-ELEMENT, 90º Corner Tee Rosettes

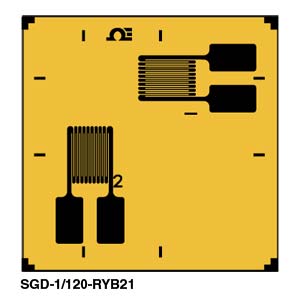

SGD-3/120-RYB21:PRECISION STRAIN GAGES2-ELEMENT, 90º BIAXIAL ROSETTE
Click for larger image.

¥ 1,190.00  SGD-1/120-RYB21
• Conveniently Priced per Pack of 5
• General Purpose Strain Gages
• Very Flexible, Mechanically Strong
• Small Bending Radius
• Ribbon Leads or Solder Pad Termination
• Clear Alignment Marks
• Apply with Cold or Hot Curing Adhesiver

View related products - Strain Gages, Accessories and Instrumentation

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

OMEGA strain gages are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurements.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Ribbon Leads, Matched to Steel (PRICE PER PKG OF 5)
 SGD-1/120-RYB21 2 Weeks   ¥1,190.00    1.6 mm Grid, 120 ohms
 SGD-1/350-RYB21 6 Weeks   ¥1,190.00    1.6 mm Grid, 350 ohms
 SGD-3/120-RYB21 6 Weeks   ¥1,190.00    3 mm Grid, 120 ohms
 SGD-3/350-RYB21 3 Weeks   ¥1,190.00    3 mm Grid, 350 ohms
 SGD-6/120-RYB21 6 Weeks   ¥1,365.00    6 mm Grid, 120 ohms
 SGD-6/350-RYB21 6 Weeks   ¥1,365.00    6 mm Grid, 350 ohms
 Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGD-1/120-RYB23 6 Weeks   ¥1,190.00    1.6 mm Grid, 120 ohms
 SGD-1/350-RYB23 6 Weeks   ¥1,200.00    1.6 mm Grid, 350 ohms
 SGD-3/120-RYB23 6 Weeks   ¥1,190.00    3 mm Grid, 120 ohms
 SGD-3/350-RYB23 6 Weeks   ¥1,190.00    3 mm Grid, 350 ohms
 SGD-6/120-RYB23 6 Weeks   ¥1,365.00    6 mm Grid, 120 ohms
 SGD-6/350-RYB23 6 Weeks   ¥1,365.00    6 mm Grid, 350 ohms
 Solder Pads, Matched to Steel (PRICE PER PKG OF 5)
 SGD-1/120-RYB81 6 Weeks   ¥920.00    1.6 mm Grid, 120 ohms
 SGD-1/350-RYB81 6 Weeks   ¥920.00    1.6 mm Grid, 350 ohms
 SGD-3/120-RYB81 6 Weeks   ¥875.00    3 mm Grid, 120 ohms
 SGD-3/350-RYB81 2 Weeks   ¥875.00    3 mm Grid, 350 ohms
 SGD-6/120-RYB81 6 Weeks   ¥1,190.00    6 mm Grid, 120 ohms
 SGD-6/350-RYB81 6 Weeks   ¥1,190.00    6 mm Grid, 350 ohms
 Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGD-1/120-RYB83 6 Weeks   ¥920.00    1.6 mm Grid, 120 ohms
 SGD-1/350-RYB83 6 Weeks   ¥1,310.00    1.6 mm Grid, 350 ohms
 SGD-3/120-RYB83 6 Weeks   ¥920.00    3 mm Grid, 120 ohms
 SGD-3/350-RYB83 6 Weeks   ¥1,310.00    3 mm Grid, 350 ohms
 SGD-6/120-RYB83 6 Weeks   ¥1,190.00    6 mm Grid, 120 ohms
 SGD-6/350-RYB83 6 Weeks   ¥1,445.00    6 mm Grid, 350 ohms
† Price are shown in RMB.

 Note: Sold in packages of 5 strain gages.
  Ordering Example: (1) SGD-3/120-RYB21 Pkg of 5, 90° Biaxial Strain Gage, 3 mm grid, 120 ohms, ribbon leads, matched to steel, ¥1,190.00
