BIAXIAL STRAIN GAGES FOR MEASURING AXIAL STRAIN, 0/90° GAGE PATTERN
SGD-2/350-XY11

BIAXIAL 0/90 STRAIN GAGES FOR MEASURING AXIAL STRAIN

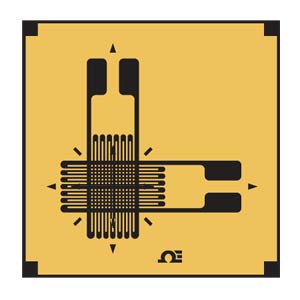

SGD-2/350-XY11:BIAXIAL STRAIN GAGES FOR MEASURING AXIAL STRAIN, 0/90° GAGE PATTERN
Click for larger image.

¥ 1,785.00  SGD-3/350-XY43
• Conveniently Priced per Pack of 5
• X-Y Pattern for Axial Strain
• Very Flexible, Mechanically Strong
• Small Bending Radius
• Broad Temperature Range
• Clear Alignment Marks
• Affix with Cold or Hot Curing Adhesives

View related products - Strain Gages, Accessories and Instrumentation

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

0/90º STACKED TEE GAGE PATTERN FOR MEASURING AXIAL STRAIN
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Encapsulated with Ribbon Leads, Matched to Steel (PRICE PER PKG OF 5)
 SGD-2/120-XY11 6 Weeks   ¥1,775.00    2 mm Grid, 120 Ohms, X-Y Pattern
 SGD-2/350-XY11 6 Weeks   ¥1,880.00    2 mm Grid, 350 Ohms, X-Y Pattern
 SGD-3/120-XY11 6 Weeks   ¥1,775.00    3 mm Grid, 120 Ohms, X-Y Pattern
 SGD-3/350-XY11 6 Weeks   ¥1,750.00    3 mm Grid, 350 Ohms, X-Y Pattern
 SGD-7/120-XY11 6 Weeks   ¥2,405.00    7 mm Grid, 120 Ohms, X-Y Pattern
 SGD-7/350-XY11 6 Weeks   ¥2,415.00    7 mm Grid, 350 Ohms, X-Y Pattern
 Encapsulated with Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGD-2/120-XY13 6 Weeks   ¥1,775.00    2 mm Grid, 120 Ohms, X-Y Pattern
 SGD-2/350-XY13 6 Weeks   ¥1,985.00    2 mm Grid, 350 Ohms, X-Y Pattern
 SGD-3/120-XY13 6 Weeks   ¥1,775.00    3 mm Grid, 120 Ohms, X-Y Pattern
 SGD-3/350-XY13 6 Weeks   ¥1,840.00    3 mm Grid, 350 Ohms, X-Y Pattern
 SGD-7/120-XY13 6 Weeks   ¥2,405.00    7 mm Grid, 120 Ohms, X-Y Pattern
 SGD-7/350-XY13 6 Weeks   ¥2,405.00    7 mm Grid, 350 Ohms, X-Y Pattern
 Encapsulated with Solder Pads, Matched to Steel (PRICE PER PKG OF 5)
 SGD-2/120-XY41 6 Weeks   ¥1,650.00    2 mm Grid, 120 Ohms, X-Y Pattern
 SGD-2/350-XY41 6 Weeks   ¥1,750.00    2 mm Grid, 350 Ohms, X-Y Pattern
 SGD-3/120-XY41 6 Weeks   ¥1,650.00    3 mm Grid, 120 Ohms, X-Y Pattern
 SGD-3/350-XY41 6 Weeks   ¥1,885.00    3 mm Grid, 350 Ohms, X-Y Pattern
 SGD-7/120-XY41 6 Weeks   ¥2,095.00    7 mm Grid, 120 Ohms, X-Y Pattern
 SGD-7/350-XY41 6 Weeks   ¥2,105.00    7 mm Grid, 350 Ohms, X-Y Pattern
 Encapsulated with Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGD-2/120-XY43 6 Weeks   ¥1,650.00    2 mm Grid, 120 Ohms, X-Y Pattern
 SGD-2/350-XY43 6 Weeks   ¥1,850.00    2 mm Grid, 350 Ohms, X-Y Pattern
 SGD-3/120-XY43 6 Weeks   ¥1,650.00    3 mm Grid, 120 Ohms, X-Y Pattern
 SGD-3/350-XY43 6 Weeks   ¥1,785.00    3 mm Grid, 350 Ohms, X-Y Pattern
 SGD-7/120-XY43 2 Weeks   ¥2,105.00    7 mm Grid, 120 Ohms, X-Y Pattern
 SGD-7/350-XY43 6 Weeks   ¥2,290.00    7 mm Grid, 350 Ohms, X-Y Pattern
† Price are shown in RMB.

 Note: Packages of 5
  Ordering Example: (1) SGD-2/350-XY11 5-Pack 2 mm grid, 350 ohm X-Y strain gages with Ribbon Leads, matched to steel, ¥1,880.00
