Precision Strain Gages Dual-Grid for Bending Strains
SGD-2/350-DY11

STRAIN GAGES DUAL-GRID

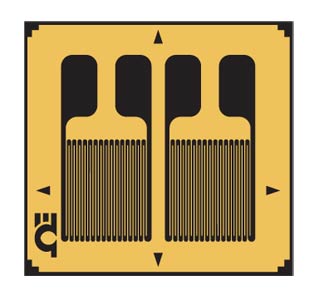

SGD-2/350-DY11:Precision Strain Gages Dual-Grid for Bending Strains
Click for larger image.

¥ 1,060.00  SGD-7/350-DY11
• Precision Parallel Grid Gages for Bending Strain
• Conveniently Priced per Pack of 5
• Very Flexible, Mechanically Strong
• Small Bending Radius
• Broad Temperature Range
• Clear Alignment Marks
• Attach with Hot or Cold cure Adhesives

View related products - Strain Gages, Accessories and Instrumentation

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

OMEGA™ strain gages are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Encapsulated with Ribbon Leads, Matched to Steel (PRICE PER PKG OF 5)
 SGD-2/350-DY11 6 Weeks   ¥945.00    2 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-2/1000-DY11 6 Weeks   ¥950.00    2 mm grid, 1000 ohms, Dual Parallel Grid Pattern
 SGD-3/350-DY11 6 Weeks   ¥1,030.00    3 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-3/1000-DY11 6 Weeks   ¥1,035.00    3 mm grid, 1000 ohms, Dual Parallel Grid Pattern
 SGD-7/350-DY11 2 Weeks   ¥1,060.00    7 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-7/1000-DY11 6 Weeks   ¥1,120.00    7 mm grid, 1000 ohms, Dual Parallel Grid Pattern
 Encapsulated with Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGD-2/350-DY13 6 Weeks   ¥945.00    2 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-2/1000-DY13 6 Weeks   ¥945.00    2 mm grid, 1000 ohms, Dual Parallel Grid Pattern
 SGD-3/350-DY13 6 Weeks   ¥1,030.00    3 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-3/1000-DY13 6 Weeks   ¥1,115.00    3 mm grid, 1000 ohms, Dual Parallel Grid Pattern
 SGD-7/350-DY13 2 Weeks   ¥1,115.00    7 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-7/1000-DY13 2 Weeks   ¥1,035.00    7 mm grid, 1000 ohms, Dual Parallel Grid Pattern
 Encapsulated with Solder Pads, Matched to Steel (PRICE PER PKG OF 5)
 SGD-2/350-DY41 6 Weeks   ¥785.00    2 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-2/1000-DY41 6 Weeks   ¥785.00    2 mm grid, 1000 ohms, Dual Parallel Grid Pattern
 SGD-3/350-DY41 2 Weeks   ¥895.00    3 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-3/1000-DY41 6 Weeks   ¥980.00    3 mm grid, 1000 ohms, Dual Parallel Grid Pattern
 SGD-7/350-DY41 2 Weeks   ¥970.00    7 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-7/1000-DY41 6 Weeks   ¥835.00    7 mm grid, 1000 ohms, Dual Parallel Grid Pattern
 Encapsulated with Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGD-2/350-DY43 6 Weeks   ¥785.00    2 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-2/1000-DY43 6 Weeks   ¥895.00    2 mm grid, 1000 ohms, Dual Parallel Grid Pattern
 SGD-3/350-DY43 6 Weeks   ¥895.00    3 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-3/1000-DY43 6 Weeks   ¥785.00    3 mm grid, 1000 ohms, Dual Parallel Grid Pattern
 SGD-7/350-DY43 6 Weeks   ¥975.00    7 mm grid, 350 ohms, Dual Parallel Grid Pattern
 SGD-7/1000-DY43 6 Weeks   ¥835.00    7 mm grid, 1000 ohms, Dual Parallel Grid Pattern
† Price are shown in RMB.

 Note: Sold in Packages of 5 Strain Gages
  Ordering Example: (1) SGD-2/1000-DY11 Pkg of 5, 2 mm Grid, 1000 Ohms, Dual Grid Strain gages, ¥950.00
