Rosette Strain Gages: 45° and 60° Gage Patterns
SGD-3/350-RY11

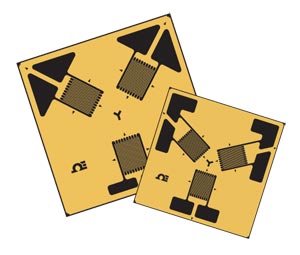

SGD-3/350-RY11:Rosette Strain Gages: 45° and 60° Gage Patterns
Click for larger image.

¥ 2,060.00  SGD-3/120-RY11
• Conveniently Priced per Pack of 5
• 45° and 60° Rosettes to Determine Unknown Strain
• Very Flexible, Mechanically Strong
• Broad Temperature Range
• Clear Alignment Marks
• Affix with Hot Cure or Cold Adhesives

View related products - Strain Gages, Accessories and Instrumentation

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

OMEGA™ strain gages are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Encapuslated with Ribbon Leads, Matched to Steel (PRICE PER PKG OF 5)
 SGD-3/120-RY11 6 Weeks   ¥2,060.00    3 mm grid, 120 ohm, 0°/135°/270° Pattern
 SGD-3/350-RY11 6 Weeks   ¥2,060.00    3 mm grid, 350 ohm, 0°/135°/270° Pattern
 SGD-3/120-RY41 2 Weeks   ¥2,140.00    3 mm grid, 120 ohm, 0°/120°/240° Pattern
 SGD-3/350-RY41 6 Weeks   ¥2,060.00    3 mm grid, 350 ohm, 0°/120°/240° Pattern
 Encapuslated with Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGD-3/120-RY13 6 Weeks   ¥2,060.00    3 mm grid, 120 ohm, 0°/135°/270° Pattern
 SGD-3/350-RY13 2 Weeks   ¥2,060.00    3 mm grid, 350 ohm, 0°/135°/270° Pattern
 SGD-3/120-RY43 6 Weeks   ¥2,060.00    3 mm grid, 120 ohm, 0°/120°/240° Pattern
 SGD-3/350-RY43 6 Weeks   ¥2,140.00    3 mm grid, 350 ohm, 0°/120°/240° Pattern
 Encapuslated with Solder Pads, Matched to Steel (PRICE PER PKG OF 5)
 SGD-3/120-RY31 6 Weeks   ¥1,810.00    3 mm grid, 120 ohm, 0°/135°/270° Pattern
 SGD-3/350-RY31 6 Weeks   ¥1,810.00    3 mm grid, 350 ohm, 0°/135°/270° Pattern
 SGD-3/120-RY71 6 Weeks   ¥1,810.00    3 mm grid, 120 ohm, 0°/120°/240° Pattern
 SGD-3/350-RY71 6 Weeks   ¥1,810.00    3 mm grid, 350 ohm, 0°/120°/240° Pattern
 Encapuslated with Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGD-3/120-RY33 6 Weeks   ¥1,810.00    3 mm grid, 120 ohm, 0°/135°/270° Pattern
 SGD-3/350-RY33 6 Weeks   ¥1,810.00    3 mm grid, 350 ohm, 0°/135°/270° Pattern
 SGD-3/120-RY73 6 Weeks   ¥1,995.00    3 mm grid, 120 ohm, 0°/120°/240° Pattern
 SGD-3/350-RY73 6 Weeks   ¥1,810.00    3 mm grid, 350 ohm, 0°/120°/240° Pattern
† Price are shown in RMB.

 Note: Sold in Packages of 5
  Ordering Example: (1) SGD-3/120-RY11 3 mm grid, 120 ohm, 0°/135°/270° Pattern, ¥2,060.00
