Karma Shear And Torque Pattern Gages |
| SGK-S Series |
|
 |
|
|
|
|
|
¥
635.00
SGK-SS3A-K350U-PC11-E
|
|
| |
|
|
|
 |

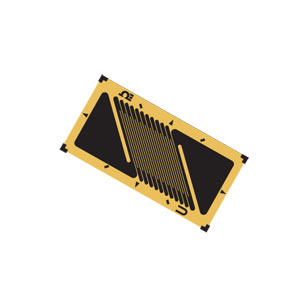

OMEGADYNE® offers K-Series strain gages for shear and torsional
strain applications. These strain gages can be used in transducer design
for shear beam load cells. They can also be used for reaction torque on
a shaft. Single strain gages are available, SGK-SS3A-K350U-**** and
matched, but with opposite grid angle is the SGK-SS3B-K350U-****. The
SGK-SD3A-K350U-**** and the SGK-SD3B-K350U-**** have 2 shear
strain gages, with opposite grid angles, on one carrier, with separate
leads/tabs(electrically independent). The SGK-SDH3B-K350U-**** has
2 shear strain gages, with opposite grid angles with a common lead/tab.
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) SGK-SDH3B-K350U-PC11-E Two shear gages on one carrier with common tab, all connections at one end, package of 5 , ¥980.00
|
|
|
|
|
| |
|
