Transducer Quality Strain Gages
Full and Half Bridge Linear Diaphragms
SGT-7/350-LD11

Linear Diaphragm Gages, Transducer-Quality

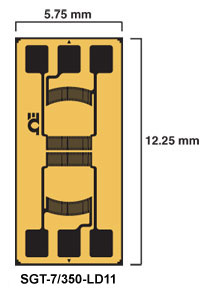

SGT-7/350-LD11:Transducer Quality Strain Gages  Full and Half Bridge Linear Diaphragms
Click for larger image.

¥ 1,080.00  SGT-7/350-LD11
• Conveniently Priced per Pack of 5
• Flexible, Small Bending Radius
• Broad Temperature Range
• Clear Alignment Marks
• Affix with Cold or Hot Cure Adhesives

View related products - Strain Gages, Accessories and Instrumentation

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

OMEGA™ transducer quality strain gages are available in a variety of patterns to cover most transducer design requirements. Their rugged construction, reliability and flexibility make them suitable for highly accurate static and dynamic transducers. The measuring grid is formed by specially formulated etching constantan foil, which is then completely sealed for long term reliability in a carrier medium composed of polyimide film.

Gage Selection
To select the proper size gage, the first number in the part number indicates the overall active gage diameter.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Full Bridge Encapsulated, Ribbon Leads, Matched to Mild Steel (PRICE PER PKG OF 5)
 SGT-7/350-LD11 6 Weeks   ¥1,080.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-9/350-LD11 6 Weeks   ¥1,205.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-12/350-LD11 6 Weeks   ¥1,205.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-18/350-LD11 6 Weeks   ¥1,305.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-18/1000-LD11 6 Weeks   ¥1,310.00    1000 ohm Full Bridge Gage for Linear Diaphragm
 SGT-24/350-LD11 6 Weeks   ¥1,430.00    350 ohm Full Bridge Gage for Linear Diaphragm
 Full Bridge Encapsulated, Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGT-7/350-LD13 6 Weeks   ¥1,080.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-9/350-LD13 6 Weeks   ¥1,205.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-12/350-LD13 6 Weeks   ¥1,205.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-18/350-LD13 6 Weeks   ¥1,305.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-18/1000-LD13 6 Weeks   ¥1,305.00    1000 ohm Full Bridge Gage for Linear Diaphragm
 SGT-24/350-LD13 6 Weeks   ¥1,430.00    350 ohm Full Bridge Gage for Linear Diaphragm
 Full Bridge Encapsulated, Solder Pads, Matched to Mild Steel (PRICE PER PKG OF 5)
 SGT-7/350-LD41 6 Weeks   ¥1,030.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-9/350-LD41 6 Weeks   ¥1,130.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-12/350-LD41 6 Weeks   ¥1,135.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-18/350-LD41 6 Weeks   ¥1,205.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-18/1000-LD41 6 Weeks   ¥1,205.00    1000 ohm Full Bridge Gage for Linear Diaphragm
 SGT-24/350-LD41 6 Weeks   ¥1,305.00    350 ohm Full Bridge Gage for Linear Diaphragm
 Full Bridge Encapsulated, Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGT-7/350-LD43 6 Weeks   ¥1,030.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-9/350-LD43 6 Weeks   ¥1,130.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-12/350-LD43 6 Weeks   ¥1,130.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-18/350-LD43 6 Weeks   ¥1,205.00    350 ohm Full Bridge Gage for Linear Diaphragm
 SGT-18/1000-LD43 6 Weeks   ¥1,205.00    1000 ohm Full Bridge Gage for Linear Diaphragm
 SGT-24/350-LD43 6 Weeks   ¥1,305.00    350 ohm Full Bridge Gage for Linear Diaphragm
 Half Bridge Encapsulated, Ribbon Leads, Matched to Mild Steel (PRICE PER PKG OF 5)
 SGT-8/350-LD11 6 Weeks   ¥1,275.00    350 ohm Half Bridge Gage for Linear Diaphragm
 SGT-8/500-LD11 6 Weeks   ¥1,080.00    500 ohm Half Bridge Gage for Linear Diaphragm
 Full Bridge Encapsulated, Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGT-8/350-LD13 6 Weeks   ¥1,080.00    350 ohm Half Bridge Gage for Linear Diaphragm
 SGT-8/500-LD13 6 Weeks   ¥1,080.00    500 ohm Half Bridge Gage for Linear Diaphragm
 Half Bridge Encapsulated, Solder Pads, Matched to Mild Steel (PRICE PER PKG OF 5)
 SGT-8/350-LD41 6 Weeks   ¥1,030.00    350 ohm Half Bridge Gage for Linear Diaphragm
 SGT-8/500-LD41 6 Weeks   ¥1,030.00    500 ohm Half Bridge Gage for Linear Diaphragm
 Half Bridge Encapsulated, Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGT-8/350-LD43 6 Weeks   ¥1,030.00    350 ohm Half Bridge Gage for Linear Diaphragm
 SGT-8/500-LD43 6 Weeks   ¥1,030.00    500 ohm Half Bridge Gage for Linear Diaphragm
† Price are shown in RMB.

 Note: Sold in packages of 5 strain gages.
  Ordering Example: (1) SGT-7/350-LD11 7 mm grid, 350 ohm full bridge linear diaphrage gage, ¥1,080.00
