Transducer-Quality Strain Gages - for Shear or Torque Applications
SGT Series

SGT Series:Transducer-Quality Strain Gages - for Shear or Torque Applications

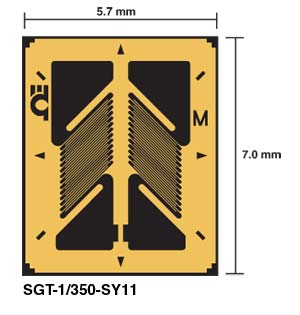

Click for larger image.

• Shear Gages for Torque or Shear Applications
• Rugged, High Reliability
• Flexible, Small Bending Radius
• Broad Temperature Range
• Clear Alignment Marks
• Affix with Cold or Hot Cure Adhesives
• Conveniently Priced for Pack of 5

View related products - Strain Gages, Accessories and Instrumentation

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

OMEGA™ transducer quality strain gages are available in a variety of patterns to cover most transducer design requirements. Their rugged construction, reliability and flexibility make them suitable for highly accurate static and dynamic transducers. The measuring grid is formed by specially formulated etching constantan foil, which is then completely sealed for long term reliability in a carrier medium composed of polyimide film.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Single Element Miniature/Small Shear (PRICE PER PKG OF 5)
 SGT-1/350-SY11 2 Weeks   ¥590.00    1.4 mm grid, 350 ohms, single gage, Ribbon Leads, TC Steel
 SGT-2/350-SY11 6 Weeks   ¥585.00    2.3 mm grid, 350 ohms, single gage, Ribbon Leads, TC Steel
 SGT-1/350-SY13 6 Weeks   ¥585.00    1.4 mm grid, 350 ohms, single gage, Ribbon Leads, TC Aluminum
 SGT-2/350-SY13 6 Weeks   ¥590.00    2.3 mm grid, 350 ohms, single gage, Ribbon Leads, TC Aluminum
 SGT-1/350-SY41 6 Weeks   ¥510.00    1.4 mm grid, 350 ohms, single gage, Solder Pads, TC Steel
 SGT-2/350-SY41 6 Weeks   ¥510.00    2.3 mm grid, 350 ohms, single gage, Solder Pads, TC Steel
 SGT-1/350-SY43 6 Weeks   ¥510.00    1.4 mm grid, 350 ohms, single gage, Solder Pads, TC Aluminum
 SGT-2/350-SY43 6 Weeks   ¥510.00    2.3 mm grid, 350 ohms, single gage, Solder Pads, TC aluminum
 Matched Pair Shear Gages (PRICE PER PKG OF 5)
 SGT-3D/350-SY11 6 Weeks   ¥705.00    3 mm grid, 350 ohms, single element, Right hand Grid, Ribbon Leads, TC for Steel
 SGT-3ES/350-SY11 2 Weeks   ¥610.00    3 mm grid, 350 ohms, single element, Reverse Grid, Ribbon Leads, TC for Steel
 SGT-3D/350-SY13 6 Weeks   ¥610.00    3 mm grid, 350 ohms, single element, Right hand Grid, Ribbon Leads, TC for Aluminum
 SGT-3ES/350-SY13 6 Weeks   ¥610.00    3 mm grid, 350 ohms, single element, Reverse Grid, Ribbon Leads, TC for Aluminum
 SGT-3D/350-SY41 6 Weeks   ¥655.00    3 mm grid, 350 ohms, single element, Right hand Grid, Solder Pads, TC for Steel
 SGT-3ES/350-SY41 2 Weeks   ¥655.00    3 mm grid, 350 ohms, single element, Reverse Grid, Solder Pads, TC for Steel
 SGT-3D/350-SY43 2 Weeks   ¥655.00    3 mm grid, 350 ohms, single element, Right hand Grid, Solder Pads, TC for Aluminum
 SGT-3ES/350-SY43 2 Weeks   ¥535.00    3 mm grid, 350 ohms, single element, Reverse Grid, Solder Pads, TC for Aluminum
 DUAL SHEAR 4-TERMINATIONS
 Encapsulated, Ribbon Leads, Matched to Mild Steel (PRICE PER PKG OF 5)
 SGT-1D/350-SY11 6 Weeks   ¥810.00    1.4 mm grid, 350 ohms, dual gage, terminations on ends,
 SGT-2DC/350-SY11 2 Weeks   ¥805.00    1.9 mm grid, 350 ohms, dual gage, all terminations on one edge.
 SGT-2D/350M-SY11 6 Weeks   ¥610.00    1.8 mm grid, 350 ohms, dual gage, terminations on both ends,
 SGT-2D/1000-SY11 6 Weeks   ¥715.00    1.6 mm grid, 1000 ohms, dual gage, all terminations on one edge.
 SGT-3FS/350-SY11 6 Weeks   ¥805.00    3 mm grid, 350 ohms, dual gage, terminations on one end
 SGT-3D/1000-SY11 2 Weeks   ¥880.00    3.3 mm grid, 1000 ohms, dual gage, with terminations on both ends.
 SGT-3GS/350-SY11 6 Weeks   ¥660.00    3 mm grid, 350 ohms, dual gage, with terminations on both ends
 Encapsulated, Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGT-1D/350-SY13 6 Weeks   ¥610.00    1.4 mm grid, 350 ohms, dual gage, terminations on ends,
 SGT-2DC/350-SY13 2 Weeks   ¥805.00    1.9 mm grid, 350 ohms, dual gage, all terminations on one edge.
 SGT-2D/350M-SY13 2 Weeks   ¥615.00    1.8 mm grid, 350 ohms, dual gage, terminations on both ends,
 SGT-2D/1000-SY13 6 Weeks   ¥710.00    1.6 mm grid, 1000 ohms, dual gage, all terminations on one edge.
 SGT-3FS/350-SY13 6 Weeks   ¥660.00    3 mm grid, 350 ohms, dual gage, terminations on one end
 SGT-3D/1000-SY13 2 Weeks   ¥660.00    3.3 mm grid, 1000 ohms, dual gage, terminations on ends,
 SGT-3GS/350-SY13 6 Weeks   ¥660.00    3 mm grid, 350 ohms, dual gage, with terminations on both ends
 Encapsulated, Solder Pads, Matched to Mild Steel (PRICE PER PKG OF 5)
 SGT-1D/350-SY41 6 Weeks   ¥755.00    1.4 mm grid, 350 ohms, dual gage, terminations on ends,
 SGT-2DC/350-SY41 6 Weeks   ¥760.00    1.9 mm grid, 350 ohms, dual gage, all terminations on one edge.
 SGT-2D/350M-SY41 2 Weeks   ¥760.00    1.8 mm grid, 350 ohms, dual gage, terminations on both ends,
 SGT-2D/1000-SY41 6 Weeks   ¥805.00    1.6 mm grid, 1000 ohms, dual gage, all terminations on one edge.
 SGT-3FS/350-SY41 2 Weeks   ¥760.00    3 mm grid, 350 ohms, dual gage, terminations on one end
 SGT-3D/1000-SY41 6 Weeks   ¥810.00    3.3 mm grid, 1000 ohms, dual gage, terminations on ends,
 SGT-3GS/350-SY41 2 Weeks   ¥585.00    3 mm grid, 350 ohms, dual gage, with terminations on both ends
 Encapsulated, Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGT-1D/350-SY43 6 Weeks   ¥535.00    1.4 mm grid, 350 ohms, dual gage, terminations on ends,
 SGT-2DC/350-SY43 2 Weeks   ¥540.00    1.9 mm grid, 350 ohms, dual gage, all terminations on one edge.
 SGT-2D/350M-SY43 6 Weeks   ¥755.00    1.8 mm grid, 350 ohms, dual gage, terminations on both ends,
 SGT-2D/1000-SY43 6 Weeks   ¥635.00    1.6 mm grid, 1000 ohms, dual gage, all terminations on one edge.
 SGT-3FS/350-SY43 6 Weeks   ¥585.00    3 mm grid, 350 ohms, dual gage, terminations on one end
 SGT-3D/1000-SY43 2 Weeks   ¥805.00    3.3 mm grid, 1000 ohms, dual gage, terminations on ends,
 SGT-3GS/350-SY43 2 Weeks   ¥755.00    3 mm grid, 350 ohms, dual gage, with terminations on both ends
 DUAL SHEAR 3-TERMINATIONS
 Encapsulated, Ribbon Leads, Matched to Mild Steel (PRICE PER PKG OF 5)
 SGT-2DH/350-SY11 6 Weeks   ¥715.00    2.3 mm grid, 350 ohms, dual gage, 2 termination on one end and a common on the other end.
 SGT-2H/350-SY11 6 Weeks   ¥715.00    2.3 mm grid, 350 ohms, dual in-line gages, termination on each end and a common in the middle.
 SGT-3JS/350-SY11 6 Weeks   ¥805.00    3.0 mm grid, 350 ohms, dual gage, 2 terminations on one end and a common in the other end.
 SGT-3H/350K-SY11 2 Weeks   ¥920.00    3.2 mm grid, 350 ohms, dual gage, all terminations on one edge.
 SGT-3HB/350K-SY11 6 Weeks   ¥795.00    3.2 mm grid, 350 ohms, dual gage, all terminations on one edge.
 Encapsulated, Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGT-2DH/350-SY13 6 Weeks   ¥710.00    2.3 mm grid, 350 ohms, dual gage, 2 termination on one end and a common on the other end.
 SGT-2H/350-SY13 2 Weeks   ¥710.00    2.3 mm grid, 350 ohms, dual in-line gages, termination on each end and a common in the middle.
 SGT-3JS/350-SY13 6 Weeks   ¥660.00    3.0 mm grid, 350 ohms, dual gage, 2 terminations on one end and a common in the other end.
 SGT-3H/350K-SY13 6 Weeks   ¥800.00    3.2 mm grid, 350 ohms, dual gage, all terminations on one edge.
 SGT-3HB/350K-SY13 2 Weeks   ¥915.00    3.2 mm grid, 350 ohms, dual gage, all terminations on one edge.
 Encapsulated, Solder Pads, Matched to Mild Steel (PRICE PER PKG OF 5)
 SGT-2DH/350-SY41 2 Weeks   ¥635.00    2.3 mm grid, 350 ohms, dual gage, 2 termination on one end and a common on the other end.
 SGT-2H/350-SY41 2 Weeks   ¥635.00    2.3 mm grid, 350 ohms, dual in-line gages, termination on each end and a common in the middle.
 SGT-3JS/350-SY41 2 Weeks   ¥760.00    3.0 mm grid, 350 ohms, dual gage, 2 terminations on one end and a common in the other end.
 SGT-3H/350K-SY41 2 Weeks   ¥865.00    3.2 mm grid, 350 ohms, dual gage, all terminations on one edge.
 SGT-3HB/350K-SY41 6 Weeks   ¥865.00    3.2 mm grid, 350 ohms, dual gage, all terminations on one edge.
 Encapsulated, Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGT-2DH/350-SY43 6 Weeks   ¥635.00    2.3 mm grid, 350 ohms, dual gage, 2 termination on one end and a common on the other end.
 SGT-2H/350-SY43 2 Weeks   ¥635.00    2.3 mm grid, 350 ohms, dual in-line gages, termination on each end and a common in the middle.
 SGT-3JS/350-SY43 6 Weeks   ¥585.00    3.0 mm grid, 350 ohms, dual gage, 2 terminations on one end and a common in the other end.
 SGT-3H/350K-SY43 6 Weeks   ¥745.00    3.2 mm grid, 350 ohms, dual gage, all terminations on one edge.
 SGT-3HB/350K-SY43 6 Weeks   ¥745.00    3.2 mm grid, 350 ohms, dual gage, all terminations on one edge.
† Price are shown in RMB.

 Note: Sold in packages of 5 strain gages.
  Ordering Example: (1) SGT-1/350-SY11 Pkg of 5, 1.4 mm grid, 350 ohm Transducer Quality shear gages, ¥590.00
