Jack Panels With Color-Coded Standard Connectors
 |

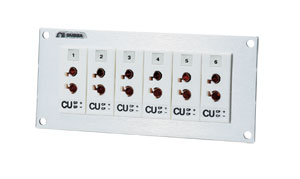

| Click for larger image. |
|
|
|
|
|
|
 |
OMEGA’s standard size jack panels are fabricated using snap-in SJP connectors in a 2.3 mm (0.09") aluminum panel. Standard panels take up to 6.12.18, 24, 36, 48, 54, or 72 circuits. Other panels available upon request. Send an email to custom@omega.com for pricing & availability. Custom Panels are $1000 minimum order for custom SKU part number.
The snap-in jacks contain two female, collet-type, spring-loaded terminals that will accept any standard male thermocouple connector. They accommodate wires up to 14 AWG and are made from alloys to match ANSI thermocouple grade calibrations. The connector bodies are molded of high-impact plastic and have a maximum service temperature of 220°C (425°F). The panels are machined from rugged 2.3 mm (0.09") aluminum with a brushed finish. Clear anodizing adds durability and corrosion resistance.
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for other available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Consult Custom Engineering Department for information on custom color-coded anodized panels. Non-standard Panels: $1,000 minimum order. Contact custom@omega.com for pricing and availability.
Ordering Example: (1) SJP2-12-J Standard jack panel with 2 rows of jacks, and total of 12, type J T/C, ¥1,750.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Standard Jack Panels
|
| |
Select
SJP1-06 for Standard jack panels with 1 row of jacks and total of 6 jacks
SJP1-12 for Standard jack panels with 1 row of jacks and total of 12 jacks
SJP1-18 for Standard jack panels with 1 row of jacks and total of 18 jacks
SJP2-12 for Standard jack panels with 2 rows of jacks and total of 12 jacks
SJP2-24 for Standardjack panels with 2 rows of jacks and total of 24 jacks
SJP2-36 for Standard jack panels with 2 rows of jacks and total of 36 jacks
SJP3-18 for Standard jack panels with 3 rows of jacks and total of 18 jacks
SJP3-36 for Standard jack panels with 3 rows of jacks and total of 36 jacks
SJP3-54 for Standard jack panels with 3 rows of jacks and total of 54 jacks
SJP4-24 for Standard jack panels with 4 rows of jacks and total of 24 jacks
SJP4-48 for Standard jack panels with 4 rows of jacks and total of 48 jacks
SJP4-72 for Standard jack panels with 4 rows of jacks and total of 72 jacks
|
(2)
|
Thermocouple Types
|
| |
Select
J for Type J
K for Type K
T for Type T
E for Type E
R/S for Type R or S
U for Uncompensated orType B
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
