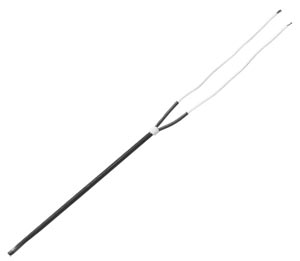

8mm (0.315") Diameter Round Heater with Sealed End and Single-End Termination - Discontinued |
| STRC Series 8mm |
|
 |
|
|
|
|
|
|
|
| • |
Copper Sheath for Fast Heat Transfer
|
| • |
350 to 2400 Watts to Fit Most Heating Applications
|
| • |
120 and 240 Volt
|
| • |
4 to 50 W/in2
|
| • |
175°C (350°F) Maximum Sheath Temperature
|
View related products - Cartridge Heaters
|
| |
|
|
|
 |
The STRC series has been discontinued. Please contact our Temperature Engineering department for a viable replacement.
APPLICATIONS
A high quality heater with a copper sheath for heating
Molds, Dies and other heat-transferring
metal parts. They are also excellent for air heating
applications, and Immersion heating
with flange, screw-plug, threaded
fitting or other means of mounting.
ADVANTAGES
Elements with a ealed end and with both terminals at
one end, can simplify wiring
in many cases. Use slim elements
to concentrate heat into a confined
area, taking up less space than a
U-shaped element with terminals
at each end.
FEATURES
Construction is similar to the
standard Omegalux tubular design,
except that both terminals of the
embedded resistor wire are at one
end of the element. 25.4 cm (10")
lead wires have silicone-impregnated
Fiberglass sleeves and are attached
to the terminals inside a ceramic
terminal bushing.
Sealed End for Immersion Heating on end opposite terminals is provided
on all stock, single-end elements.
When ordering non-stock elements,
specify "sealed end" when used as
an immersion heater.
Bending:
Generally not recommended
for single-end elements.
|
|
|
|
|
|
† Price are shown in RMB.
Note: When used as an immersion heater, specify "sealed end".
|
|
|
|
|
| |
|
