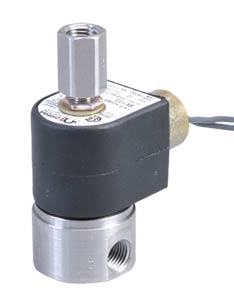

2-Way General Purpose Solenoid Valves - Stainless Steel Body, Normally Open |
| SV130 Series |
|
 |
|
|
|
|
 |
TYPICAL APPLICATIONS:
Automation, Humidifiers, Water Treatment, Dispensing, Laundry, Dry Cleaning Equipment, Machine Tools, Vending Machines
The SV130 Series direct-acting solenoid valves consist of a coil, plunger, and sleeve assembly. In a normally open valve, a plunger return spring holds the plunger away from the orifice, allowing flow through the valve. When current flows through the coil, a magnetic field is produced and it turns the stop into an electromagnet that attracts the magnetic plunger.
This action compresses the return spring and brings the plunger against the orifice to prevent flow through the valve.
SPECIFICATIONS
Wetted Parts: Stainless steel, copper, and seal
Medium: Liquid or gases
Max Static Pressure: 1.5 times max psid, vacuum (>5 microns ABS)
Ambient Temp: -9 to 50°C (15 to 122°F)
Mounting: Pipe mounting, any direction
Power: 10 W, 120 Vac coils, 50 to 60 Hz
Weight: 500 g (1.1 lb)
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) SV131 Direct-acting stainless steel normally open valve with a 3/64, ¥1,825.00
|
|
|
|
|
| |
|
