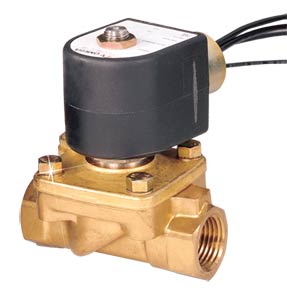

2-Way General Purpose Solenoid Valves - Brass Body - Discontinued |
| SV200 Series |
|
 |
|
|
|
|
 |
The SV200 series has been discontinued. Please see the SV6000 series as a possible alternative or contact our Flow and Level Engineering department.
TYPICAL APPLICATIONS:
Water Treatment, Dry Cleaning, Commercial Laundry Equipment, Irrigation, Cooling, Petroleum Processing, Dish and Bottle Washing, Pollution Control, Heat Exchangers
The SV201 and SV202 are direct-lift valves, which combine the features of a direct-acting valve with those of a pilot-operated valve. Because of a flexible link between the solenoid plunger and the diaphragm, the direct-lift valve functions as a direct acting valve at low pressures and as a pilot-operated valve at high pressures. It is sometimes referred to as a zero delta pressure valve or a hung diaphragm valve.
The SV203 through SV207 are pilot operated solenoid valves. These valves use the energy stored in the pressurized fluid to actuate the valving mechanism. They require the minimum pressure differential specified for proper valve operation. A direct-acting, normally closed solenoid valve is an integral part of the pilot-operated valve and is used to affect the balance of pressure above and below a diaphragm or piston.
SPECIFICATIONS
Operation:
SV201 and SV202: Direct lift
SV203 to SV207: Pilot operated
Wetted Parts: Brass, Stainless steel, copper, and seal
Medium: Liquid or gases
Max Static Pressure: 5 times max psid
Ambient Temp: -9 to 50°C (15 to 122°F)
Mounting: Pipe mounting, any direction
Power: 10 W, 120 Vac, class F
|
|
|
|
|
|
† Price are shown in RMB.
Note: * Non-Adjustable response time
|
|
|
|
|
| |
|
