OMEGA-FLO™ 2-Way General Purpose Solenoid Valves
SV3300 Series
1 year warranty CE

OMEGA-FLO 2-Way General Purpose Solenoid Valves

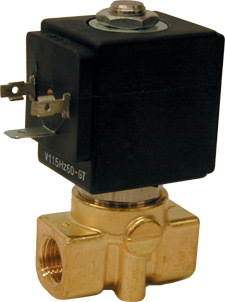

SV3300 Series:OMEGA-FLO™ 2-Way General Purpose Solenoid Valves
Click for larger image.

¥ 1,070.00  SV3301
• Ideal for Compressed Air, Inert Gas, Water and Synthetic Oils
• Available in Normally Open or Normally Closed
• Process Temperature to 137°C (280°F)
• 120 Vac Standard (DC Coils are Optional)
• All Coils are CE

View related products - Valves

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

SV-3300 Series 2-way solenoid valves are direct-acting valves featuring brass, stainless steel construction and FKM seal material. The temperature range from -10 to 137°C (14 to 280°F) is ideal for neutral media such as compressed air, inert gases, water, and synthetic oils. Electrical connection options are a ½" conduit plug or strain relief connector.

SPECIFICATIONS
Mounting Position: any; preferably with solenoid system upright
Max Process Temperature: 137°C (280°F) due to FKM O-ring
Voltage Tolerance: ±10%
Opening Time (ms):
   AC: 10 to 20
   DC: 20 to 80, depending on orifice and pressure
Closing Time (ms):
   AC and DC: approx 20 to 30
Cycling Rate: approx 1000 cpm
Duty Cycle: continuous (100%)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Normally Closed
 SV3301 4 Weeks   ¥1,070.00    1/8 NPT Pipe Size, Cv = 0.10
 SV3302 4 Weeks   ¥1,070.00    1/8 NPT Pipe Size, Cv = 0.14
 SV3303 4 Weeks   ¥1,080.00    1/8 NPT Pipe Size, Cv = 0.22
 SV3304 4 Weeks   ¥1,080.00    1/8 NPT Pipe Size, Cv = 0.28
 SV3305    Consult sales   1/8 NPT Pipe Size, Cv = 0.45
 SV3306 4 Weeks   ¥1,080.00    1/4 NPT Pipe Size, Cv = 0.10
 SV3307 4 Weeks   ¥1,070.00    1/4 NPT Pipe Size, Cv = 0.14
 SV3308 4 Weeks   ¥1,070.00    1/4 NPT Pipe Size, Cv = 0.22
 SV3309 4 Weeks   ¥1,070.00    1/4 NPT Pipe Size, Cv = 0.28
 SV3310 4 Weeks   ¥1,070.00    1/4 NPT Pipe Size, Cv = 0.45
 SV3311 2 Weeks   ¥1,070.00    1/4 NPT Pipe Size, Cv = 0.63
 Normally Open
 SV3301-NO 2 Weeks   ¥1,430.00    1/8 NPT Pipe Size, Cv = 0.10
 SV3302-NO 6 Weeks   ¥1,415.00    1/8 NPT Pipe Size, Cv = 0.22
 SV3303-NO 6 Weeks   ¥1,430.00    1/8 NPT Pipe Size, Cv = 0.28
 SV3304-NO 6 Weeks   ¥1,430.00    1/8 NPT Pipe Size, Cv = 0.45
 SV3305-NO 6 Weeks   ¥1,430.00    1/8 NPT Pipe Size, Cv = 0.45
 SV3306-NO 6 Weeks   ¥1,430.00    1/4 NPT Pipe Size, Cv = 0.10
 SV3307-NO 6 Weeks   ¥1,430.00    1/4 NPT Pipe Size, Cv = 0.14
 SV3308-NO 6 Weeks   ¥1,415.00    1/4 NPT Pipe Size, Cv = 0.22
 SV3309-NO 6 Weeks   ¥1,430.00    1/4 NPT Pipe Size, Cv = 0.28
 SV3310-NO 2 Weeks   ¥1,430.00    1/4 NPT Pipe Size, Cv = 0.45
 SV3311-NO 2 Weeks   ¥1,415.00    1/4 NPT Pipe Size, Cv = 0.63
 Connectors
 SV-CGC 2 Weeks   ¥152.00    Cable grip connector
 SV-CC 2 Weeks   ¥152.00    1/2" conduit connector
 Coils
 SV8COIL-115AC 2 Weeks   ¥460.00    Replacement 8W coil for 110 to 120 Vac/50 to 60 Hz 154°C (310°F) (Class F)
 SV8COIL-12DC 2 Weeks   ¥445.00    8W coil for 12 Vdc 154°C (310°F) (Class F)
 SV8COIL-24DC 2 Weeks   ¥470.00    8W coil for 24 Vdc 154°C (310°F) (Class F)
 SV8COIL-24AC/60HZ 2 Weeks   ¥460.00    8W coil for 24 Vac/50 to 60Hz 182°C (360°F) (Class F)
 SV8COIL-220AC 2 Weeks   ¥460.00    8W coil for 220 to 240 Vac/50 to 60 Hz 154°C (310°F) (Class F)
 SV8COIL-115/60HZ 2 Weeks   ¥655.00    8W coil for 115 Vac/60 Hz 182°C (360°F) (Class H)
 SV12COIL-120/60HZ 4 Weeks   ¥670.00    12W coil for 120 Vac/60 Hz 154°C (310°F) (Class F)
 SV12COIL-12DC 2 Weeks   ¥625.00    12W coil for 12 Vdc 154°C (310°F) (Class F)
 SV12COIL-24DC 2 Weeks   ¥670.00    12W coil for 24 Vdc 154°C (310°F) (Class F)
 SV14COIL-24DC 2 Weeks   ¥880.00    14W coil for 24 Vdc 182°C (360°F) (Class H)
 SV14COIL-24/50-60HZ 2 Weeks   ¥965.00    14W coil for 24 Vdc/50 to 60Hz 182°C (360°F) (Class H)
 SV14COIL-12DC 2 Weeks   ¥880.00    14W coil for 12 Vdc 182°C (360°F) (Class H)
† Price are shown in RMB.

 Note: Comes complete with operator's manual, 8W coil, and cable grip connector.

In most cases BSP and NPT are interchangeable in this size.


  Ordering Example: (1) SV3309 1/4 NPT normally closed valve, ¥1,070.00
