OMEGA-FLO™ 3-Way Direct Acting Solenoid Valves
SV4100 and SV4300 Series
1 year warranty CE

OMEGA-FLO 3-Way Direct Acting Solenoid Valves
SV4100 and SV4300 Series:OMEGA-FLO™ 3-Way Direct Acting Solenoid Valves

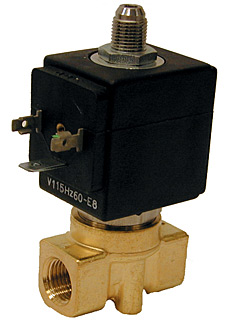

Click for larger image.

¥ 1,515.00  SV4101
• Ideal for Compressed Air, Inert gas, Water and Synthetic Oils
• 120 Vac Standard (220 Vac and DC Coils are Optional)
• All Coils are CE
• Normally Open or Normally Closed Models

View related products - Valves

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The SV4100 and SV4300 Series are direct acting solenoid valves. The valves have a brass body with brass and stainless steel wetted parts and a FKM seal material. A temperature range of -10 to 137°C (14 to 280°F) makes this valve ideal for neutral media such as compressed air, inert gas, water and synthetic oils. A strain-relief connector is supplied with each unit. A ½" conduit plug is also available.

SPECIFICATIONS
Mounting Position: Any (preferably with the solenoid system upright)
Max Process Temp: 137°C (280°F) due to FKM O-ring
Max Ambient Temp: Coil Dependent (See ratings on coils)
Voltage Tolerance: ±10%
Opening Time:
   AC: approx. 8 to 15 msec
   DC: approx. 10 to 20 msec
Closing Time:
   AC: approx. 8 to 15 msec
   DC: approx. 10 to 20 msec
Cycling Rate: Approx. 1000 cpm
Duty Cycle: Continuous (100%)

Materials of Construction
Body: Brass
Armature Tube: Stainless Steel 300
Fixed Core: Stainless Steel 400
Plunger: Stainless Steel 400
Spring: Stainless Steel 300
Shading Ring: Copper
Orifice: Stainless Steel 300

Coil Molding Material:
Black Polyester (Class F): SV8COIL-115AC, SV8COIL-24AC/60HZ, SV8COIL-220AC
Black Polyamide (Class F): SV8COIL-12DC, SV8COIL-24DC
Black Polyphenylensulphide (Class H): SV8COIL-115/60HZ
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 3 Way Universal Solenoid Valves
 SV4101 4 Weeks   ¥1,515.00    1/8" Pipe Size, 3/64" orifice, 3/32" exhaust orifice, Cv=0.06
 SV4102 4 Weeks   ¥1,515.00    1/8" Pipe Size, 1/16" orifice, exhaust orifice=1/16" Cv=0.1
 SV4103 4 Weeks   ¥1,515.00    1/8" Pipe Size, 3/32" orifice, exhaust =3/32," Cv=0.22
 SV4104 4 Weeks   ¥1,515.00    1/8" Pipe Size, 1/8" orifice, exhaust =1/8," Cv=0.28
 SV4105 4 Weeks   ¥1,515.00    1/4" Pipe Size, 3/64" orifice, exhaust =3/64," Cv=0.06
 SV4106 4 Weeks   ¥1,515.00    1/4" Pipe Size, 1/16" orifice, exhaust =1/16," Cv=0.1
 SV4107 4 Weeks   ¥1,515.00    1/4" Pipe Size, 3/32" orifice, exhaust =3/32," Cv=0.22
 SV4108 4 Weeks   ¥1,515.00    1/4" Pipe Size, 1/8" orifice, exhaust =1/8," Cv=0.28
 3 Way Normally Closed Valve ( Exhaust =3/32")
 SV4301 4 Weeks   ¥1,260.00    1/8" Pipe Size, 3/64" orifice, Cv=0.06
 SV4302 4 Weeks   ¥1,225.00    1/8" Pipe Size, 1/16" orifice, Cv=0.1
 SV4303 4 Weeks   ¥1,225.00    1/8" Pipe Size, 5/64" orifice, Cv=0.14
 SV4304 4 Weeks   ¥1,260.00    1/8" Pipe Size, 3/32" orifice, Cv=0.22
 SV4305 2 Weeks   ¥1,225.00    1/8" Pipe Size, 1/8" orifice, Cv=0.28
 SV4306 4 Weeks   ¥1,225.00    1/4" Pipe Size, 3/64" orifice, Cv=0.06
 SV4307 4 Weeks   ¥1,225.00    1/4" Pipe Size, 1/16" orifice, Cv=0.1
 SV4308 4 Weeks   ¥1,260.00    1/4" Pipe Size, 5/64" orifice, Cv=0.14
 SV4309 4 Weeks   ¥1,225.00    1/4" Pipe Size, 3/32" orifice, Cv=0.22
 SV4310 4 Weeks   ¥1,260.00    1/4" Pipe Size, 1/8" orifice, Cv=0.28
 Connectors
 SV-CGC 2 Weeks   ¥146.00    Cable grip connector
 SV-CC 2 Weeks   ¥146.00    1/2" conduit connector
 Coils
 SV8COIL-115AC 2 Weeks   ¥440.00    Replacement 8W coil for 110 to 120 Vac/50 to 60 Hz 154°C (310°F) (Class F)
 SV8COIL-12DC 2 Weeks   ¥425.00    8W coil for 12 Vdc 154°C (310°F) (Class F)
 SV8COIL-24DC 2 Weeks   ¥450.00    8W coil for 24 Vdc 154°C (310°F) (Class F)
 SV8COIL-24AC/60HZ 2 Weeks   ¥440.00    8W coil for 24 Vac/60Hz 182°C (360°F) (Class H)
 SV8COIL-220AC 2 Weeks   ¥440.00    8W coil for 220 to 240/50 to 60 Hz 154°C (310°F) (Class F)
 SV8COIL-115/60HZ 2 Weeks   ¥630.00    8W coil for 115/60 Hz 182°C (360°F) (Class H)
 SV8COIL-115/60HZ 2 Weeks   ¥630.00    8W coil for 115/60 Hz 182°C (360°F) (Class H)
† Price are shown in RMB.

 Note: * Maximum Operating Pressure Differential.
Pipe sizes expressed include BSP Connection. In most cases BSP and NPT are interchangeable in this size.

Comes complete with operator's manual and cable grip connector.


  Ordering Example: (1) SV4102 1/8, ¥1,515.00
