Home >> Heaters Products >> Immersion Heaters >> Over-the Side Immers... >> TBL Series

Over-the-Side Immersion Heaters for Salt Bath Heating
TBL Series

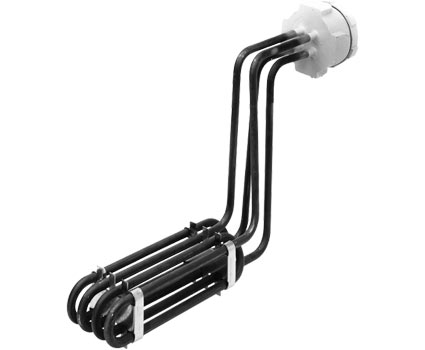

Over-the-Side Immersion Heaters for Salt Bath Heating
TBL Series:Over-the-Side Immersion Heaters for Salt Bath Heating
Click for larger image.

¥ 21,790.00  TBL-1301/240V
• 3 to 7.5 kW
• 240 and 480V, 1 Phase
• Steel or Incoloy® Sheath
• 20 W/in²

View related products - Immersion Heaters

Click to scroll below to order See Specs PDF View a printer friendly page

APPLICATIONS
  • Primarily for use in salt baths.
  • Available in other sheath materials and watt densities for most liquids and viscous materials. Conctact sales for further information

FEATURES
Vapor resistant cast iron terminal box for dependable service.
Optional features include special voltage or wattage, ¾ factory installed sludge legs, special riser height. Contact sales for further information.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Steel Sheath Elements - 20 W/in²
 TBL-1301/240V 8 Weeks   ¥21,790.00    3kW Heater, 240VAc
 TBL-1301/480V    Consult sales   3kW Heater, 480VAc
 TBL-4501/240V 8 Weeks   ¥22,455.00    4.5kW Heater, 240VAc
 TBL-4501/480V    Consult sales   4.5kW Heater, 480VAc
 TBL-6001/240V    Consult sales   6kW Heater, 240VAc
 TBL-6001/480V    Consult sales   6kW Heater, 480VAc
 TBL-7501/240V    Consult sales   7.5kW Heater, 240VAc
 TBL-7501/480V    Consult sales   7.5kW Heater, 480VAc
 Sheath Elements - 20W/in²
 TBL-A-131/240V 8 Weeks   ¥28,195.00    3kW Heater, 240VAc
 TBL-A-131/480V    Consult sales   3kW Heater, 480VAc
 TBL-A-451/240V    Consult sales   4.5kW Heater, 240VAc
 TBL-A-451/480V    Consult sales   4.5kW Heater, 480VAc
 TBL-A-601/240V    Consult sales   6kW Heater, 240VAc
 TBL-A-601/480V    Consult sales   6kW Heater, 480VAc
 TBL-A-751/240V    Consult sales   7.5kW Heater, 240VAc
 TBL-A-751/480V    Consult sales   7.5kW Heater, 480VAc
† Price are shown in RMB.

 Ordering Example: (1) TBL-1301/240V 3 kW Heater powered by 240 Vac, ¥21,790.00


Keywords:Over-the-Side Immersion Heaters for Salt Bath Heating, meter resistance thermistor cable
