Vacuum Thermocouple Sensors With KF Style Flanges and M12 Connection
TCV-M12 Series

TCV-M12 Series:Vacuum Thermocouple Sensors With KF Style Flanges and M12 Connection

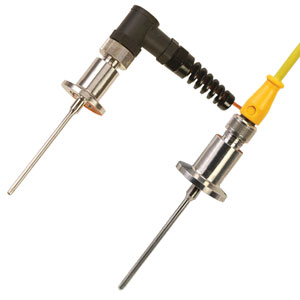

Click for larger image.

• For use with Vacuum Chambers and Vacuum Ovens with ISO 2061 Fittings; #10, #16, #25 and #40 Standard
• #10 and #16 Flanged Sensors Have 1/8" Diameter Probe
• #25 and #40 Flanged Sensors Have 1/4" Diameter Probes
• M12 Connector with Thermocouple Pins, Maximum Temperature 85°C
• 304 Stainless Steel Construction
• Grounded or Ungrounded Type K, T, and E Thermocouples are Special Limits of Error
• Single or Dual Thermocouple Construction Optional
• Custom Probe Length Available

View related products - Thermocouples

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The OMEGA™ Vacuum thermocouples are designed to be used in Vacuum Chambers or Vacuum Ovens or any process chamber that has an existing KF style flanged connection. #10 and #16 flanged sensors are provided with 1/8" diameter, and #25 and #40 flanged sensors are provided with 1/4" diameter probes. Standard probes are available in K, T and E calibrations. * Please call sales for available options including special probe lengths

View the Thermocouple Accuracy and Color Code charts
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Models with 3 Inch Probe Length, other lengths available
 KF Flange #10, 1/8 Inch Sheath Diameter, Ungrounded Junction
 TCV-KU-0300-10-M12    Consult sales   Type K, Ungrounded Vacuum Thermocouple with #10 KF Flange, 3" long with M12 Connection
 TCV-EU-0300-10-M12    Consult sales   Type E, Ungrounded Vacuum Thermocouple with #10 KF Flange, 3" long with M12 Connection
 TCV-TU-0300-10-M12    Consult sales   Type E, Ungrounded Vacuum Thermocouple with #10 KF Flange, 3" long with M12 Connection
 KF Flange #10, 1/8 Inch Sheath Diameter, Grounded Junction
 TCV-KG-0300-10-M12 101 Weeks   ¥1,790.00    Type K, Grounded Vacuum Thermocouple with #10 KF Flange, 3" long with M12 Connection
 TCV-EG-0300-10-M12    Consult sales   Type E, Grounded Vacuum Thermocouple with #10 KF Flange, 3" long with M12 Connection
 TCV-TG-0300-10-M12    Consult sales   Type T, Grounded Vacuum Thermocouple with #10 KF Flange, 3" long with M12 Connection
 KF Flange #16, 1/8 Inch Sheath Diameter, Ungrounded Junction
 TCV-KU-0300-16-M12    Consult sales   Type K, Ungrounded Vacuum Thermocouple with #16 KF Flange, 3" long with M12 Connection
 TCV-EU-0300-16-M12    Consult sales   Type E, Ungrounded Vacuum Thermocouple with #16 KF Flange, 3" long with M12 Connection
 TCV-TU-0300-16-M12    Consult sales   Type T, Ungrounded Vacuum Thermocouple with #16 KF Flange, 3" long with M12 Connection
 KF Flange #16, 1/8 Inch Sheath Diameter Grounded Junction
 TCV-KG-0300-16-M12    Consult sales   Type K, Grounded Vacuum Thermocouple with #16 KF Flange, 3" long with M12 Connection
 TCV-TG-0300-16-M12    Consult sales   Type T, Grounded Vacuum Thermocouple with #16 KF Flange, 3" long with M12 Connection
 TCV-EG-0300-16-M12    Consult sales   Type E, Grounded Vacuum Thermocouple with #16 KF Flange, 3" long with M12 Connection
 KF Flange #25, 1/4 Inch Sheath Diameter Ungrounded Junction
 TCV-KU-0300-25-M12 7 Weeks   ¥1,790.00    Type K, Ungrounded Vacuum Thermocouple with #25 KF Flange, 3" long with M12 Connection
 TCV-TU-0300-25-M12    Consult sales   Type T, Ungrounded Vacuum Thermocouple with #25 KF Flange, 3" long with M12 Connection
 TCV-EU-0300-25-M12    Consult sales   Type E, Ungrounded Vacuum Thermocouple with #25 KF Flange, 3" long with M12 Connection
 KF Flange #40, 1/4 Inch Sheath Diameter Ungrounded Junction
 TCV-KU-0300-40-M12 7 Weeks   ¥1,825.00    Type K, Ungrounded Vacuum Thermocouple with #40 KF Flange, 3" long with M12 Connection
 TCV-TU-0300-40-M12    Consult sales   Type T, Ungrounded Vacuum Thermocouple with #40 KF Flange, 3" long with M12 Connection
 TCV-EU-0300-40-M12    Consult sales   Type E, Ungrounded Vacuum Thermocouple with #40 KF Flange, 3" long with M12 Connection
† Price are shown in RMB.

 Note: (*) = Specify Type (“K”, “T” or “E” thermocouple). (**) = Specify junction style (“G” = grounded, “U” = ungrounded). (***) = Specify the probe length in inches (“0300” = 3", “0600” = 6", “0950” = 9 ½", “1200” = 12"). For lengths between those shown, indicate the required length as shown above and select the next longer length price. For lengths greater than 12", add the additional cost per inch to the 12" price.
