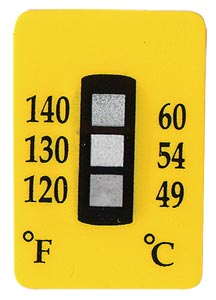

Non-Reversible Temperature Labels, 3 Temperature Ranges

TL-3

Click for larger image.

•	Indicator turns black when exposed
•	Not Reversible
•	Adhesive backs for easy mounting
•	Size: 18mmW x 26mmW(.71"W x 1.03"H)
View related products - Indicating Labels, Crayons, Cements and Lacquers

Applications:
• General • Aeronautical • Electrical • HVAC •Most surface measurements

Pricing for several popular models is shown in the ordering table below. Use the Part Number Builder to obtain pricing for other models.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
TL-3-120-10		Consult sales	Three Temperature Range Label 49, 54, 60°C (120, 130, 140°F), package of 10	qty.

TL-3-120-30		Consult sales	Three Temperature Range Label 49, 54, 60°C (120, 130, 140°F), package of 30	qty.

TL-3-150-10		Consult sales	Three Temperature Range Label 66,71, 77°C (150, 160, 170°F), package of 30	qty.

TL-3-150-30		¥393.00	Three Temperature Range Label 66,71, 77°C (150, 160, 170°F), package of 30	qty.

TL-3-180-10		Consult sales	Three Temperature Range Label 82, 88, 93°C (180, 190, 200°F), package of 30	qty.

TL-3-180-30		Consult sales	Three Temperature Range Label 82, 88, 93°C (180, 190, 200°F), package of 30	qty.

TL-3-330-10		Consult sales	Three Temperature Range Label 166, 171, 177°C (330, 340, 350°F), package of 10	qty.

TL-3-330-30		Consult sales	Three Temperature Range Label 166, 171, 177°C (330, 340, 350°F), package of 30	qty.

† Price are shown in RMB.

Note: Insert -10” for package of 10 or “-30” for package of 30.

Part Number Builder

	(1)	(2)
T T L L - - 3 3 - -

Qty:

Option Descriptions

(1)

Temperature Range

Select
105 for 105/110/ 115°F
120 for 120/130/140°F
150 for 150/160/170°F
180 for 180/190/200°F
210 for 210/220/230°F
240 for 240/250/260°F
270 for 270/280/290°F
300 for 300/310/320°F
330 for 330/340/350°F
360 for 360/370/380°F
390 for 390/400/410°F
420 for 420/435/450°F
465 for 465/480/490°F

(2)

Package Quantity

Select
-10 for Package of 10
-30 for Package of 30

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.

Keywords:Non-Reversible Temperature Labels, 3 Temperature Ranges, temperature label, temperature paper label, temperature tracker, temperature dot, transportation label, temperature verifier, temp label, temperature label indicator, termperature recording label, temperature sensitive label
