Flanged Immersion Heaters for Mild Corrosive Solutions

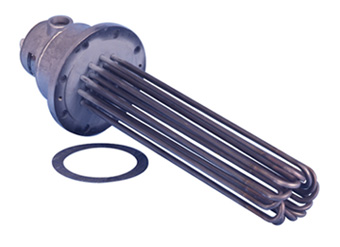

Click for larger image.

•	240 and 480 V, 1 & 3 Phase
•	3 to 36 kW
•	Premium Grade Stainless Steel (8% Nickel) Sheathed Heating Elements for Use in Mild Corrosive Solutions
•	Time Tested
•	Heavy Duty
View related products - Immersion Heaters

FEATURES Rugged construction. Sturdy stainless steel .475" (1.2 cm) diameter elements, welded to steel flanges provide superior rigidity and strength. Heavy duty jumper straps and terminal parts assure permanent tightness of connections and an extra margin of current carrying capacity.

Long life elements. High grade 304 series stainless steel outer sheath provides the benefits of strength and durability in those applications where stainless performance is required.

kW	Circ.	Dim. in. (cm) B	E-1 General Purpose Encl.¹ Model No.	Wt. lb (kg)	Dim. in. (cm) N
3 Inch-150 lb. Steel Flange, 3 Stainless Steel Elements — 23 W/in2
3	1	18 1/16 (46)	TMS-3035M/240V/*	16 (7)	1 (3)
3	1	18 1/16 (46)	TMS-3035M/480V/*	16 (7)	1 (3)
4.5	1	25 3/16 (64)	TMS-3045M/240V/*	17 (8)	1 (3)
4.5	1	25 3/16 (64)	TMS-3045M/480V/*	17 (8)	1 (3)
6	1	33 1/16 (84)	TMS-3065M/240V/*	18 (8)	1 (3)
6	1	33 1/16 (84)	TMS-3065M/480V/*	18 (8)	1 (3)
7.5	1	40 9/16 (103)	TMS-3075M/240V/3P	19 (9)	1 (3)
7.5	1	40 9/16 (103)	TMS-3075M/480V/3P	19 (9)	1 (3)
9	1	48 1/16 (122)	TMS-3095M/480V/*	21 (10)	1 (3)
9	1	48 1/ (122)	TMS-3095M/240V/3P	21 (10)	1 (3)
5 Inch-150 lb. Steel Flange, 6 Stainless Steel Elements — 23 W/in2
9	1	25 3/16 (64)	TMS-6095M/**/3P	32 (15)	1 (3)
12	1	33 1/16 (84)	TMS-6125M/**/3P	33 (15)	1 (3)
15	1	40 9/16 (103)	TMS-6155M/**/3P	35 (16)	1 (3)
20	2	52 1/16 (46)	TMS-6205M/240V/3P	38 (17)	1 (3)
20	1	52 1/16 (46)	TMS-6205M/480V/3P	38 (17)	1 (3)
25	2	65 1/16 (64)	TMS-6255M/240V/3P	42 (19)	1 (3
25	1	65 1/16 (84)	TMS-6255M/480V/3P	42 (19)	1 (3)
30	2	78 1/16 (84)	TMS-6305M/**/3P	46 (21)	1 (3)
6 Inch-150 lb. Steel Flange, 12 Stainless Steel Elements — 23 W/in2
18	2	25 1/8 (64)	TMS-1218M/**/3P	67 (30)	1 (3)
24	2	33 (84)	TMS-1224M/**/3P	76 (34)	1 (3)
30	2	40 1/2 (103)	TMS-1230M/**/3P	84 (38)	1 (3)
36	2	48 (122)	TMS-1236M/**/3P	111 (50)	1 (3)

/* Add the suffix “/3P” to the model number for 3 phase power.
/** Designate voltage, i.e., 240V for 240 VAC or 480V for 480 VAC.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

TMS-3035M/240V	8 Weeks	¥29,920.00	Flanged immersion heater, 3 kW, 240 V, 3 stainless steel elements	qty.

TMS-3065M/240V	8 Weeks	¥33,295.00	Flanged immersion heater, 6 kW, 240 V, 3 stainless steel elements	qty.

† Price are shown in RMB.

Note: Larger flange sizes and kW rating available. Contact OMEGALUX.®

Part Number Builder

Option Descriptions

(1)

Number of Stainless Steel Elements

Select
3 for 3 Stainless Steel Elements
6 for 6 Stainless Steel Elements
12 for 12 Stainless Steel Elements

(2)

Wattage

Select
035 for 3 kW
045 for 4.5 kW
065 for 6 kW
075 for 7.5 kW
095 for 9 kW
18 for 18 kW
24 for 24 kW
30 for 30 kW
36 for 36 kW
125 for 12 kW
155 for 15 kW
205 for 20 kW
255 for 25 kW
305 for 30 kW

(3)

Voltage

Select
240V for 240 V
480V for 480 V

(4)

Power

Select
Nothing(leave field blank)
/3P for 3 phase power

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
