Flanged Immersion Heaters for Process Water |
| TMS Series |
|
 |
|
|
Flanged Immersion Heaters for Process Water
 |

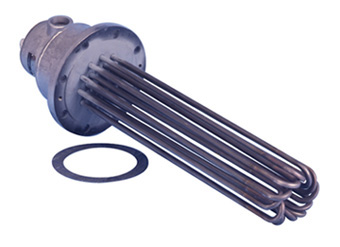

| Click for larger image. |
|
|
¥
30,210.00
TMS-3065/240V
|
| • |
TMS Series
• Long Life Heating Elements with Stainless Steel (8% Nickel) Sheath
• For Very Weak Solutions or Industrial Process Water
• Zinc Coated Steel Flange
• 6 to 72 kW
• 240 and 480 V, 1 and 3 Phase
|
| • |
TMI Series
• Rugged .475" (1.2 cm) Diameter Incoloy Sheath
• 6-72 kW
• 3" to 6" (7.6 to 15.2 cm) Flange Sizes Available
• For Weeks Corrosive Solutions or Severe Hard Water
• Zinc Coated Steel Flange
|
View related products - Immersion Heaters
|
| |
|
|
|
 |
| kW |
Circ. |
Dim.
in. (cm) B |
Wt.
lb (kg) |
E-1 General Purpose Encl.1
Model No. |
Dim.
in (cm) N |
E-2 Moisture/ Explosion Res. Encl.2
Model No. |
Dim.
in (cm) N |
| 3 Inch-150 Lb. Steel Flange, 3 Stainless Steel Elements — 45 W/in2 |
| 6 | 1 | 18 1/16 (46) | 16 (7) | TMS-3065/240V/* | 1 (3) | TMS-3065E2/240V/* | 3/4 (2) |
| 6 | 1 | 18 1/16 (46) | 16 (7) | TMS-3065/480V/* | 1 (3) | TMS-3065E2/480V/* | 3/4 (2) |
| 9 | 1 | 25 3/16 (64) | 17 (8) | TMS-3095/240V/* | 1 (3) | TMS-3095E2/240V/* | 3/4 (2) |
| 9 | 1 | 25 3/16 (64) | 17 (8) | TMS-3095/480V/* | 1 (3) | TMS-3095E2/480V/* | 3/4 (2) |
| 12 | 1 | 33 1/16 (84) | 18 (8) | TMS-3125/240V | 11/4 (3) | TMS-3125E2/240V | 1 (3) |
| 12 | 1 | 33 1/16 (84) | 18 (8) | TMS-3125/240V/3P | 1 (3) | TMS-3125E2/240V/3P | 3/4 (2) |
| 12 | 1 | 33 1/16 (84) | 18 (8) | TMS-3125/480V/* | 1 (3) | TMS-3125E2/480V/* | 3/4 (2) |
| 15 | 1 | 40 9/16 (103) | 20 (9) | TMS-3155/240V | 11/4 (3) | TMS-3155E2/240V | 1 1/4 (3) |
| 15 | 1 | 40 9/16 (103) | 20 (9) | TMS-3155/240V/3P | 1 (3) | TMS-3155E2/240V/3P | 3/4 (2) |
| 15 | 1 | 40 9/16 (103) | 20 (9) | TMS-3155/480V/* | 1 (3) | TMS-3155E2/480V/* | 3/4 (2) |
| 18 | 1 | 48 1/16 (122) | 21 (10) | TMS-3185/240V | 11/4 (3) | TMS-3185E2/240V | 1 1/4 (3) |
| 18 | 1 | 48 1/16 (122) | 21 (10) | TMS-3185/240V/3P | 1 (3) | TMS-3185E2/240V/3P | 3/4 (2) |
| 18 | 1 | 48 1/16 (122) | 21 (10) | TMS-3185/480V/* | 1 (3) | TMS-3185E2/480V/* | 3/4 (2) |
| kW |
Circ.
& Ph. |
Dim.
in. (cm) B |
Wt.
lb (kg) |
General Purpose Encl.1
Model No. |
Dim.
in (cm) N |
E-3 Explosion Res. Encl.2
Model No. |
Dim.
in (cm) N |
E-4 Moisture Res.Encl.1
Model No. |
Dim.
in (cm) N |
| 5 Inch-150 Lb. Steel Flange, 6 Stainless Sheath Elements — 45 W/in2 |
| 12 | 1-3 | 18 1/16 (46) | 30 (14) | TMS-6125/**/3P | 1 (3) | TMS-6125E3/**/3P | 1 1/2 (4) | TMS-6125E4/**/3P | 1 (3) |
| 15 | 1-3 | 19 3/16 (50) | 31 (14) | TMS-6155/**/3P | 1 (3) | TMS-6155E3/**/3P | 1 1/2 (4) | TMS-6155E4/**/3P | 1 (3) |
| 18 | 1-3 | 25 3/16 (64) | 33 (15) | TMS-6185/**/3P | 1 (3) | TMS-6185E3/**/3P | 1 1/2 (4) | TMS-6185E4/**/3P | 1 (3) |
| 24 | 2-3 | 33 1/16 (84) | 37 (17) | TMS-62455/240V/3P | 1 (3) | TMS-6245E3/240V/3P | 1 1/2 (4) | TMS-6245E4/240V/3P | 1 (3) |
| 24 | 1-3 | 33 1/16 (84) | 37 (17) | TMS-6245/480V/3P | 1 (3) | TMS-6245E3/480V/3P | 1 1/2 (4) | TMS-6245E4/480V/3P | 1 (3) |
| 30 | 2-3 | 40 9/16 (103) | 40 (18) | TMS-6305/**/3P | 1 (3) | TMS-6305E3/**/3P | 1 1/2 (4) | TMS-6305E4/**/3P | 1 (3) |
| 40 | 2-3 | 52 1/16 (132) | 51 (23) | TMS-6405/**/3P | 1 (3) | TMS-6405E3/**/3P | 1 1/2 (4) | TMS-6405E4/**/3P | 1 (3) |
| 50 | 2-3 | 65 1/16 (165) | 64 (29) | TMS-6505/**/3P | 1 (3) | TMS-6505E3/**/3P | 1 1/2 (4) | TMS-6505E4/**/3P | 1 (3) |
| 60 | 2-3 | 78 1/16 (198) | 77 (35) | TMS-6605/**/3P | 1 (3) | TMS-6605E3/**/3P | 1 1/2 (4) | TMS-6605E4/**/3P | 1 (3) |
| 6 Inch-150 Lb. steel Flange, 12 Copper Sheath Elements — 45 W/in2 |
| 36 | 2-3 | 25 1/8 (64) | 67 (30) | TMS-1236/**/3P | 1 (3) | TMS-1236E3/**/3P | 1 1/2 (4) | TMS-1236E4/**/3P | 1 1/2 (4) |
| 48 | 2-3 | 33 (84) | 76 (34) | TMS-1248/**/3P | 1 †(3) | TMS-1248E3/**/3P | 1 1/2 (4) | TMS-1248E4/**/3P | 1 1/2 (4) |
| 60 | 2-3 | 40 1/2 (103) | 84 (38) | TMS-1260/**/3P | 1 †(3) | TMS-1260E3/**/3P | 1 1/2 (4) | TMS-1260E4/**E4 | 1 1/2 (4) |
| 72 | 2-3 | 48 (122) | 111 (50) | TMS-1272/**/3P | 1 †(3) | TMS-1272E3/**/3P | 1 1/2 (4) | TMS-1272E4/**/3P | 1 1/2 (4) |
/* Add the suffix “/3P” to the model number for 3 phase power.
/** Designate voltage, i.e., 240 for 240 VAC or 480 for 480 V.
†48,60 and 72 kw 240 VAC units have 11/4" N dim.
Note: Larger flange sizes and kW rating available. Please contact OMEGALUX for specific details.
1 Heaters with General Purpose & Moisture Resistant Enclosures are UL Listed and CSA Certified.
2 Heaters with Explosion Resistant Enclosures are CSA NRTL/C Certified and are not intended for use in hazardous areas.
| kW |
Circ. |
Dim.
in. (cm) B |
Wt.
lb (kg) |
E-1 General Purpose Encl.1
Model No. |
Dim.
in (cm) N |
E-2 Moisture/ Explosion Res. Encl.2
Model No. |
Dim.
in (cm) N |
| 3 Inch-150 Lb. Steel Flange, 3 Incoloy Sheath Elements — 45 W/in2 |
| 6 | 1 | 18 1/16 (46) | 16 (7) | TMI-3065H/240V/* | 1 (3) | TMI-3065HE2/240V/* | 3/4 (2) |
| 6 | 1 | 18 1/16 (46) | 16 (7) | TMI-3065H/480V/* | 1 (3) | TMI-3065HE2/480V/* | 3/4 (2) |
| 9 | 1 | 25 3/16 (64) | 17 (8) | TMI-3095H/240V/* | 1 (3) | TMI-3095HE2/240V/* | 3/4 (2) |
| 9 | 1 | 25 3/16 (64) | 17 (8) | TMI-3095H/480V/* | 1 (3 | TMI-3095HE2/480V/* | 3/4 (2) |
| 12 | 1 | 33 1/16 (84) | 18 (8) | TMI-3125H/240V | 1 1/4 (3) | TMI-3125HE2/240V | 1 (3) |
| 12 | 1 | 33 1/16 (84) | 18 (8) | TMI-3125H/240V/3P | 1 (3) | TMI-3125HE2/240V/3P | 3/4 (2) |
| 12 | 1 | 33 1/16 (84) | 18 (8) | TMI-3125H/480V/* | 1 (3) | TMI-3125HE2/480V/* | 3/4 (2) |
| 15 | 1 | 40 9/16 (103) | 20 (9) | TMI-3155H/240V | 11/4 (3) | TMI-3155HE2/240V | 1 1/4 (3) |
| 15 | 1 | 40 9/16 (103) | 20 (9) | TMI-3155H/240V/3P | 1 (3) | TMI-3155HE2/240V/3P | 3/4 (2) |
| 15 | 1 | 40 9/16 (103) | 20 (9) | TMI-3155H/480V/* | 1 (3) | TMI-3155HE2/480V/* | 3/4 (2) |
| 15 | 1 | 48 1/16 (122) | 21 (10) | TMI-3185H/240V | 1 1/4 (3) | TMI-3185HE2/240V | 1 1/4 (3) |
| 18 | 1 | 48 1/16 (122) | 21 (10) | TMI-3185H/240V/3P | 1 (3) | TMI-3185HE2/240V/3P | 3/4 (2) |
| 18 | 1 | 48 1/16 (122) | 21 (10) | TMI-3185H/480V/* | 1 (3) | TMI-3185HE2/480V/* | 3/4 (2) |
| kW |
Circ.
& Ph. |
Dim.
in. (cm) B |
Wt.
lb (kg) |
General Purpose Encl.1
Model No. |
Dim.
in (cm) N |
E-3 Explosion Res. Encl.2
Model No. |
Dim.
in (cm) N |
E-4 Moisture Res.Encl.1
Model No. |
Dim.
in (cm) N |
| 5 Inch-150 Lb. Steel Flange, 6 Incoloy Sheath Elements — 45 W/in2 |
| 12 | 1-3 | 18 1/16 (46) | 30 (14) | TMI-6125H/**/3P | 1 (3) | TMI-6125HE3/**/3P | 1 1/2 (4) | TMI-6125HE4/**/3P | 1 (3) |
| 15 | 1-3 | 19 3/16 (50) | 31 (14) | TMI-6155H/**/3P | 1 (3) | TMI-6155HE3/**/3P | 1 1/2 (4) | TMI-6155HE4/**/3P | 1 (3) |
| 18 | 1-3 | 25 3/16 (64) | 33 (15) | TMI-6185H/**/3P | 1 (3) | TMI-6185HE3/**/3P | 1 1/2 (4) | TMI-6185HE4/**/3P | 1 (3) |
| 24 | 2-3 | 33 1/16 (84) | 37 (17) | TMI-62455H/240V/3P | 1 (3) | TMI-6245HE3/240V/3P | 1 1/2 (4) | TMI-6245HE4/240V/3P | 1 (3) |
| 24 | 1-3 | 33 1/16 (84) | 37 (17) | TMI-62455H/480V/3P | 1 (3) | TMI-6245HE3/480V/3P | 1 1/2 (4) | TMI-6245HE4/480V/3P | 1 (3) |
| 30 | 2-3 | 40 9/16 (103) | 40 (18) | TMI-6305H/**/3P | 1 (3) | TMI-6305HE3/**/3P | 1 1/2 (4) | TMI-6305HE4/**/3P | 1 (3) |
| 40 | 2-3 | 52 1/16 (132) | 51 (23) | TMI-6405H/**/3P | 1 (3) | TMI-6405HE3/**/3P | 1 1/2 (4) | TMI-6405HE4/**/3P | 1 (3) |
| 50 | 2-3 | 65 1/16 (165) | 64 (29) | TMI-6505H/**/3P | 1 (3) | TMI-6505HE3/**/3P | 1 1/2 (4) | TMI-6505HE4/**/3P | 1 (3) |
| 15 | 2-3 | 78 1/16 (198) | 77 (35) | TMI-6605H/**/3P | 1 (3) | TMI-6605HE3/**/3P | 1 1/2 (4) | TMI-6605HE4/**/3P | 1 (3) |
| 6 Inch-150 Lb. Steel Flange, 12 Incoloy Elements — 45 W/in2 |
| 36 | 2-3 | 25 1/8 (64) | 67 (30) | TMI-1236H/**/3P | 1 (3) | TMI-1236HE3/**/3P | 1 1/2 (4) | TMI-1236HE4/**/3P | 1 1/2 (4) |
| 48 | 2-3 | 33 (84) | 76 (34) | TMI-1248H/**/3P | 1 †(3) | TMI-1248HE3/**/3P | 1 1/2 (4) | TMI-1248HE4/**/3P | 1 1/2 (4) |
| 60 | 2-3 | 40 1/2 (103) | 84 (38) | TMI-1260H/**/3P | 1 †(3) | TMI-1260HE3/**/3P | 1 1/2 (4) | TMI-1260HE4/**/3P | 1 1/2 (4) |
| 72 | 2-3 | 48 (122) | 111 (50) | TMI-1272H/**/3P | 1 †(3) | TMI-1272HE3/**/3P | 1 1/2 (4) | TMI-1272HE4/**/3P | 1 1/2 (4) |
/* Add the suffix “/3P” to the model number for 3 phase power.
/** Designate voltage, i.e., 240 for 240 VAC or 480 for 480 V.
†48,60 and 72 kw 240 VAC units have 11/4" N dim.
Note: Larger flange sizes and kW rating available. Please contact OMEGALUX for specific details.
1 Heaters with General Purpose & Moisture Resistant Enclosures are UL Listed and CSA Certified.
2 Heaters with Explosion Resistant Enclosures are CSA NRTL/C Certified and are not intended for use in hazardous areas.
Please review the tables and spec sheet to verify Valid Part Numbers
to ensure best results when using the "Part Number Builder" below
|
|
|
|
|
|
† Price are shown in RMB.
|
|
|
|
|
| |
|
