TM Series

Flanged Immersion Heaters

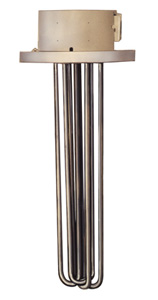

Click for larger image.

•	Flange Sizes 3" to 5" of High Grade Steel
•	General Purpose, NEMA 1 Rated Enclosure or Moisture Resistant¹, Explosion Resistant² Enclosure Available
•	Sturdy 0.475"Diameter Copper Elements
•	6 to 150 kW
•	240 and 480 Vac Power, 1 and 3 Phase
View related products - Immersion Heaters

Please note: Approved pressure and/or temperature limited controls must be used to assure safe operation in the event of system malfunctions. See Temperature Section.

APPLICATIONS
For clean water pH 6 to 8 – Clean municipal water such as used in washing, rinsing and industrial processes with a pH factor range of pH 6 to pH 8.

For non-corrosive solutions – Non-corrosive water solutions or weak alkaline or acid content of up to 1% by volume, such as sodium carbonate, sodium chlorate or other neutral salts.

kW	Circ.	Dim. in (cm) B	Wt. Ibs (kg)	E1 General Purpose Enclosure¹		E2 Moisture Res/Explos. Res. Encl²
kW	Circ.	Dim. in (cm) B	Wt. Ibs (kg)	Model No.	Dim. in (cm) N	Model No.	Dim. in (cm) N
3 Inch-150 lb. Steel Flange, 3 Copper Sheath Elements — 45 W/in2
6	1	18 1/16 (46)	16(7)	TM-3065/240V/*	1 (3)	TM-3065E2/240V/*	3/4 (2)
6	1	18 1/16 (46)	16(7)	TM-3065/480V/*	1 (3)	TM-3065E2/480V/*	3/4 (2)
9	1	25 3/16 (64)	17(8)	TM-3095/240V/*	1 (3)	TM-3095E2/240V/*	3/4 (2)
9	1	25 3/16 (64)	17(8)	TM-3095/480V/*	1 (3)	TM-3095E2/480V/*	3/4 (2)
12	1	33 1/16 (84)	18 (8)	TM-3125/240V	11/4 (3)	TM-3125E2/240V	1 (3)
12	1	33 1/16 (84)	18 (8)	TM-3125/240V/3P	1 (3)	TM-3125E2/240V/3P	3/4 (2)
12	1	33 1/16 (84)	18 (8)	TM-3125/480V/*	1 (3)	TM-3125E2/480V/*	3/4 (2)
15	1	40 9/16 (103)	20 (9)	TM-3155/240V	1 (3)	TM-3155E2/240V	1 1/4 (3)
15	1	40 9/16 (103)	20 (9)	TM-3155/240V/3P	11/4 (3)	TM-3155E2/240V/3P	3/4 (2)
15	1	40 9/16 (103)	20 (9)	TM-3155/480V/*	1 (3)	TM-3155E2/480V/*	3/4 (2)
18	1	48 1/16 (122)	21(10)	TM-3185/240V	11/4 (3)	TM-3185E2/240V	1 1/4 (3)
18	1	48 1/16 (122)	21(10)	TM-3185/240V/*	1 (3)	TM-3185E2/240V/3P	3/4 (2)
18	1	48 1/16 (122)	21(10)	TM-3185/480V/*	1 (3)	TM-3185E2/480V/*	3/4 (2)

kW	Circ. & Ph.	Dim. in (cm) B	Wt. Ibs (kg)	E-1 Gen.Purpose Encl¹		E-3 Explosion Res. Encl.²		E-4 Moisture Res. Encl¹
kW	Circ. & Ph.	Dim. in (cm) B	Wt. Ibs (kg)	Model No.	Dim. in (cm) N	Model No.	Dim. in (cm) N	Model No.	Dim. in (cm) N
5 Inch-150 Lb. Steel Flange, 6 Copper Sheath Elements — 45 W/in2
12	1-3	18 1/16 (46)	30(14)	TM-6125/**/3P	1(3)	TM-6125E3/**/3P	1 1/2 (4)	TM-6125E4/**/3P	1(3)
15	1-3	19 3/16 (50)	31(14)	TM-6155/**/3P	1(3)	TM-6155E3/**/3P	1 1/2 (4)	TM-6155E4/**/3P	1(3)
18	1-3	25 3/16 (64)	33(15)	TM-6185/**/3P	1(3)	TM-6185E3/**/3P	1 1/2 (4)	TM-6185E4/**/3P	1(3)
24	2-3	33 1/16 (84)	37(17)	TM-6245/240V/3P	1(3)	TM-6245E3/240V/3P	1 1/2 (4)	TM-6245E4/240V/3P	1(3)
24	1-3	33 1/16 (84)	37(17)	TM-6245/480V/3P	1(3)	TM-6245E3/480V/3P	1 1/2 (4)	TM-6245E4/480V/3P	1(3)
30	2-3	40 9/16 (103)	40(18)	TM-6305/**/3P	1(3)	TM-6305E3/**/3P	1 1/2 (4)	TM-6305E4/**/3P	1(3)
40	2-3	52 1/16 (132)	51(23)	TM-6405/**/3P	1(3)	TM-6405E3/**/3P	1 1/2 (4)	TM-6405E4/**/3P	1(3)
60	2-3	78 1/16 (198)	77(35)	TM-6605/480V/3P	1(3)	TM-6605E3/480V/3P	1 1/2 (4)	TM-6605E4/680/3P	1(3)

/* Add the suffix “/3P” to the model number for 3 phase power.
/** Specify voltage, i.e., 240V for 240 VAC or 480V for 480 VAC.
Note: Larger flange sizes and kW rating available. Please contact OMEGALUX for specific details.
1 Heaters with General Purpose and Moisture Resistant Enclosures are UL Listed and CSA Certified.
2 Heaters with Explosion Resistant Enclosures are CSA NRTL/C certified and are not intended for use in hazardous areas.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

† Price are shown in RMB.

Part Number Builder

	(1)	(2)	(3)		(4)	(5)
T T M M - -				/ /
Qty:

Option Descriptions

(1)

Number of Copper Sheath Elements

Select
3 for 3 Copper Sheath Elements
6 for 6 Copper Sheath Elements

(2)

Wattage

Select
065 for 6 kW
095 for 9 kW
125 for 12 kW
155 for 15 kW
185 for 18 kW
245 for 24 kW
305 for 30 kW
405 for 40 kW
605 for 60 kW

(3)

Enclosure

Select
Nothing(leave field blank) for E-1 General Purpose Enclosure
E2 for E-2 Moisture Resistant/Explosion Resistant Enclosure
E3 for E-3 Explosion Resistant Enclosure
E4 for E-4 Moisture Resistant Enclosure

(4)

Voltage

Select
240V for 240 V
480V for 480 V

(5)

Power

Select
Nothing(leave field blank) for 1 Phase Power
/3P for 3 Phase Power

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.

Keywords:Flanged Immersion Heaters for Clean Water, tank heater, electric heater, water heater, industrial heater, heavy duty heater, digital food thermometers

Part Number

Availability

Price(RMB)

Description

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

TM-3065/240V/3P

Consult sales

Heater, 3 copper sheath elements, 6 kW, 240 V, 3 phase
