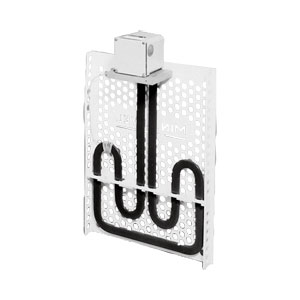

Corrosion Resistant Over-the Side Immersion Heaters

TPR and TPF Series

Click for larger image.

^¥ 17,195.00 TPR-101

•	Fluoropolymer Coated Stainless Steel Elements
•	20 W/In²
•	120, 240 and 480 Volt, Single Phase
•	Moisture Resistant Terminal Enclosure TPF--Flat Elements
•	Moisture Resistant Terminal Enclosure
View related products - Immersion Heaters

1. Corrosion Resistant- Thermoplastic fluoropolymer coated stainless steel sheath for long life in almost all types of corrosive solutions for operating temperatures up to 212°F. Pin hole free, durable coating, 100% tested at factory.

2. Overtemperature Shutoff- Standard on all units. A manual reset cutout will deactivate the heater in the event of an overtemperature condition (rated 25 amps up to 277 volts). A visual minimum level indication is also provided on the heater guard.

3. Low Profile - Single and three phrase heaters have flat profiles which permit maximum work area and minimum interference with plating process. Heater projects less than 2" away from the side of the tank.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
TPR-101	10 Weeks	¥17,195.00	signgle phase, 1 kW, 120 Vac, A dim inch (cm) 13(33), B dim inch (cm) 6(15)	qty.

TPR-102	10 Weeks	¥15,620.00	single phase, 1 kW, 240 Vac, A dim inch (cm) 13(33), B dim inch (cm) 6(15)	qty.

TPR-202	10 Weeks	¥16,850.00	single phase, 2 kW, 240 Vac, A dim inch (cm) 21(53), B dim inch (cm) 12(30)	qty.

TPR-204	10 Weeks	¥16,850.00	single phase, 2 kW, 480 Vac, A dim inch (cm) 21(53), B dim inch (cm) 12(30)	qty.

† Price are shown in RMB.

Note: To reivew heater certifications and listings please click on download under related links below.

Part Number Builder

(1)		(2)	(3)
	- -

Qty:

Option Descriptions

(1)

1 or 3 Phase Models

Select
TPR for 1 Phase
TPF for 3 Phase

(2)

Wattage

Select
10 for 1 kW
20 for 2 kW
30 for 3 kW
40 for 4 kW
60 for 6 kW
80 for 8 kW
100 for 10 kW

(3)

Voltage

Select
1 for 120 Vac
2 for 240 Vac
4 for 480 Vac

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
