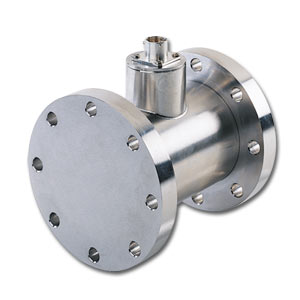

Reaction Torque Cells, Heavy Duty Flange Mount

TQ302

Click for larger image.

^¥ 20,105.00 TQ302-2k

•	All Stainless Steel Case for Long Term Reliability in Industrial Environments
•	High Accuracy
•	Heavy Duty Mounting for Positive, Non-Slip Connection
View related products - Load Cells, Force Sensors and Torque Transducers

SPECIFICATIONS
Output: 1.5 mV/V
Excitation: 10 Vdc, 15 Vdc max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5 Ohms
Accuracy Class: ±0.2% FSO
Linearity: ±0.2% FSO
Hysteresis: ±0.05% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±1% FSO
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp. Range: -54 to 107°C (-65 to 225°F)
Thermal Effects: Zero: ±0.005% FSO/°F Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: PT1H-10-6P Connection
Mating Connector: PT06F10-6S, sold separately

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
TQ302-2K	14 Weeks	¥20,105.00	Flange mount reaction torque sensor with +/- 2,000 in-lb range	qty.

PT06F10-6S		¥340.00	Mating connector (sold separately)	qty.

† Price are shown in RMB.

Ordering Example: (1) PT06F10-6S mating connector (sold separately), ¥340.00, plus (1) TQ302-2K Flange mount reaction torque sensor with +/- 2,000 in-lb range, ¥20,105.00, ¥340.00 + 20,105.00 = $20,445.00
