Reaction Torque Cells, Surface Key Mount

TQ401
CE

Reaction Torque Cells, Surface Key Mount

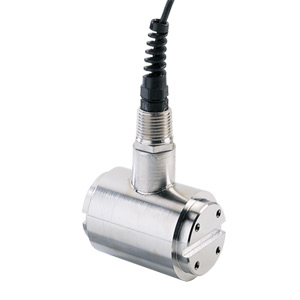

TQ401:Reaction Torque Cells, Surface Key Mount
Click for larger image.

¥ 10,935.00  TQ401-30
All Stainless Steel Case for Long Term Reliability in Industrial Environments
High Accuracy
Shielded Cable for Precise Low Noise Measurements
Heavy Duty Mounting for Positive, Non-Slip Connection

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF View a printer friendly page

SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5 Ohms
Accuracy: ±0.23% FSO
Linearity: ±0.2% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Operating Temp. Range: -54 to 107°C (-65 to 225°F)
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.005% FSO/°F
   Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 10 ft (3 m) 4-conductor color coded, shielded PVC cable with strain relief
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

 Part Number   Availability   Price(RMB)   Description    Qty.
 TQ401-30 2 Weeks   ¥10,935.00    Reaction torque sensor with surface key mount and +/- 30 ft-lb range
 TQ401-100 13 Weeks   ¥10,935.00    Reaction torque sensor with surface key mount and +/- 100 ft-lb range
 TQ401-250 13 Weeks   ¥10,935.00    Reaction torque sensor with surface key mount and +/- 250 ft-lb range
Price are shown in RMB.

 Ordering Example: (1) TQ401-30 is a reaction torque sensor with surface key mount and +/- 30 ft-lb range, ¥10,935.00
