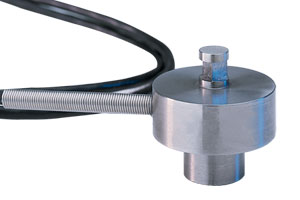

OMEGA’s TQ201/TQM201 Series comprises in-line mount reaction
torque sensors. They are designed to be mounted to the torque producing
element for measuring the starting torque of motors.
The TQM201 is also available in metric configurations, with ranges from 0-0.175 to 0-113 N-m.
Please see the TQ201 for complete details, or contact our Pressure department
for more information.
SPECIFICATIONS Output: 2 mV/V Excitation: 10 Vdc, 15V max Input Resistance: 350 Ω min Output Resistance: 350 Ω min Accuracy Class: ±0.2% FSO Linearity: ±0.15% FSO Hysteresis: ±0.10% FSO Repeatability: ±0.03% FSO Zero Balance: ±2% FSO Operating Temp Range: -54 to 107°C (-65 to 225°F) Compensated Temp Range: 16 to 71°C (60 to 160°F) Thermal Effects: Zero: ±0.005% FSO/°F Span: ±0.005% rdg/°F Safe Overload: 150% of capacity Ultimate Overload: 300% of capacity Construction: Stainless steel Protection Class: IP65 Electrical: 1.5 m (5') 4-conductor shielded PVC cable with strain relief
† Price are shown in RMB.
Note: Each unit comes complete with 5-point calibration and operator's manual. Ordering Example: (1) TQM201-0.2 Reaction torque cell with 0 to 0.20 N-m range, ¥11,240.00
