1/2 Inch(12.7mm) Diameter Heart Cross-Section - Discontinued

TS Style

Tubular Heaters

TS Style:1/2 Inch(12.7mm) Diameter Heart Cross-Section - Discontinued

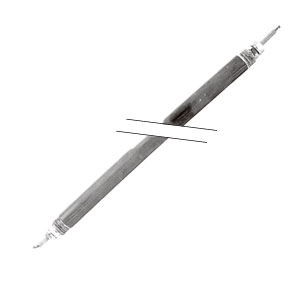

Click for larger image.

•	1.2 cm (0.5") DIAMETER • Steel Sheath • 3700 to 5300 Watts • 240 and 480 Volt • 20 W/In² • 400°C (750°F) Maximum Sheath Temperature
•	0.95 cm (0.375") DIAMETER • Steel Sheath • 225 to 3800 Watts • 120, 240 and 480 Volt • 20 W/In² • 400°C (750°F) Maximum Sheath Temperature
View related products - Tubular Heaters

The TS series has been discontinued. Please contact our Temperature Engineering department for a viable replacement.

1.2 cm (0.5") DIAMETER HEART CROSS-SECTION

APPLICATIONS
High element surface temperature clamp-on or air heating applications or where extreme rigidity is required.

ADVANTAGES
More uniform surface temperatures and resistance to deformation.

FEATURES
Type 4 Terminals: Integral parts of the element are of high strength to resist bending during tightening of the wiring connections. Type 4 is threaded extension of the cold pin. See terminal detail drawing in the Tubular Heater Overview section.

Work Temperatures: See Tubular Heater Overview section.

Bending: Customer’s minimum inside bending radius is 6.4 cm (2½"). See bending requirements in the Tubular Heater Overview section. If element is to be bent, specify “Must Be Annealed”.

Watts	Volts	W/In²	Dimensions In.(cm)		Steel Sheath Model No.	Weight kg (lb)
Watts	Volts	W/In²	Sheath A	Heated B	Steel Sheath Model No.	Weight kg (lb)
3700	240	20	284 (112)	268 (1051/2)	TS-11245/240V	1.5 (3.3)
3700	480	20	284 (112)	268 (1051/2)	TS-11245/480V	1.5 (3.3)
3800	240	20	315 (124)	298 (1171/2)	TS-12445/240V	1.5 (3.3)
3800	480	20	315 (124)	298 (1171/2)	TS-12445/480V	1.5 (3.3)
3920	240	20	330 (130)	314 (1231/2)	TS-13045/240V	1.5 (3.3)
3920	480	20	330 (130)	314 (1231/2)	TS-13045/480V	1.5 (3.3)
4075	240	20	345 (136)	329 (1291/2)	TS-13645/240V	2.0 (4.3)
4075	480	20	345 (136)	329 (1291/2)	TS-13645/480V	2.0 (4.3)
4250	240	20	360 (142)	344 (1351/2)	TS-14245/240V	2.0 (4.3)
4250	480	20	360 (142)	344 (1351/2)	TS-14245/480V	2.0 (4.3)
4450	240	20	376 (148)	359 (1411/2)	TS-14845/240V	2.0 (4.3)
4450	480	20	376 (148)	359 (1411/2)	TS-14845/480V	2.0 (4.3)
4700	240	20	396 (156)	380 (1491/2)	TS-15645/240V	2.0 (4.3)
4700	480	20	396 (156)	380 (1491/2)	TS-15645/480V	2.0 (4.3)
5000	240	20	417 (164)	400 (1571/2)	TS-16445/240V	2.0 (4.3)
5000	480	20	417 (164)	400 (1571/2)	TS-16445/480V	2.0 (4.3)
5300	240	20	437 (172)	420 (1651/2)	TS-17245/240V	2.0 (4.3)
5300	480	20	437 (172)	420 (1651/2)	TS-17245/480V	2.0 (4.3)

0.95 cm (0.375") DIAMETER HEART CROSSSECTION

APPLICATIONS
High element surface temperature clamp-on or air heating applications or where extreme rigidity is required.

ADVANTAGES
More uniform surface temperatures and resistance to deformation.

FEATURES
Type 3 Terminals: Heliarc-welded to the cold pin. See terminal detail drawing in the Tubular Heater Overview section.

Work Temperatures: See Tubular Heater Overview section.

Bending: Customer’s minimum inside bending radius is 4.8 cm (17/8"). See bending requirements in the Tubular Heater Overview section. If element is to be bent, specify “Must Be Annealed”.

Watts	Volts	W/In²	Dimensions In.(cm)		INCOLOY Sheath Model No.	Wt. (Lb)
Watts	Volts	W/In²	Sheath A	Heated B	INCOLOY Sheath Model No.	Wt. (Lb)
225	120	20	39 (16)	24 (9 1/2)	TS-1648/120V	0.2 (0.4)
250	120	20	44 (18)	28 (11 1/2)	TS-1848/120V	0.2 (0.4)
300	120	20	49 (20)	33 (13 1/2)	TS-2048/120V	0.2 (0.4)
350	120	20	54 (22)	45 (15 1/2)	TS-2248/120V	0.2 (0.4)
450	120	20	61 (25)	45 (18 1/2)	TS-2548/120V	0.2 (0.4)
500	120	20	66 (27)	50 (20 1/2)	TS-2748/120V	0.2 (0.4)
500	240	20	66 (27)	50 (20 1/2)	TS-2748/240V	0.2 (0.4)
500	120	20	69 (28)	53 (21 1/2)	TS-2848/120V	0.4 (0.8)
500	240	20	69 (28)	53 (21 1/2)	TS-2848/240V	0.4 (0.8)
550	120	20	74 (30)	57 (23 1/2)	TS-3048/120V	0.4 (0.8)
550	240	20	74 (30)	57 (23 1/2)	TS-3048/240V	0.4 (0.8)
600	120	20	78 (32)	62 (25 1/2)	TS-3248/120V	0.4 (0.8)
600	240	20	78 (32)	62 (25 1/2)	TS-3248/240V	0.4 (0.8)
650	120	20	83 (34)	67 (27 1/2)	TS-3448/120V	0.4 (0.8)
650	240	20	83 (34)	67 (27 1/2)	TS-3448/240V	0.4 (0.8)
700	120	20	88 (36)	72 (29 1/2)	TS-3648/120V	0.4 (0.8)
700	240	20	88 (36)	72 (29 1/2)	TS-3648/240V	0.4 (0.8)
750	120	20	93 (38)	77 (31 1/2)	TS-3848/120V	0.4 (0.8)
750	240	20	93 (38)	77 (31 1/2)	TS-3848/240V	0.4 (0.8)
800	120	20	98 (40)	82 (33 1/2)	TS-4048/120V	0.5 (1)
800	240	20	98 (40)	82 (33 1/2)	TS-4048/240V	0.5 (1)
850	120	20	103 (42)	87 (35 1/2)	TS-4248/120V	0.5 (1)
850	240	20	103 (42)	87 (35 1/2)	TS-4248/240V	0.5 (1)
900	120	20	108 (44)	92 (37 1/2)	TS-4448/120V	0.5 (1)
900	240	20	44 (108)	92 (37 1/2)	TS-4448/240V	0.5 (1)
950	120	20	46 (113)	97 (39 1/2)	TS-4648/120V	0.5 (1)
950	240	20	46 (113)	97 (39 1/2)	TS-4648/240V	0.5 (1)
1000	120	20	118 (48)	102 (41 1/2)	TS-4848/120V	0.5 (1)
1000	240	20	118 (48)	102 (41 1/2)	TS-4848/240V	0.5 (1)
1000	480	20	118 (48)	102 (41 1/2)	TS-4848/480V	0.5 (1)
1050	120	20	123 (50)	106 (43 1/2)	TS-5048/120V	0.5 (1)
1050	240	20	123 (50)	106 (43 1/2)	TS-5048/240V	0.5 (1)
1050	480	20	123 (50)	106 (43 1/2)	TS-5048/480V	0.5 (1)
1100	120	20	133 (54)	116 (47 1/2)	TS-5448/120V	0.6 (1.3)
1100	240	20	133 (54)	116 (47 1/2)	TS-5448/240V	0.6 (1.3)
1100	480	20	133 (54)	116 (47 1/2)	TS-5448/480V	0.6 (1.3)
1200	120	20	142 (58)	126 (51 1/2)	TS-5848/120V	0.6 (1.3)
1200	240	20	142 (58)	126 (51 1/2)	TS-5848/240V	0.6 (1.3)
1200	480	20	142 (58)	126 (51 1/2)	TS-5848/480V	0.6 (1.3)
1300	120	20	152 (62)	136 (55 1/2)	TS-6248/120V	0.6 (1.3)
1300	240	20	152 (62)	136 (55 1/2)	TS-6248/240V	0.6 (1.3)
1300	480	20	152 (62)	136 (55 1/2)	TS-6248/480V	0.6 (1.3)
1400	120	20	162 (66)	146 (59 1/2)	TS-6648/120V	0.6 (1.3)
1400	240	20	162 (66)	146 (59 1/2)	TS-6648/240V	0.6 (1.3)
1400	480	20	162 (66)	146 (59 1/2)	TS-6648/480V	0.6 (1.3)
1500	120	20	172 (70)	156 (63 1/2)	TS-7048/120V	0.6 (1.3)
1500	240	20	172 (70)	156 (63 1/2)	TS-7048/240V	0.6 (1.3)
1500	480	20	172 (70)	156 (63 1/2)	TS-7048/480V	0.6 (1.3)
1,600	120	20	191 (74)	171 (67 1/2)	TS-7448/120V	0.6 (1.3)
1,600	240	20	191 (74)	171 (67 1/2)	TS-7448/240V	0.6 (1.3)
1,600	480	20	191 (74)	171 (67 1/2)	TS-7448/480V	0.6 (1.3)
1,700	120	20	198 (78)	181 (71 1/2)	TS-7848/120V	0.8 (1.8)
1,700	240	20	198 (78)	181 (71 1/2)	TS-7848/240V	0.8 (1.8)
1,700	480	20	198 (78)	181 (71 1/2)	TS-7848/480V	0.8 (1.8)
1,800	120	20	208 (82)	185 (75 1/2)	TS-8248/120V	0.8 (1.8)
1,800	240	20	208 (82)	185 (75 1/2)	TS-8248/240V	0.8 (1.8)
1,800	480	20	208 (82)	185 (75 1/2)	TS-8248/480V	0.8 (1.8)
1,850	120	20	218 (86)	195 (79 1/2)	TS-8648/120V	0.8 (1.8)
1,850	240	20	218 (86)	195 (79 1/2)	TS-8648/240V	0.8 (1.8)
1,850	480	20	218 (86)	195 (79 1/2)	TS-8648/480V	0.8 (1.8)
1,950	120	20	228 (90)	205 (83 1/2)	TS-9048/120V	0.8 (1.8)
1,950	240	20	228 (90)	205 (83 1/2)	TS-9048/240V	0.8 (1.8)
1,950	480	20	228 (90)	205 (83 1/2)	TS-9048/480V	0.8 (1.8)
2,050	120	20	239 (94)	215 (87 1/2)	TS-9448/120V	0.8 (1.8)
2,050	240	20	239 (94)	215 (87 1/2)	TS-9448/240V	0.8 (1.8)
2,050	480	20	239 (94)	215 (87 1/2)	TS-9448/480V	0.8 (1.8)
2,150	120	20	245 (98)	225 (91 1/2)	TS-9848/120V	0.8 (1.8)
2,150	240	20	245 (98)	225 (91 1/2)	TS-9848/240V	0.8 (1.8)
2,150	480	20	245 (98)	225 (91 1/2)	TS-9848/480V	0.8 (1.8)
2,250	120	20	259 (102)	234 (95 1/2)	TS-10248/120V	1.1 (2.5)
2,250	240	20	259 (102)	234 (95 1/2)	TS-10248/240V	1.1 (2.5)
2,250	480	20	259 (102)	234 (95 1/2)	TS-10248/480V	1.1 (2.5)
2,350	240	20	269 (106)	244 (99 1/2)	TS-10648/120V	1.1 (2.5)
2,350	480	20	269 (106)	244 (99 1/2)	TS-10648/480V	1.1 (2.5)
2,500	240	20	284 (112)	258 (105 1/2)	TS-11248/240V	1.1 (2.5)
2,500	480	20	284 (112)	258 (105 1/2)	TS-11248/480V	1.1 (2.5)
2,600	240	20	300 (118)	273 (111 1/2)	TS-11848/240V	1.1 (2.5)
2,600	480	20	300 (118)	273 (111 1/2)	TS-11848/480V	1.1 (2.5)
2,750	240	20	315 (124)	289 (117 1/2)	TS-12448/240V	1.1 (2.5)
2,750	480	20	315 (124)	289 (117 1/2)	TS-12448/480V	1.1 (2.5)
2,900	240	20	330 (130)	303 (123 1/2)	TS-13048/240V	1.1 (2.5)
2,900	480	20	330 (130)	303 (123 1/2)	TS-13048/480V	1.1 (2.5)
3,050	240	20	345 (136)	317 (129 1/2)	TS-13648/240V	1.5 (3.3)
3,050	480	20	345 (136)	317 (129 1/2)	TS-13648/480V	1.5 (3.3)
3,200	240	20	360 (142)	332 (135 1/2)	TS-14248/240V	1.5 (3.3)
3,200	480	20	360 (142)	332 (135 1/2)	TS-14248/480V	1.5 (3.3)
3,350	240	20	376 (148)	347 (141 1/2)	TS-14848/240V	1.5 (3.3)
3,350	480	20	376 (148)	347 (141 1/2)	TS-14848/480V	1.5 (3.3)
3,550	240	20	396 (156)	366 (149 1/2)	TS-15648/240V	1.5 (3.3)
3,550	480	20	396 (156)	366 (149 1/2)	TS-15648/480V	1.5 (3.3)
3,700	240	20	417 (164)	386 (157 1/2)	TS-16448/240V	1.5 (3.3)
3,700	480	20	417 (164)	386 (157 1/2)	TS-16448/480V	1.5 (3.3)
3,800	240	20	172 (437)	165 1/2 (405)	TS-17248/240V	1.5 (3.3)
3,800	480	20	172 (437)	165 1/2 (405)	TS-17248/480V	1.5 (3.3)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

TS-3448/120V		Consult sales	Heater, 650 W, 120 V	qty.

TS-4848/240V		Consult sales	Heater, 1000 W, 240 V	qty.

† Price are shown in RMB.

Part Number Builder

	(1)	(2)		(3)
T T S S - -			/ /
Qty:

Option Descriptions

(1)

Sheath A

Select
16 for 16 in.
18 for 18 in.
20 for 20 in.
22 for 22 in.
25 for 25 in.
27 for 27 in.
28 for 28 in.
30 for 30 in.
32 for 32 in.
34 for 34 in.
36 for 36 in.
38 for 38 in.
40 for 40 in.
42 for 42 in.
44 for 44 in.
46 for 46 in.
48 for 48 in.
50 for 50 in.
54 for 54 in.
58 for 58 in.
62 for 62 in.
66 for 66 in.
70 for 70 in.
74 for 74 in.
78 for 78 in.
82 for 82 in.
86 for 86 in.
90 for 90 in.
94 for 94 in.
98 for 98 in.
102 for 102 in.
106 for 106 in.
112 for 112 in.
118 for 118 in.
124 for 124 in.
130 for 130 in.
136 for 136 in.
142 for 142 in.
148 for 148 in.
156 for 156 in.
164 for 164 in.
172 for 172 in.

(2)

Diameter Heart Cross-Section

Select
45 for 0.5 in
48 for 0.375 in

(3)

Voltage

Select
120V for 120 V
240V for 240 V
480V for 480 V

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
