Flanged Immersion Heaters for Boilers and Water Heaters
TTSF SERIES

Flanged Immersion Heaters for Boilers and Water Heaters

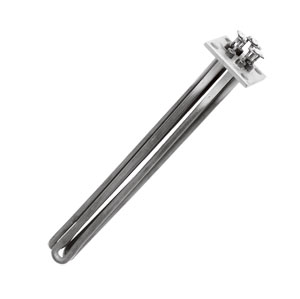

TTSF SERIES:Flanged Immersion Heaters for Boilers and Water Heaters
Click for larger image.

¥ 4,600.00  TTSF-3135/208V
• In Stock
• 21/2 Inch (6 cm) Square Steel Flange
• Premium Quality
• Rugged Construction
• U.L. Component Recognized

View related products - Immersion Heaters

Click to scroll below to order See Specs PDF View a printer friendly page

Type TTSF heaters are used in industrial water boilers and storage tanks. They feature high watt density for rapid heat transfer. The steam boiler heaters feature the highest quality, high nickel Incoloy sheath that provides the highest practical protection available against hard water containing minerals, scale and salts while resisting stress, corrosion, cracking, and sulphur attack. The water heater has a copper sheath and copper face plate. These heaters are not supplied with enclosures since they are normally mounted in boilers or tanks which have a surrounding enclosure for terminal protection.

SPECIFICATIONS
Wattage: 5 to 18 kW Power: 208 and 240 or 480VAC, 3 Phase Watt Density: 79-184 W/in2 Sheath: 0.315" dia. Incoloy (steam boiler heater) or copper (water heater).
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 TTSF-009/208V 8 Weeks   ¥5,465.00    5 kW, 208 Vac, Incoloy Sheath
 TTSF-005/208V 8 Weeks   ¥6,150.00    10 kW, 208 Vac, Incoloy Sheath
 TTSF-006/240V 8 Weeks   ¥6,150.00    10 kW, 240 Vac, Incoloy Sheath
 TTSF-007/480V 6 Weeks   ¥6,150.00    10 kW, 480 Vac, Incoloy Sheath
 TTSF-002/208V    Consult sales   15 kW, 208 Vac, Incoloy Sheath
 TTSF-003/240V 8 Weeks   ¥6,670.00    15 kW, 240 Vac, Incoloy Sheath
 TTSF-001/480V 2 Weeks   ¥6,860.00    15 kW, 480 Vac, Incoloy Sheath
 TTSF-3135/480V 8 Weeks   ¥4,600.00    13.5 kW, 480 Vac, Copper Sheath/Copper Face Plate
 TTSF-3135/208V 8 Weeks   ¥4,600.00    13.5 kW, 208 Vac, Copper Sheath/Copper Face Plate
 TTSF-3150/480V 6 Weeks   ¥7,735.00    15 kW, 480 Vac, Copper Sheath/Copper Face Plate
† Price are shown in RMB.
