2-Wire Loop Powered Display |
| TX03 |
|
 |
|
|
|
|
 |

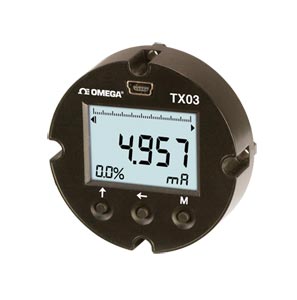

The TX03 2-wire loop powered
display is fit for all of pressure,
differential pressure, flow, PH,
temperature, acceleration and more.
The LCD backlight display can be
visible in dark environments. LCD
schedule shows the value
measured in real time, and it will
flash to alarm. The three button
feature allows the user to program
the zero, span, unit, decimal digits,
damping and alarm point. Instead of
the potentiometer, no additional
power supply is required.
SPECIFICATIONS
Technical Data Display
Type: Visible range 32.5 x 22.5 mm (1.3 x 0.9"); 5-digit, 7 segment main display, digit height 8 mm (0.3"), 8-digit 14-segment add display, digit height 5 mm (0.2"); 52 bars meter with 2% resolution
Range: -1.9.9.9.9. to 9.9.9.9.9.
Accuracy: 0.1% ±1 digit
Digital Damping: 0 to 100 s (step 0.1 s)
Units: mA, us, ms, s, pH, psi, MPa, bar, KPa, mbar, Pa, % Supply
Supply: Not required, 4 to 20 mA loop powered
Voltage Drop: ≤3.5V, LCD can work on 3 mA
Electrical Protection
Short-Circuit Protection: Permanent
Reverse Polarity Protection: Max current approx 200 mA
Ambient Temperatures
Operating: -20 to 70°C (-4 to 158°F)
Storage: -30 to 85°C (-22 to 185°F)
Display Housing: ABS
Weight: Approx 28 g (0.99 oz)
Ingress Protection: IP65 (when mounted)
Color of Housing: Black
Dimensions: 54 H x 8.3 mm D (2.13 x 0.32")
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with a operator’s manual.
|
|
|
|
|
| |
|
