Field Rangeable Miniature 2-Wire Transmitters, Isolated Models Available

TX901, TX903, TX904 and TX905

2 Wire Transmitters

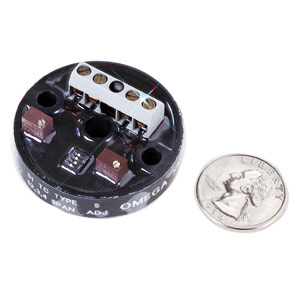

Click for larger image.

^¥ 3,055.00 TX901

•	Thermocouple, RTD and Millivolt Input Models
•	Compact Size, Only 3/4" High (Non-Isolated) and 1.15" High (Isolated) Including Barrier Strip
•	4-20 mA Output
•	±0.1% FS Accuracy
•	TX903 Isolated Model (Other Models Non-Isolated)
•	Mounts in Protection Head
View related products - Temperature Transmitters

Please check out Newest Released 2-wire Transmitters with Standard, FM & Hart Models Available TXUN Series for more advanced features with better price.

TX900 Series transmitters feature dip switch selection of input type and range. The following models are available: TX901 (non-isolated, accepts J, K,T, E, R or S thermocouples); TX903 (isolated, accepts J, K, T, E, R or S thermocouples; TX904 (non-isolated, accepts 100 ohm Pt RTD’s 2- or 3- wire); TX905 (non-isolated, millivolt input).

For complete product specifications see the Related Links section at the bottom of this page.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
TX901	2 Weeks	¥3,055.00	J, K, T, E, R, S thermocouple input, non-isolated	qty.

TX903	2 Weeks	¥5,245.00	J, K, T, E, R, S thermocouple input, isolated	qty.

TX904-1	2 Weeks	¥3,055.00	100 ohm Pt RTD input (a = 0.00385), non-isolated Range: 0 to 260°C (0 to 500°F)	qty.

TX904-2	9 Weeks	¥3,115.00	100 ohm Pt RTD input (a = 0.00385), non-isolated Range: 0 to 538°C (0 to 1000°F)	qty.

TX905	2 Weeks	¥2,280.00	Millivolt input, non-isolated	qty.

PRTX904-1		Consult sales	PR-12 RTD probe, 12" L, 1/4" OD, 304 SS sheath, with TX904-1 transmitter, Range -150°C to 500°C	qty.

PRTX904-2		Consult sales	PR-12 RTD probe, 12" L, 1/4" OD, 304 SS sheath, with TX904-2 transmitter, Range 300°C to 1000°C	qty.

NB1TX901-(*)		Consult sales	NB1 thermocouple probe 12 inch L 1/4 inch OD ungrounded junction 304 SS sheath with TX901 non-isolated transmitter * Place the thermocouple type (J,K,T,E,R or S) in the Special Instructions field in the last step of the Ordering Process	qty.

NB1TX903-(*)		Consult sales	NB1 thermocouple probe 12 inch L 1/4 inch OD ungrounded junction 304 SS sheath with TX903 isolated transmitter * Place the thermocouple type (J,K,T,E,R or S) in the Special Instructions field in the last step of the Ordering Process	qty.

TX-SCALED		Consult sales	Scaling charge	qty.

† Price are shown in RMB.

Note: Thermocouple or RTD input simulation required to scale output for a particular range. To order unit scaled by OMEGA specify input type, low end of range, high end of range and °F or °C. Specify: TX-SCALED, $45.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) TX901 Non-isolated thermocouple transmitter, ¥3,055.00

Related Links - Manual, Related Products

Product Manual

Download TX905 Series - Field Rangeable Voltage Input Two-Wire Transmitter

Download TX904 - Field Rangeable RTD Two-Wire Temperature Transmitter

Download TX901 and TX903 Series - 2 Wire Temperature Transmitters
