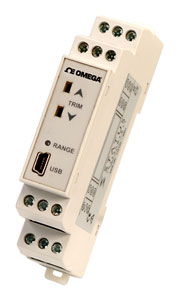

Universal DIN Rail Transmitter |
| TXDIN1600 Series |
|
 |
|
|
|
|
|
|
|
| • |
Simple Configuration Via USB Port
|
| • |
Universal Pt100, Thermocouple, mV, mA Input
|
| • |
Isolated Input
|
| • |
Push Button User Trim (TXDIN1610 and TXDIN1620)
|
| • |
4 to 20 mA, 2-Wire Output (TXDIN1610)
|
| • |
3-Wire Isolated Voltage Output (TXDIN1620)
|
| • |
Dual Relay Outputs 250 Vac 1 Amp (TXDIN1630)
|
| • |
Relay Isolated From Each Other (TXDIN1630)
|
View related products - Temperature Transmitters
|
| |
|
|
|
 |
The TXDIN1600 Series is a new
generation DIN rail mounted
temperature transmitter. It has been
designed to accept most common
process and temperature sensor
inputs and provide the user with a
standard two wire 4 to 20 mA output
signal. Isolation is provided between
input and output and all temperature
ranges are linear to temperature.
Designed for ease of use, our latest
USB interface is fitted for quick and
easy configuration. Just connect a
standard USB cable between the
TXDIN1600 and your PC. Using our
free configuration software, your PC
will automatically upload the existing
configuration data and guide you
through any changes you wish to
make. To further help save time, the
TXDIN1600 does not need to be
wired to a power supply during the
configuration process, it is powered
via the USB interface from your PC.
The TXDIN1600 is also provided
with user push button trim, allowing
trim adjustments at both 4 mA and
20 mA. The user trim function can
be locked during configuration if not
required. The range led indicates
out of range input during normal
operation, during user trim it is used
to indicate the stage of trim.
SPECIFICATIONS
Isolation: Input to output tested at 500 Vdc
Ambient: Operating -20 to 70°C (-4 to 158°F) 10 to 95% RH non-condensing
Storage: -40 to 85°C (-40 to 185°F)
Approvals: CE tested to BS EN 61326
Dimensions: 17.5 W x 56.4 L x 90 mm H (0.7 x 2.2 x 3.5")
Material: Polmide 6.6
Self Extinguishing Terminals: Screw terminal
Cable: 2.5 mm (0.1") max
Color: Gray Output
TXDIN1610
Type: 2-wire current sink; signal range 4 to 20 mA; full range 3.8 to 24 mA
Supply: 11 to 30 Vdc, 24V nominal giving max loop load of 600 R @ 24V
Response Time: <500 ms to reach 95% of final value; start up time <3 s
Calibration Accuracy: ±5 uA
Loop Effects: Loop ripple 0.03% of FSR; supply sensitivity 0.05 uA/°C; supply ripple rejection <±5 uA error @ 1V rms 50 Hz ripple
Protection: Reverse connection and over-voltage protection, max over voltage current 100 mA
User Trim: Raise and lower buttons, active for offset when output is between 3.8 to 6 mA, span between 18 to 22 mA, trim lock option
TXDIN1620
Type: 3-wire voltage output with
programmable ranges: 0 to 10, 0 to 5, 2 to 10, 1 to 5, and 0 to 1V
Supply: 15 to 28 Vdc
Response Time: <500 ms to reach 95% of final value; start up time <3 s
Calibration Accuracy: ±5 mV
Output Drive: 2 mA driving 5 KΩ @ 10V
Protection: Reverse connection and over-voltage protection, max over voltage current 100 mA
User Trim: Raise and lower buttons, active for offset when output is at offset and span, trim lock option
TXDIN1630
Type: Dual form C relay contacts
Supply: 24 Vdc ±5% @ 40 mA max
Response Time: <500 ms to reach 95% of final value; start up time <3 s
Contact Rating: 250 Vac rms @ 1 A; 30 Vdc @ 1 A resistive load
Trip Type: Individual trips A and B may be set at high or low level, full range setpoint plus adjustable
Ranges: Setpoint programmed on units, covering full range of input
Hysteresis: Set in units
Protection: Reverse connection and over-voltage protection, max over voltage current 100 mA
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with operator’s manual.
|
|
|
|
|
| |
|
