Dual DIN Rail Temperature Transmitter |
| TXDIN70 |
|
 |
|
|

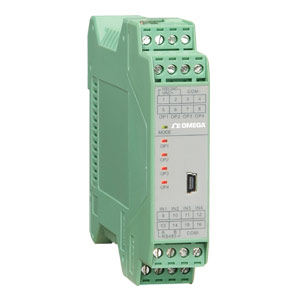

Dual DIN Rail Temperature Transmitter
 |
| Click for larger image. |
|
|
¥
1,425.00
TXDIN70
|
| • |
Provides Two-Channel Transmitters or Signal Isolators (4 to 20 or 0 to 20 mA)
|
| • |
Programmable Input Types and Ranges with the Optional External Display (required to program unit- model number is TXDIN70-DISPLAY)
|
| • |
DIN Rail Mounted
|
| • |
Inputs are not isolated- Only use UNGROUNDED thermocouple sensors
|
| • |
Universal Power Supply
|
| • |
For thermocouples and RTD: Unit displays deg C only
|
View related products - Temperature Transmitters
|
| |
|
|
|
 |
It provides 2 channels of
configurable inputs, and
supports multiple voltage, RTD,
thermocouple inputs with auto
reference junction compensation.
If parallel connected to an external
precise resistance, it accepts
current signal input. Each channel
has its own digital filtering and can
adjust its filtering degree.- It generates two isolated current
outputs, 4 to 20 or 0 to 20 mA.
The range of retransmission
output can be freely defined.
- The model is DIN rail mounted.
Its width is only 22.5 mm.
The instrument can be easily
configured by connecting to
our E8 handset display.
- Universal power supply of
100 to 240 Vac or 24 Vdc.
SPECIFICATIONS
Input Type
Thermocouple: K, J, T, E, R, S, B, N WRe5-WRe26
RTD: Pt100, Cu50
Linear Voltage: 0 to 20 mV, 0 to
60 mV, 0 to 100 mV, 0 to 1V, 0.2 to
1V
Instrument Input Range
K(-50 to 1300°C), S(-50 to 1700°C), R(-50 to 1700°C), T(-200 to 350°C), E(0 to 1000°C), J(0 to 1200°C), B(0 to 1800°C), N(-50 to 1300°C), WRe5%WRe26(0 to 2300°C), Pt100(-200 to 900°C)
Linear Input: -9990 to 30,000 units defined by user
Retransmission Accuracy: 0.3% FS ±1 digit (including input and output error)
Output Specification: Can be freely defined in the range of 0 to 22 mA with maximum output voltage ≥11V
Temperature Drift: ≥0.015%FS/°C
(including the temperature drift of
input and output)
Electromagnetic Compatibility (EMC): ±4 KV/5 KHz according to
IEC61000-4-4 (EFT); 4 KV
according to IEC61000-4-5
Isolation Withstanding Voltage:
Voltage between power, signal input
and output terminals ≥2300 Vdc;
Power Supply: 100 to 240 Vac, -15%,
+10% /50 to 60 Hz; or 24VDC
Power Consumption: ≥3W
Operating Ambient: Temperature
-10 to 60°C; humidity ≥90%RH
Note: B thermocouple obtains the above
measurement accuracy only at the range of
400 to 1800°C. It's measurement from 60 to
400°C is less accurate.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with complete operator's manual.
Ordering Example: (1) TXDIN70 DIN rail temperature transmitter, ¥1,425.00, plus (1) TXDIN70-DISPLAY Plug-in display, ¥475.00, ¥1,425.00 + 475.00 = $1,900.00
|
|
|
|
|
| |
|
