Wireless Process Transmitter for Sensors with Voltage or Current Output |
| UWPC-2-NEMA |
|
 |
|
|
|
|
 |

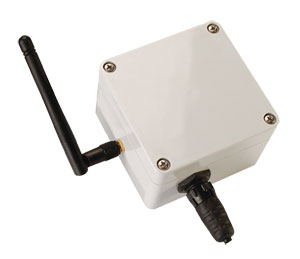

The new UWPC wireless process
transmitter converts standard process
signals (0 to 1V, 0 to 5V, 0 to 10V and
4 to 20 mA) into a wireless signal that
can be transmitted up to 120 m (400'),
eliminating the need for wiring runs in
a variety of environments. The
wireless transmitter is housed in a
NEMA 4X (IP65) enclosure, providing
water and dust protection. The UWPC
transmits data at preset intervals,
selectable from 2 to 120 seconds.
Transmitted data includes the sensor
reading, along with RF signal
strength and battery status.
The UWPC is compatible with the
UWTC-REC family of wireless
receivers, which can accept signals
from up to 48 wireless transmitters,
and display them on a PC. Receivers
are available with optional display and
analog output. An analog output can
be used to interface with a process
controller, PLC or data acquisition
device. Each unit includes free software
that converts your PC into a
monitor, chart recorder or data
logger. Readings can be saved
and later printed or exported to
a spreadsheet file.
Wireless Receivers
UWTC-REC1: 48-channel wireless receiver with USB
UWTC-REC2: 48-channel wireless receiver with USB and single analog output
UWTC-REC4: 48-channel DIN rail mount wireless receiver with USB and four analog output signals
SPECIFICATIONS
Input Range: 0 to 1 Vdc, 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA
Accuracy: ±0.04% of range
Input Connection: Panel connector (mating connector supplied)
Computer Interface: USB, for initial transmitter/sensor setup and configuration
Transmit Sample Rate: Programmable from 1 sample/2 sec to 1 sample/120 sec
Radio Frequency (RF) Transceiver Carrier: ISM 2.4 GHz, direct sequence spread spectrum
RF Output Power: 10 dBm (10 mW)
Range of RF Link:
Outdoor Line of Sight: Up to 120 m (400')
Indoor/urban: Up to 40 m (130')
RF Data Packet Standard: IEEE 802.15.4, open communication architecture
Software (Included Free): Requires Windows® 2000, XP or Vista (32 bit) operating system
Power: One 3.6V, lithium "C" cell (included)
Battery Life (Typical): 3 years 1 sample/minute reading rate @ 25°C
Enclosure: NEMA 4 (IP65), polycarbonate
Enclosure Dimensions: 80 L x 82 mm W (3.15 x 3.23")
Weight: 272 g (9.6 oz)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Because of transmission frequency regulations, these products may only be used in the United States, Canada and Europe (please note CE compliance of the specific model for use in Europe).
Comes complete with measurement/data logging software, lithium "C" cell battery, USB cable, and operator's manual.
Ordering Example: (1) UWPC-2-NEMA wireless process input transmitter, ¥4,785.00, plus (1) UWTC-REC1 48-channel wireless receiver, with USB communications, ¥4,110.00, ¥4,785.00 + 4,110.00 = $8,895.00
|
|
|
|
|
| |
|
