Weather Resistant Temperature-to-Wireless Transmitters For Thermocouples |
| UWTC-2A-NEMA Series |
|
 |
|
|
|
|
 |

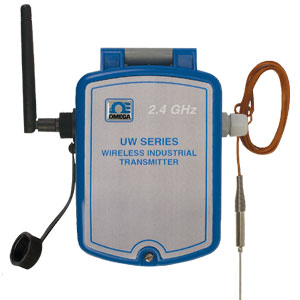

The new OMEGA™ weather
resistant temperature-to-wireless
transmitters are weather-resistant,
battery-powered transmitters
that transmit their readings back
to a host receiver up to 120 m
(400') away. UWTC units can
be programmed for any of 9
thermocouple calibrations. The
UWTC will transmit the measured
and ambient temperatures, along
with RF signal strength and battery
condition to a remote host, such as
the UWTC-REC Series. You can
program the UWTC to transmit your
data at rates from 2 sec to 2 min.
Data received by the UWTC-REC
can be received and displayed
on your computer, using the TC
Central software included with eachcompatible receiver. TC Central
software can turn your PC into a
strip chart recorder or data logger
so readings can be saved and
later printed or exported to a
spreadsheet file.
Specifications
Available Thermocouple Input Types: J, K, T, E, R, S, B, C or N
Thermocouple Measurement Range:
J: -100 to 760°C (-148 to 1400°F)
K: -100 to 1260°C (-148 to 2300°F)
T: -200 to 400°C (-328 to 752°F)
E: -200 to 1000°C (-328 to 1832°F)
R: 260 to 1760°C (500 to 3200°F)
S: 260 to 1760°C (500 to 3200°F)
B: 870 to 1820°C (1598 to 3308°F)
C: 0 to 2315°C (32 to 4200°F)
N: -100 to 1260°C (-148 to 2300°F)
Accuracy:
J, K: ±0.5% of reading or ±1.0°C (1.8°F), whichever is greater
T, E, N: ±0.5% of reading or ±2.0°C (3.6°F), whichever is greater
R, S, B, C: ±0.5% of full scale
Resolution: 1°C/1°F
Cold Junction Compensation (Automatic): -10 to 70°C (14 to 158°F)
Sensor Connection: Internal connection block
Operating Environment: -10 to 70°C (14 to 158°F)
Transmit Sample Rate: Programmable from 2 sec to 2 min
Radio Frequency (RF) transceiver Carrier: ISM 2.4 GHz, direct sequence spread spectrum
RF Output Power: 10 dBm (10 mW)
Range of RF Link:
Outdoor Line of Sight: Up to 120 m (400')
Indoor/urban: Up to 40 m (130’)
RF Data Packet Standard: IEEE 802.15.4, open communication architecture
Power: One 3.6V, lithium “C” cell battery (included)
Battery Life (Typical): 3 years at 1 sample/minute reading rate @ 25°C
Enclosure: NEMA 4X (IP65) Polycarbonate
Dimensions: 145.8 L x 94.7 W x 50.8 mm H (5.74 x 3.73 x 2")
|
|
|
|
|
|
† Price are shown in RMB.
Note: Because of transmission frequency regulations, these products may only be used in the United States, Canada, Europe, China and Singapore.
Comes complete with antenna, 3.6V “C” battery, and operator’s manual.
Please see PDF for additional receivers and accessories.
Ordering Example: (1) UWTC-2A-NEMA Weather resistant thermocouple-to-wireless transmitter with NEMA enclosure, ¥3,985.00, plus (1) UWTC-REC1 USB powered 48-channel transmitter receiver, ¥4,110.00, ¥3,985.00 + 4,110.00 = $8,095.00
|
|
|
|
|
| |
|
